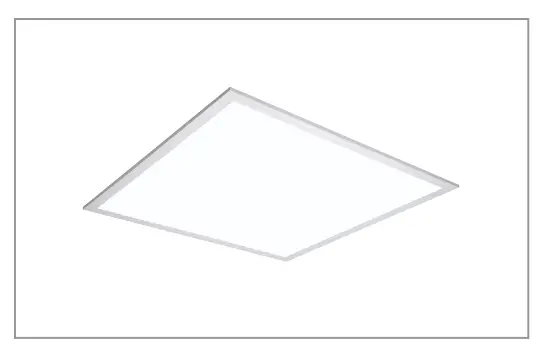

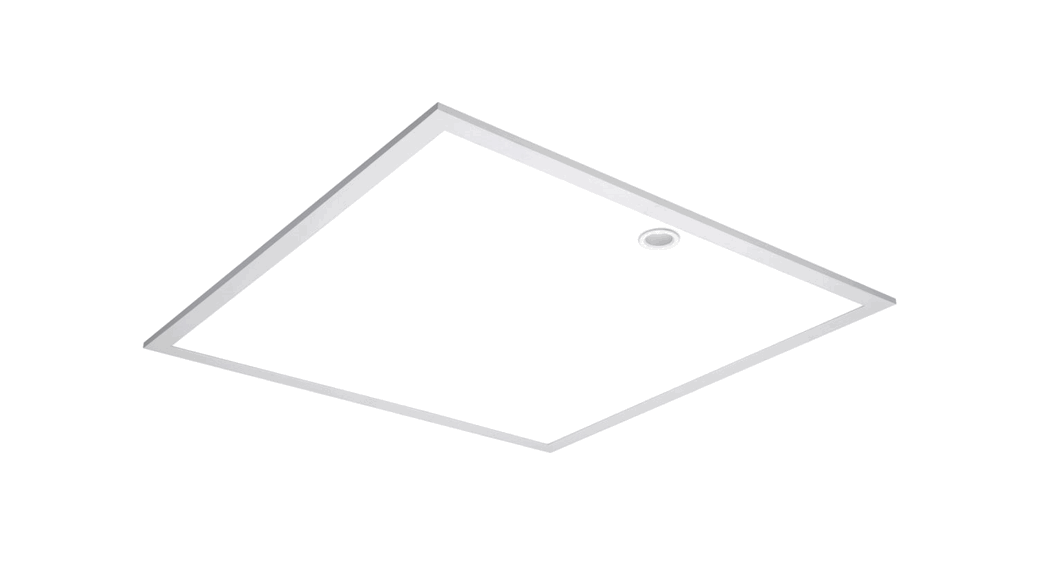

COOPER LIGHTING Metalux 22FP 2′ x 2′ Edge Lit Panel
- Order Information page 2
- Photometric Data page 4
- Product Warranty
Features
- 2″ height ideal for shallow plenums
- Low wattage to high lumen output available
- High efficacy to 130 LPW
- Multiple stock SKUs
- Large j-box with multiple KOs to facilitate installation
Product Certification
Product Features

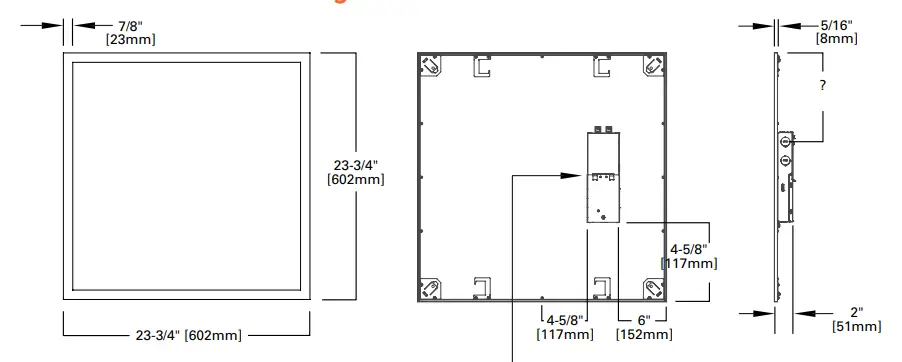

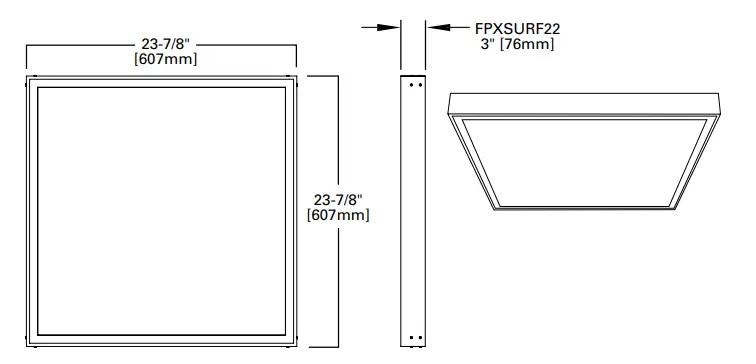

Dimensional and Mounting Details
Ordering Information/Performance
UNV (120-277
| Input Current (A) | ||||||||
| Catalog | UPC | CCT | CRI (Min) | Delivered Nominal Lumens | Watts | Efficacy (lm/W) | 120V | 277V |
| 22FP4235C | 080083833580 | 3500K | 80 | 4330 | 38.3 | 112 | .32 | .14 |
| 22FP4240C | 080083833603 | 4000K | 80 | 4465 | 38.3 | 117 | ||
| 22FP4250C | 080083833627 | 5000K | 80 | 4572 | 41.4 | 120 | .35 | .15 |
| 22FP3235C | 080083833528 | 3500K | 80 | 3307 | 29.2 | 115 | .24 | .11 |
| 22FP3240C | 080083833542 | 4000K | 80 | 3333 | 29.2 | 114 | ||
| 22FP3250C | 080083833566 | 5000K | 80 | 3331 | 30.0 | 111 | .25 | |
| 22FP3830C9 | 080083833801 | 3000K | 90 | 3654 | 39.1 | 93 | .34 | .15 |
| 22FP2830C9 | 080083833788 | 3000K | 90 | 2734 | 29.5 | 93 | .26 | .11 |
| 22FP2535HE | 080083824090 | 3500K | 80 | 2610 | 20.1 | 130 | .17 | .07 |
| 22FP2540HE | 080083824113 | 4000K | 80 | 2551 | 19.6 | 130 | ||
| 22FP2130C | 080083823994 | 3000K | 80 | 2318 | 20.7 | 112 | .18 | .08 |
| 22FP2135C | 080083824014 | 3500K | 80 | 2205 | 20.7 | 107 | ||
| 22FP2140C | 080083824038 | 4000K | 80 | 2494 | 20.7 | 121 | ||
| 347V | ||||||||
| 22FP4235C-347V (3) | 80083885480 | 3500K | 80 | 4330 | 37.3 | 116 | .111 | |
Options
| Catalog | Description | Example | Notes |
| EL7W (1) | 7W EM Pack, Installed | 22FP4240C-EL7W | Remote Indicator/Test Switch |
| EL10W (1) | 10W EM Pack, Installed | 22FP2635C-EL10W | Remote Indicator/Test Switch |
| EL14W (1) | 14W EM Pack, Installed | 22FP2635C-EL14W | Remote Indicator/Test Switch |
| A3/8-4/18GDIM | 6′ Length, 3/8″ Cable, 2 Wire, 2 Dimming Leads, Ground | 22FP3235C-A3/8-4/18G DIM | |
| A3/8-5/18GDIM | 6′ Length, 3/8″ Cable, 3 Wire, 2 Dimming Leads, Ground | 22FP4235C-A3/8-5/18G DIM | |
| EL7W-A3/8-5/18GDIM | 7W EM Pack, Installed, and 6′ Flex, 3/8″ Cable, 3 Wire, 2 Dimming Leads, Ground | 22FP3250C-EL14W-A3/8-5/18GDIM 22FP3250C-EL7W-A3/8-4/18GDIM | EL7W and EL14W can be used with any of the optional flex. EM pack is always specified before (to the left of) the flex, in the catalog number. |
| ATW-SW4 | Chicago Rated | ATW-SW4-22FP2135C | May not be used with EL7W, EL14W, or flex. ATW- SW4 provides IP5X rating from above the fixture also, accomplished with gasket on the j-box. |
Notes: (1) Factory installed with integral test switch/indicator/laser test. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation available. Battery option increases total height by 1 inch.
Product Specifications
Construction
- Narrow aluminum bezel is tightly held to code gauge steel back plate
- Seamless corners to maximize the light emitting surface with a refined finish
Mounting
- Integral grid locking clips and separate suspension clips provided for installation flexibility when additional retention isrequired
- Junction box constructed of code gauge galvanized steel with and easy access hinged door
- Multiple Trade size KO provided and JBox is suitable for up to 12AWG wiring
- Stock luminaire is less than 2″ for use in shallow plenum or low ceiling spaces
- Surface mounting available with surface mount kits
- 2×2 can mount directly with suspension kits- all other model sizes must use surface mount kits and suspension kits
- ATW-SW4 option is available for CCEA compliance and provides full IP5X rating
- Factory installed flexible cable with dimming leads options available
Warranty
- Five year
Controls
- Standard UNV 120 – 277V driver with 0-10V dimming to 10% standard
- Compatible with field installed wireless controls available for either Wavelinx or Enlighted
Electrical
- Standard and High Efficacy models available
- LED’s available in 3000K, 3500K, 4000K, and 5000K with a minimum of 80 CRI
- 90 CRI available with 3000K
- Projected lumen maintenance based on TM21 testing standards is L73 > 60,000 hours
Optical Shielding
- Light guide with specialized features to optimize light extraction
- White frost lens with smooth pattern for uniform illumination
- Scratch and impact resistant
Compliance
- Indoor luminaires are cULus listed for 25C ambient environments
- IC rated for direct insulation contact
- RoHS compliant
- Damp location listed
- IESNA LM-79 and LM-80 standards compliant
- DesignLights Consortium® Qualified and classified for DLC Standard, refer to designlights.org for details.
- Can be used for State of California Title 24 high efficacy luminaire
- IP5X rated
Emergency Options
- 120V-277V integral emergency battery pack comes in 7-watts, 10-watt, or 14-watts
- Constant power to the LED system for controlled, predictable discharge
- Integrated test switch/indicator light visible from floor
- 90-minute backup period for code compliance
- Integral emergency transfer relay available for generator equipped power systems
Load Data (Stock Product)
| Thd | 14% |
| Power Factor | 0.96 |
| Weight | 9.4 lbs |
| Low Temp. Start | -20ºC |
Shipping Data
| Fixture Size | Wt. | Pallet Size | Units per Pallet |
| 2′ x 2′ | 12 lbs. | 53″ x 30″ | 44 |
Ceiling Retention
| Catalog | UPC |
| FPEQ | 080083802685 |
| Required by some local codes. Order one set for each fixture (Four clips per kit) | |
Accessories/Ordering Information
Surface Mount Kit
| Catalog | UPC |
| FPXSURF22 (1), (2) | 080083867387 |
| FPSURF22 (3) | 080083802722 |
| Notes : (1) FPXSURF22 surface mount kit is deep enough to fit all available options. (2) Recommend specifying FPXSURF22 from availability perspective; and it can be used with all FP product options. (3) FPSURF14 surface mount kit may not be used with EL7W or EL14W options. | |
Drywall Frame Kit
| Catalog | UPC |
| DF-22W-U | 662401232963 |
Suspension Kit
| Catalog | UPC | Description |
| FPSUS2 | 080083802784 | 2 point Y-hanger suspension kit includes aircraft cable, carabiner, ceiling connection, SO cord, cord connectors and round 4″ J-box cover plate |
| Mounting height from ceiling Min.=7-1/4″ [184mm] Max.=27″ [286mm] | ||
Photometric Data
22FP3240C
Electronic Driver Linear LED 4000K
Spacing criterion: (II) 1.25 x mounting height, (^) 1.26 x mounting height
Lumens: 3333 Input Watts: 29.2W Efficacy: 114.1 LPW
Test Report: 22FP3240C.IES
22FP4240C
Electronic Driver Linear LED 4000K
Spacing criterion: (II) 1.25 x mounting height, (^) 1.26 x mounting height
Lumens: 4465 Input Watts: 38.3W Efficacy: 116.6 LPW
Test Report: 22FP4240C.IES
22FP2540HE
Electronic Driver Linear LED 4000K
Spacing criterion: (II) 1.25 x mounting height, (^) 1.26 x mounting height
Lumens: 2551 Input Watts: 19.6W Efficacy: 130.2 LPW
Test Report: 22FP2540HE.IES
Cooper Lighting Solutions 1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800
www.cooperlighting.com
© 2023 Cooper Lighting Solutions All Rights Reserved.
Specifications and dimensions subject to change without notice.
Metlaux
2′ x 2′ Edge Lit Panel
Recessed
Suspended/Surface
Typical Applications
• Commercial Office • Schools • Healthcare • Retail
