MEAN WELL NPB-120 120W Compact Size and Wide Output Range Charger Instructions

Features

90~264Vac universal AC input, built-in PFC
Charger for compatible with lead-acid and Ii-ion batteries
Fan less design
Wide adjustable output range by VR:
Charging voltage adjustable(1 0.5~ 15.2V, 21 ~30.4 V, 42~60.8V
Charging current adjustable(50~100% rated current
2 or 3 stage selectable by DIP S.W
No load power consumption< 0.15W(AC S.W off)
-30°C ~+ 70°C wide operating temperature
Protections: Short circuit/ Over voltage /Over temperature/
Battery reverse polarity protection
Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification
Front panel LED indicator for charging status
3 years warranty

Applications

Radio system backup solution
Electric scooter charger
Camping car, Buses, Heavy duty truck, Specialty vehicles
Surveillance system
Portable power tools

Description

NPB-120 series is a 120W charger for compatible with lead-acid (Flooded, Gel, AGM) and li-ion(Lithium iron, lithium manganese) batteries. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control. The entire series supplies different models with output voltages ranging between 10.5VDC and 60.8VDC that can satisfy the demands for various types of batteries devices.

Model Encoding

Type	Output Connector	Safety	Note
XLR	3 pin power pin	(48V UL certificated same as TB Type)	In Stock

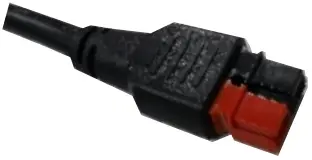

AD1	Anderson connector		In Stock
TB	Terminal Block		In Stock

SPECIFICATION

MODEL			NPB-120-12□	NPB-120-24 □	NPB-120-48 □
			□ =XLR, AD1, TB
OUTPUT	BOOST CHARGE VOLTAGE(V boost) default)		14.4V	28.BV	57.6V
	FLOAT CHARGE VOLTAGE(V float)l default)		13.BV	27.6V	55.2V
	VOLTAGE ADJUSTABLE RANGE		10.5-15.2V	21 – 30.4V	42 – 60.8V
	OUTPUT CURRENT(Typ.) Note.5		6.8A	4A	2A
	CURRENT ADJUSTABLE RANGE		50% -100%
	MAX. POWER Note.3		103.4W	121.6W	121.6W
	RECOMMENDED BATTERY CAPACITY (AMP HOURS) Note.4		20 – 90AH	15 – 50AH	7- 25AH
INPUT	VOLTAGE RANGE Note.5		90 – 264VAC 127- 370VDC
	FREQUENCY RANGE		47 – 63Hz
	POWER FACTOR (Typ.)		PF>0 .98/115VAC, PF>0 .92/230VAC@12V,PF>0.93/230VAC@24/48V at full load
	EFFICIENCY (Typ.)	XLR	86.5%	89%	90.5%
		AD1	86.5%	89%	90.5%
		TB	87%	89.5%	90.5%
	AC CURRENT (Typ.)		1.5A/115VAC 0.8A/230VAC
	INRUSH CURRENT (Typ.)		COLD START 55A at 230VAC
PROTECTION	SHORT CIRCUIT Note .6		Protection type : Constant current limiting , charger will shutdown after 5 sec, re-power on to recover
	OVER VOLTAGE		16- 20V	32-40V	64- 75V
			Protection type : Shut down and latch off o/p voltage , re-power on to recover
	REVERSE POLARITY		By internal fuse open
	OVER TEMPERATURE		Hiccup mode, recovers automatically after temperature goes down
FUNCTION	CHARGING CURVE		2 or 3 stage adjustable by DIP S.W
ENVIRONMENT	WORKING TEMP.		-30 – +70°C (Refer to “Derating Curve”)
	WORKING HUMIDITY		20 – 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 – +85°C, 1 0 – 95% RH non-condensing
	TEMP. COEFFICIENT		±0.05%/°C (0 – 45°C)
	VIBRATION		10-500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC (Note 7)	SAFETY STANDARDS		CB IEC62368-1 ,IEC60335-1/2-29, Dekra BS EN/EN62368-1 ,BS EN/EN60335-1/2-29, UL62368-1 , EAC TP TC 004 approved
	WITHSTAND VOLTAGE		I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, 1 /P-FG , O/P-FG:100M Ohms/ 500VDC / 25°C/ 70% RH
	EMC EMISSION		Parameter	Standard	Test Level I Note
			Conducted	BS ENIEN55032 (CISPR32),BS EN/EN55014-1	Class B
			Radiated	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
			Harmonic Current	BS ENIEN61000-3-2	Class A
			Voltage Flicker	BS ENIEN61000-3-3	—–
	EMC IMMUNITY		BS EN/EN55014-2,BS ENIEN55024,BS EN/EN55035
			Parameter	Standard	Test Level I Note
			ESD	BS ENIEN61000-4-2	Level 3, 8KV air ; Level 2, 4KV contact
			Radiated	BS EN/EN61000-4-3	Level 2, 3V/m
			EFT/ Burst	BS ENIEN61000-4-4	Level 2, 1KV
			Surge	BS ENIEN61000-4-5	Level 2, 1KV/L ine- Line. Level 3, 2KV/Line-Earth
			Conducted	BS EN/EN61000-4-6	Level 2, 3Vrms
			Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m
			Voltage Dips and Interruptions	BS ENIEN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS	MTBF		631.BK hrs min. Telcordia TRISR-332 (Bellcore); 225.BK hrs min. MIL-HDBK-217F (25′ C)
	DIMENSION		180’96’49mm (L’W’H)
	PACKING		1.3Kg; 1Opes/ 14Kg / 1.13CUFT
NOTE	Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. Refer to derating curve. This is MEAN WELL’s suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation. Derating may be needed under low input voltages. Please check the derating curve for more details. This protection mechanism is specified for the case the short circuit oocurs after the charger is turned on. The charger is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http//www.meanwell.com) Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.corn/serviceDisclaimer.aspx

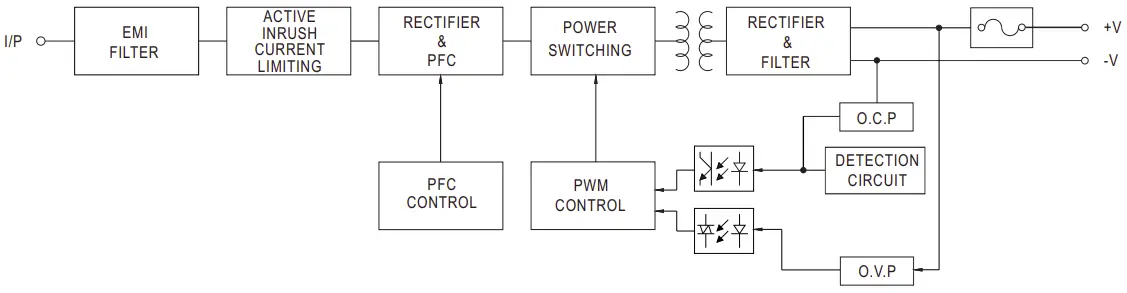

Block Diagram

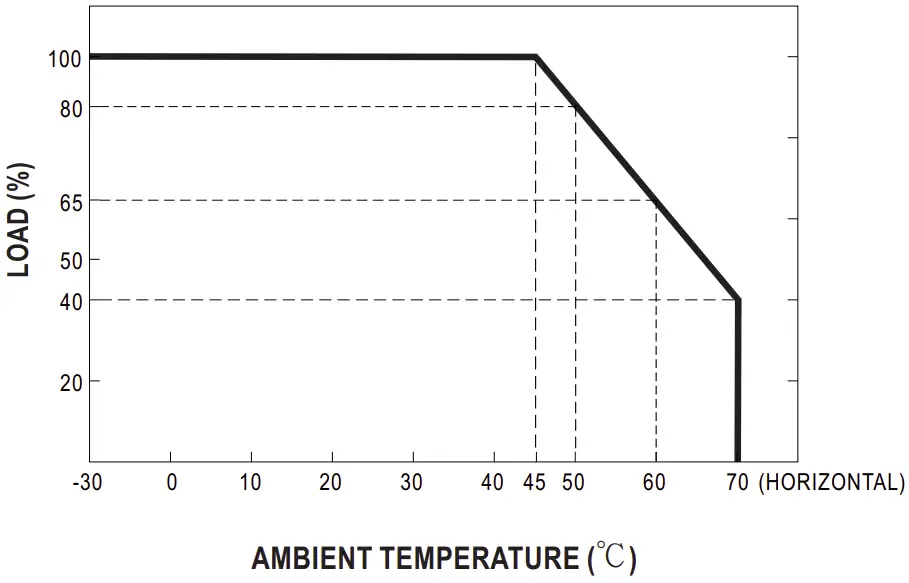

Derating Curve

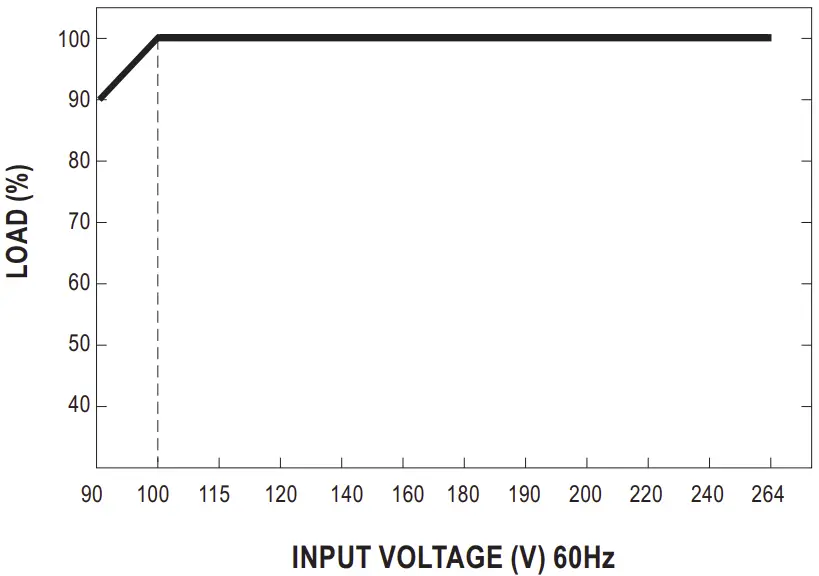

Static Characteristics

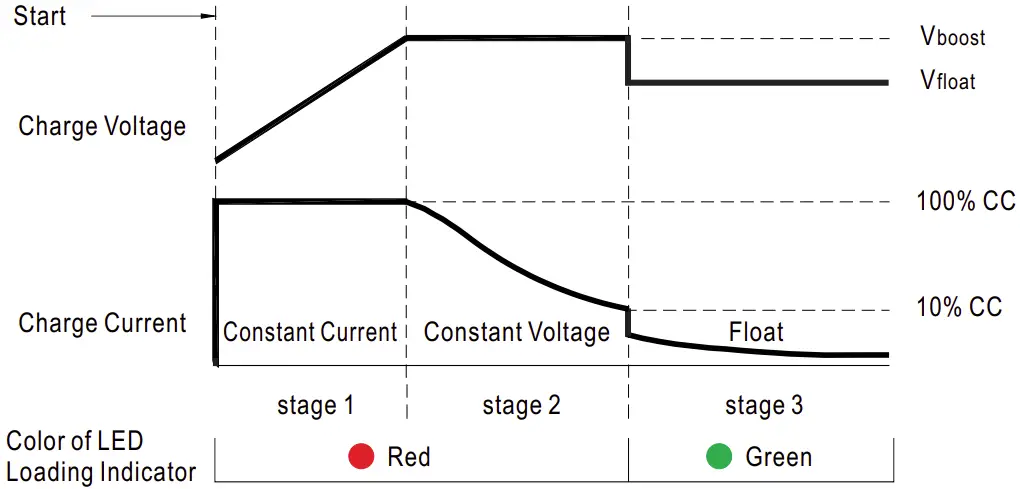

Charging Curve

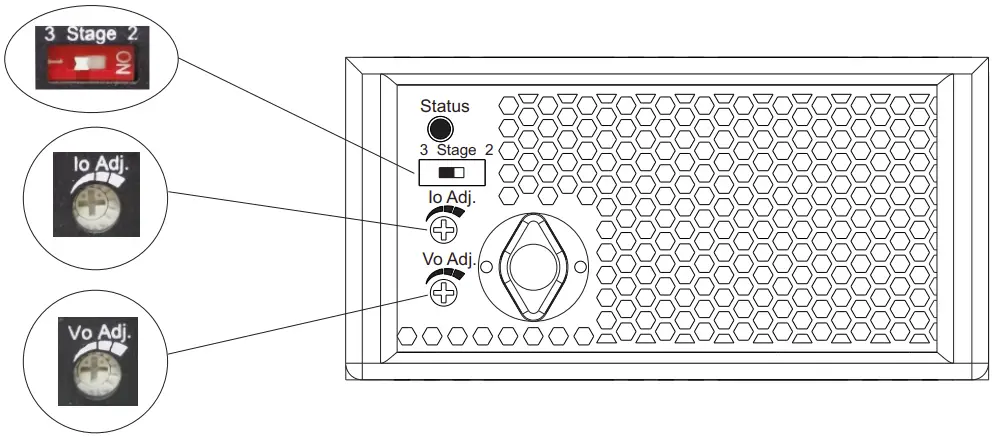

2 or 3 stage selectable by DIP S.W

This series provides 2 or 3 stage charging curve.(Default 3 stage)

Charging Curve by DIP S.W

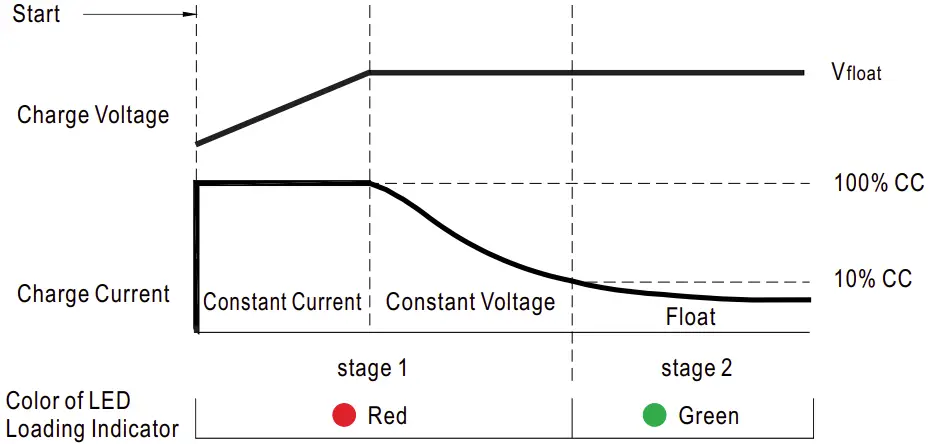

2 stage charging curve

State	NPB-120-12	NPB-120-24	NPB-120-48
Constant Current	6.8A	4A	2A
Vtloat	13.8V	27.6V	55.2V

3 stage charging curve

State	NPB-120-12	NPB-120-24	NPB-120-48
Constant Current	6.8A	4A	2A
V boost	14.4V	28.8V	57.6V
V tloat	13.8V	27.6V	55.2V

2 stage charging cure is suitable for Li-ion batteries(lithium iron and lithium manganese),
3 stage charging cure is suitable for lead-acid batteries (flooded ,Gel and AGM).

Charging voltage adjustable by VR

Model	NPB-120-12 □	NPB-120-24 □	NPB-120-48 □
Output voltage adjustable range	10.5- 15.2V	21-30.4V	42-60.BV

Charging current adjustable by VR

Model	NPB-120-12 □	NPB-120-24 □	NPB-120-48 □
Output current adjustable range	3.4-6.8A	2-4A	1-2A

Front panel LED indicators & Corresponding signal at function pins

LED	Description
Green	Float (stage 3) or Battery full
Red	Charging (stage 1 or stage 2)

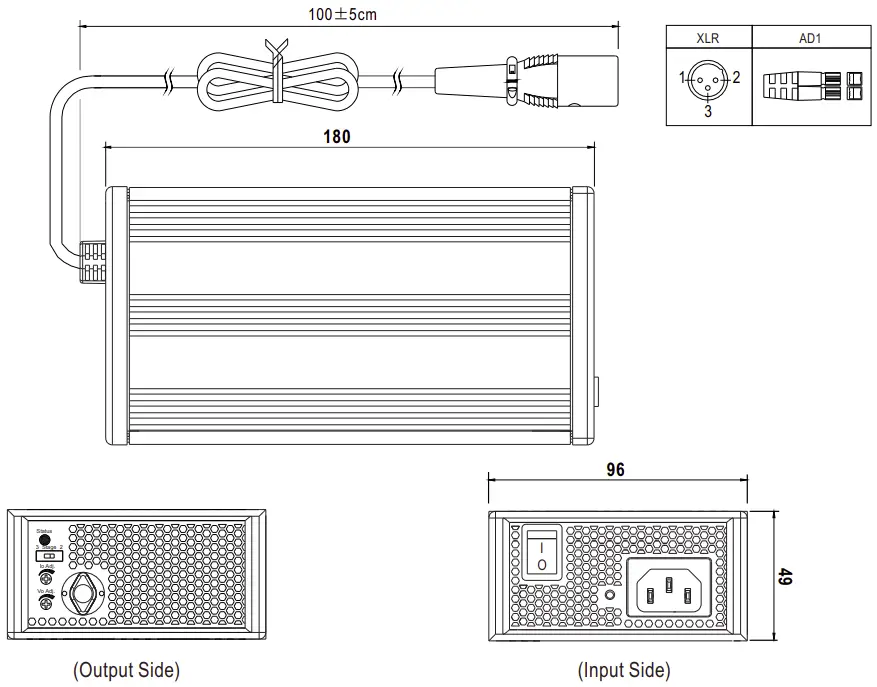

Mechanical Specification

NPB-120-xxXLR/AD1 (Cable Type)

NPB-120-xxTB (Terminal Block Type)

Plug Assignment

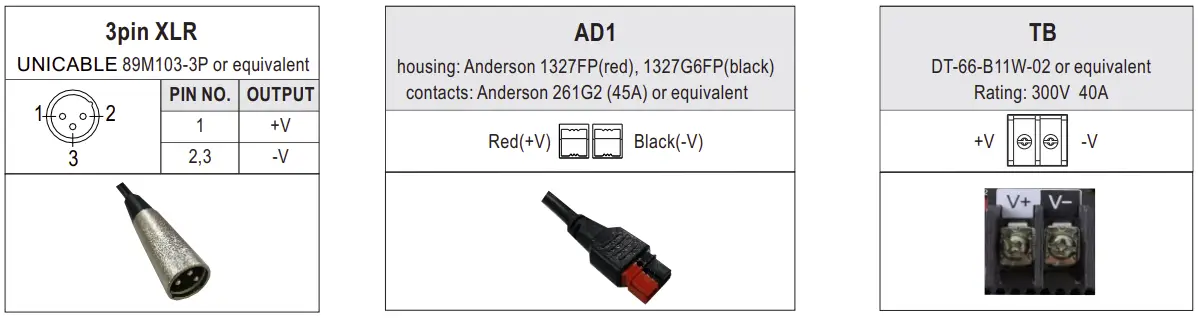

Standard Output Connector

Optional DC plug: (Available in customized)

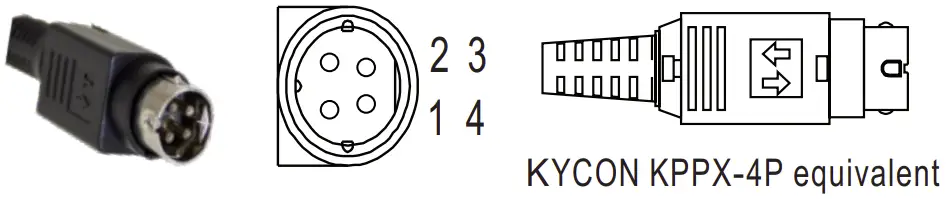

Min. DIN 4 Pin with Lock (male)	Type No.	Pin Assignment
		PIN No.	Output( <7A)
	R?B	1	+Vo
		2	-Vo
		3	-Vo
		4	+Vo
DIN 4 Pin XLR	Type No.	Pin Assignment
		PIN No.	Output(< 10A)
	XLR4	1	+Vo
		2	+Vo
		3	-Vo
		4	-Vo

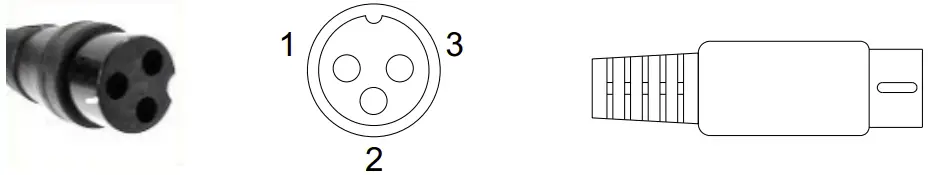

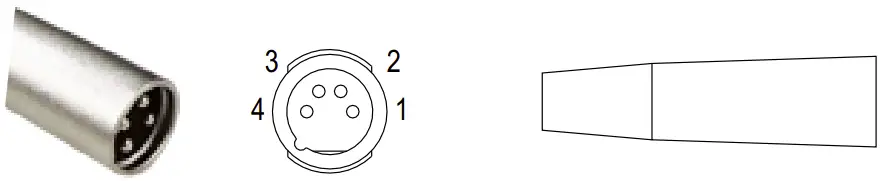

DIN 3 Pin	Type No.	Pin Assignment
		PIN No.	Output(<7A)
	03P	1	+Vo
		2	-Vo
		3	-Vo

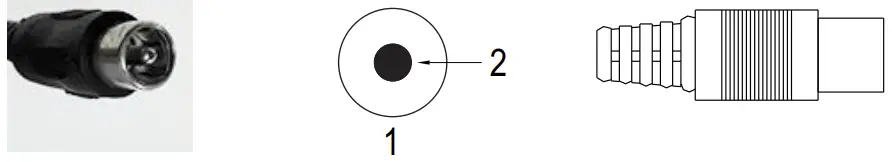

DIN 2 Pin	Type No.	Pin Assignment
		PIN No.	Output(<5A)
	02P		-Vo
		2	+Vo

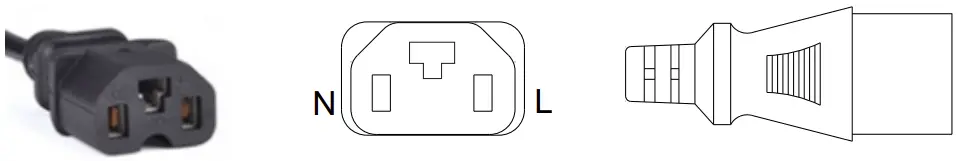

DIN 3 Pin	Type No.	Pin Assignment
		PIN No.	Output(< 10A)
	INL3	N	+Vo
		L	-Vo

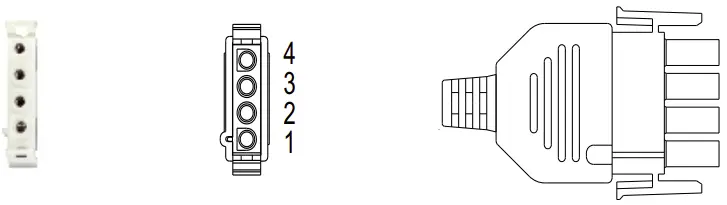

AMP 1-480702-0 (6.35mm) equivalent	Type No.	Pin Assignment
		PIN No.	Output( <7A)
FG not connected to output connector	C4P	1	+Vo
		2	+Vo
		3	-Vo
		4	-Vo
