MEAN WELL ENC-240 Series 240W Programmable Desktop Type Battery Charger

Features

Charger for lead-acid batteries (flooded, Gel, and AGM) and li-ion batteries (lithium iron and lithium manganese)
Built-in 3-stage programmable charging curve
Universal AC input / Full range
Built-in active PFC function
Fanless design, cooling by free air convection
Built-in temperature compensation function
Protection: Short circuit/Over voltage/Over temperature/Battery under voltage/Battery over voltage/Battery reverse polarity protection
3 years warranty

Applications

Radio system backup solution
Electric scooter charger
Surveillance system

GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx.

Description

ENC-240 is a single output 240W AC/DC desktop-type charger with 3 stage charging curve. In addition to the embedded pre-defined charging curves, the default curve is programmable and thus able to accommodate different types of batteries, such as lead-acid batteries (gel, flooded, and AGM) and li-ion batteries (lithium iron and lithium manganese). With the rugged mechanical design along with the high-efficiency circuitry, ENC-240 operates for the ambient temperature range -30~+70°C under free air convection.

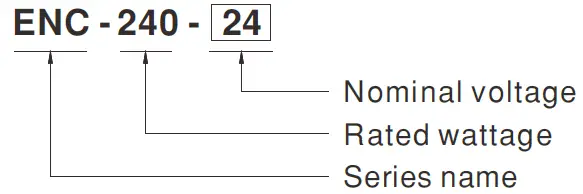

Model Encoding

SPECIFICATION

MODEL			ENC-240-12		ENC-240-24		ENC-240-48
OUTPUT	BOOST CHARGE VOLTAGE(Vboost)(default)		14.4V		28.8V		57.6V
	FLOAT CHARGE VOLTAGE(Vfloat)(default)		13.8V		27.6V		55.2V
	CHARGE VOLTAGE RANGE Note.3		9 ~ 15V		18 ~ 30V		36 ~ 60V
	OUTPUT CURRENT(CC) (default)		16A		8A		4A
	RATED POWER		230.4W		230.4W		230.4W
	RECOMMENDED BATTERY CAPACITY (AMP HOURS) Note.4		60 ~ 170AH		30 ~ 85AH		15 ~ 45AH
	LEAKAGE CURRENT FROM BATTERY (Typ.)		<1mA
INPUT	VOLTAGE RANGE	Note.5	90 ~ 264VAC	127 ~ 370VDC
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR (Typ.)		PF>0.98/115VAC, PF>0.95/230VAC at full load
	EFFICIENCY (Typ.)		91%		92%		93%
	AC CURRENT (Typ.)		2.5A/115VAC	1.25A/230VAC
	INRUSH CURRENT (Typ.)		COLD START 75A at 230VAC
	LEAKAGE CURRENT		<3.5mA / 240VAC
PROTECTION	SHORT CIRCUIT	Note.6	Protection type : Shut down O/P voltage, re-power on to recover
	OVER VOLTAGE	Note.7	15.5 ~ 18.2V		31 ~ 36.5V		62.1 ~ 72.9V
			Protection type : Shut down and latch off o/p voltage, re-power on to recover
	REVERSE POLARITY		By internal fuse
	OVER TEMPERATURE		Shut down O/P voltage, recovers automatically after temperature goes down

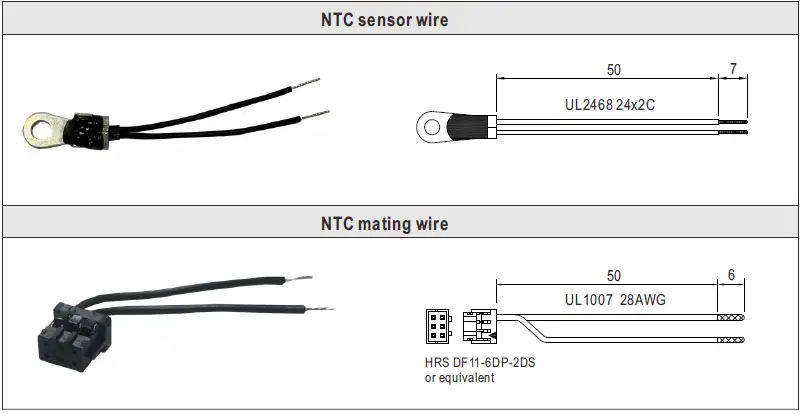

FUNCTION	TEMPERATURE COMPENSATION		By NTC
ENVIRONMENT	WORKING TEMP.		-30 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT		±0.05%/℃ (0 ~ 50℃)
	VIBRATION		10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 8)	SAFETY STANDARDS		IEC62368-1, UL62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Meet BS EN/EN62368-1
	WITHSTAND VOLTAGE		I/P-O/P:3KVAC	I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Parameter		Standard		Test Level / Note
			Conducted		BS EN/EN55032 (CISPR32) / FCC PART15 (CISPR22)		Class B
			Radiated		BS EN/EN55032 (CISPR32) / FCC PART15 (CISPR22)		Class B
			Harmonic Current		BS EN/EN61000-3-2		—–
			Voltage Flicker		BS EN/EN61000-3-3		—–
	EMC IMMUNITY		BS EN/EN55035, BSMI CNS13438
			Parameter		Standard		Test Level / Note
			ESD		BS EN/EN61000-4-2		Level 3, 8KV air ; Level 2, 4KV contact
			Radiated		BS EN/EN61000-4-3		Level 2, 3V/m
			EFT / Burst		BS EN/EN61000-4-4		Level 2, 1KV
			Surge		BS EN/EN61000-4-5		Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
			Conducted		BS EN/EN61000-4-6		Level 2, 3Vrms
			Magnetic Field		BS EN/EN61000-4-8		Level 1, 1A/m
			Voltage Dips and Interruptions		BS EN/EN61000-4-11		>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS	MTBF		1423.3K hrs min.	Telcordia SR-332 (Bellcore) ; 155.9K hrs min.		MIL-HDBK-217F (25℃)
	DIMENSION		19217845.5mm (LWH)
	PACKING		1.23Kg; 10pcs/13.3Kg /1.38CUFT
NOTE	Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. This is the range when programming Vboost or Vfloat by using SBP-001, the smart battery charging programmer. This is MEAN WELL’s suggested range. Please consult your battery manufacturer for their suggestions about the maximum charging current limitation. Derating may be needed under low input voltages. Please check the derating curve for more details. This protection mechanism is specified in case the short circuit occurs after the charger is turned on. Each model incorporates an MCU-controlled dynamic over-voltage protection, which is about 115% of boost over the Constant Current stage and Constant Voltage stage whereas 115% of Vfloat over the Float stage. The battery charger is considered an independent unit, but the final equipment still needs to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these MC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) 9. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitudes higher than 2000m(6500ft. ⅚ Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx.

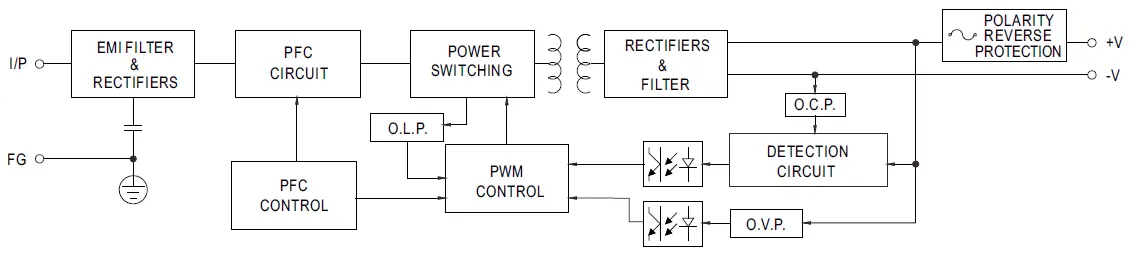

Block Diagram

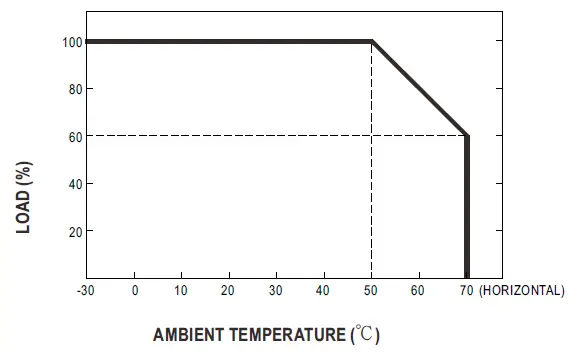

Derating Curve

Static Characteristics

Function Manual

Charging Curve

This series provides a 3-stage charging. The default curve is programmable, whereas other pre-defined curves can be activated by means of the DIP switch; please refer to the table below and the Mechanical Specification.
To accommodate the parameters of the charging curve, SBP-001, the smart battery charging programmer designed by MEAN WELL, and a personal computer are needed. Please contact MEAN WELL for details.

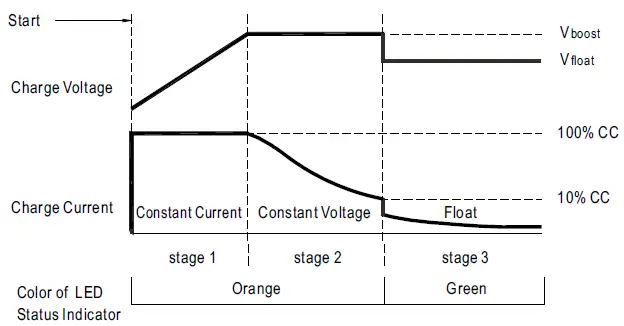

Default 3 stage charging curve

Suitable for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese).

Embedded 3 stage charging curve

MODEL	Description	CC(default)	Vboost	Vfloat
12V	Default, programmable	16A	14.4	13.8
	Pre-defined, gel batter		14	13.6
	Pre-defined, flooded battery		14.2	13.4
	Pre-defined, AGM battery		14.5	13.5
24V	Default, programmable	8A	28.8	27.6
	Pre-defined, gel battery		28	27.2
	Pre-defined, flooded battery		28.4	26.8
	Pre-defined, AGM battery		29	27
48V	Default, programmable	4A	57.6	55.2
	Pre-defined, gel battery		56	54.4
	Pre-defined, flooded battery		56.8	53.6
	Pre-defined, AGM battery		58	54

Front Panel LED Indicators & Corresponding Signal at Function Pins

LED	Description
Green	Float (stage 3)
Orange	Charging (stage 1 or stage 2)

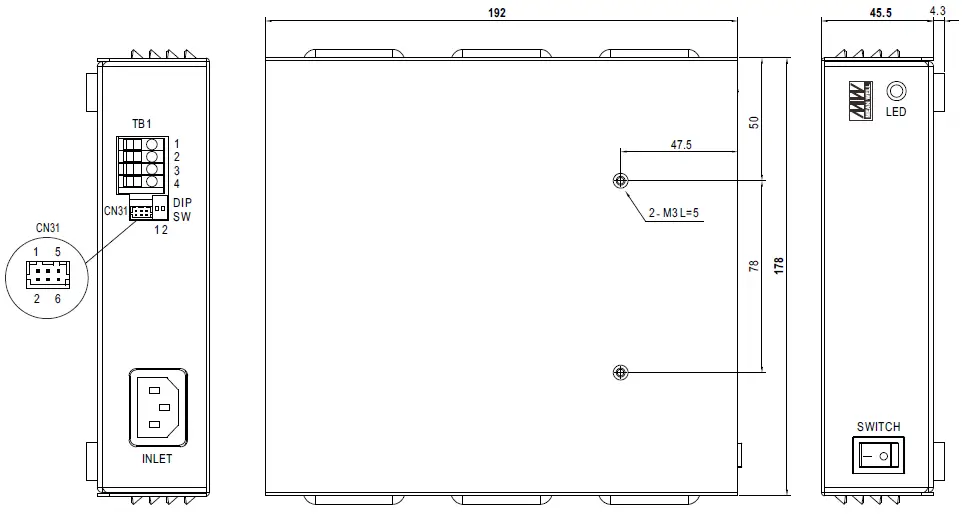

Mechanical Specification

Terminal Pin No. Assignment (TB1):

Pin No.	Assignment
1,2	+V
3,4	-V

Note:

Please use wires with a cross-section of 0.5 – 4.0 mm2 (12~20AWG) for connection.
Recommended wires strip length is 9 mm and screw torque is 4.0 lb-inch (0.4~0.5Nm).

DIP SW:
