MUNiC 4G Cat 4/WiFi Hotspot OBD Dongles



MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle-

Hardware features

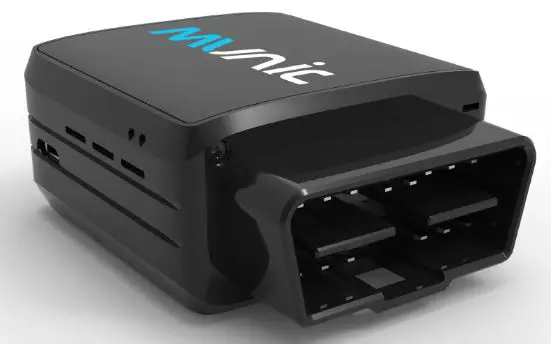

OBD Dongle
PerformanceProcessorARM A7
 RAM2 Gbytes
 NAND Flash2 Gbytes
Power supplyExternal power supply range8-18V
 External voltage measurement
 Li-pol battery450mAh
CommunicationModemLTE Cat M1 & EGPRS Module (BG96)
 BandsLTE : band 2, 4, 12
 Modem antennaInternal
 SIMMicro SIM clot
PositioningGNSS receiverU-blox M8 (GPS,GLONASS)
 GNSS antennaInternal
Interface & Telematics featuresIMUAccelerometer 3 axis ±2/4/8/16 G
 OBD protocolsCAN, KWP2000, VPW, PWM
 CAN interfaceSingle CAN coprocessor
 Leds1 bicolor LED
EnvironmentalConnectorsOBD connector

Micro USB type B connector

 Operating temperature-20°C/+50°C with Battery

-20°C/+60°C without battery

 DimensionsWith OBD connector: 27x50x61 mm

Without OBD connector: 27x50x49 mm

Hardware description

External view

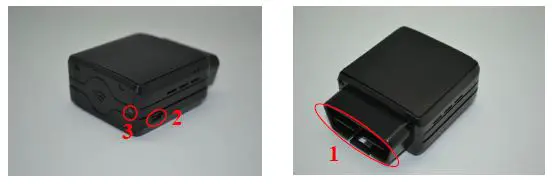

  1. O BD con nector

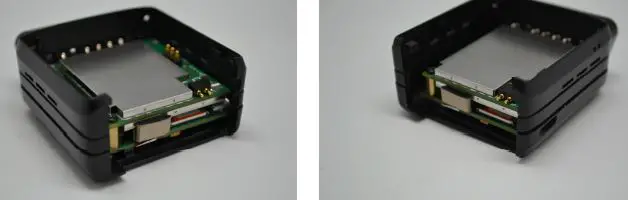

  2. micro USB conn ector 3 : bicolor ledMUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 1Internal view

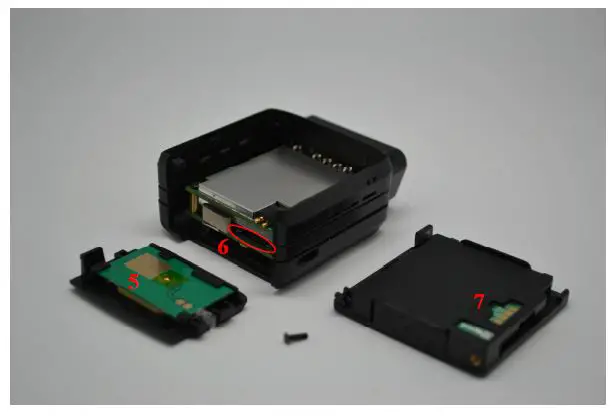

  3. GNSS antenna
  4. micro SIM holder
  5. Internal battery*MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 2
    * Please read warnings section at the beginning of the installation guide

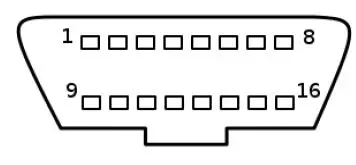

OBD connector pin out

Pin #Comment
1OEM specific
2J1850+ (PWM/VPW)
3OEM specific
4Chassis ground
5Signal ground
6CAN High
7K line
8OEM specific
10J1850- (PWM)
11OEM specific
14CAN low
15L line
16Battery voltage

MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle-

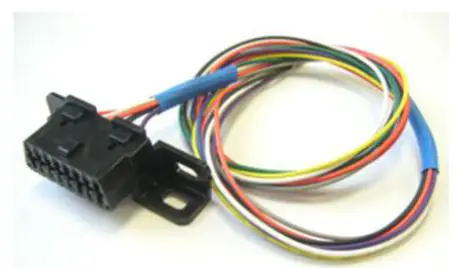

OBD adapter wires
This adapter is only used to connect the OBD to a computer (laptop/desktop).

Pin #Wire color
2Yellow
4Black
5Grey
6Green
7Blue
10Violet
14Orange
15White
16Red

MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 4

Preparing/installing the device

Those operations may need the use of specific tools like :

  • Small cross-head screwdriver for the screw.
  • Small slotted screwdriver to remove the cover.
  • Thin tweezers to insert/remove the SIM card.

Open the device

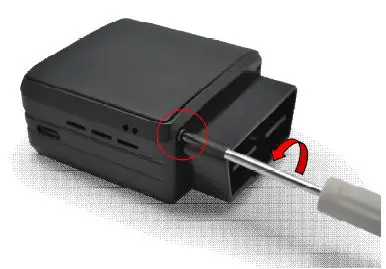

  • Remove the screw using Small cross-head screwdriverMUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 5

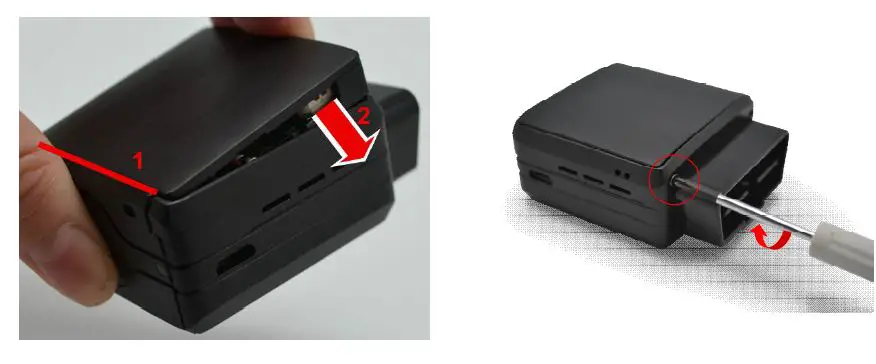

  • Insert slotted screwdriver to pop-out the top cover and extract it.MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 6

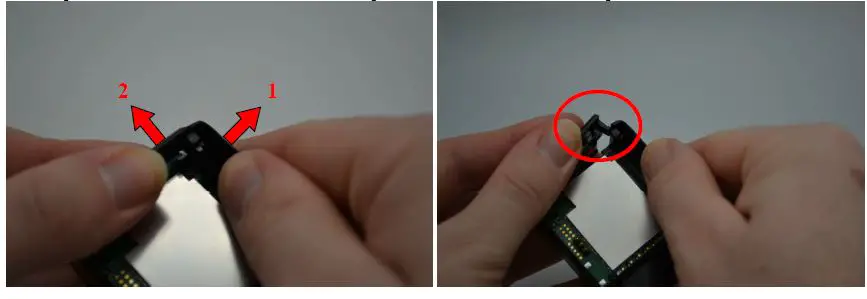

  • Move apart the side of the device first and then pull the back cover out of his spot MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle-

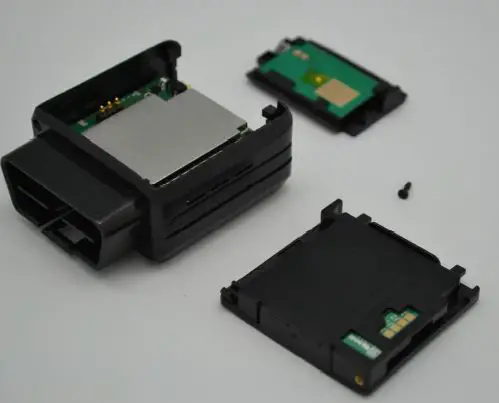

  • Device is now open MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle-

Insert the SIM card

  • The micro SIM card slot is located between the two electronic cards. MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle-

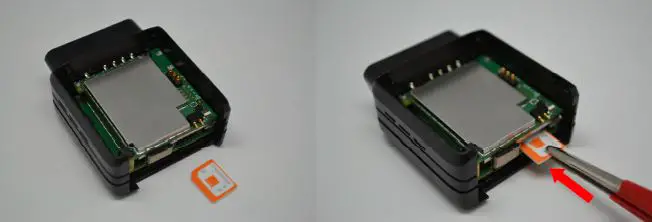

  • Insert the card with contact on bottom into the slot and push it as far as it will go. MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle-
  • Once inserted the SIM card looks like this:MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 1

Properly close the device

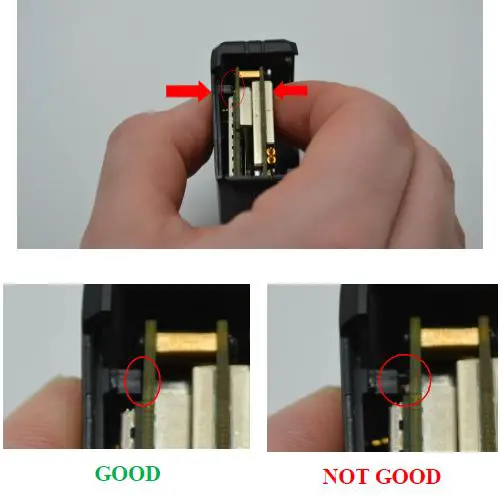

  • First, check that the hole of the electronic card is correctly inserted in the plastic part. If it’s not inserted please move smoothly the electronic cards right and left to place it in correct position.MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 12

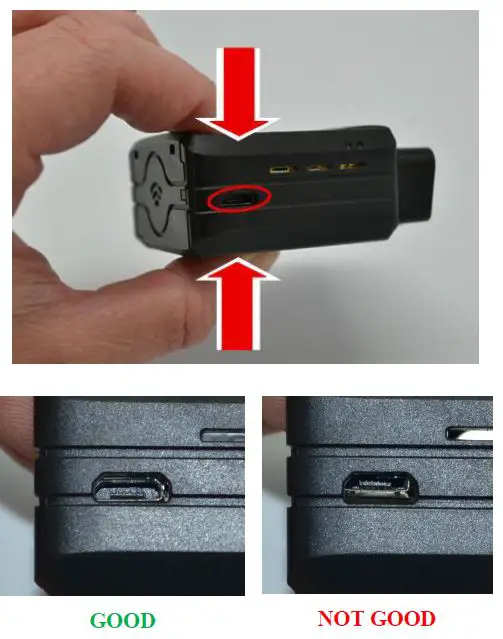

  • Second, check that the micro USB port is correctly inserted on its place. If it’s not inserted please move smoothly the electronic cards to place it in correct position.MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 13

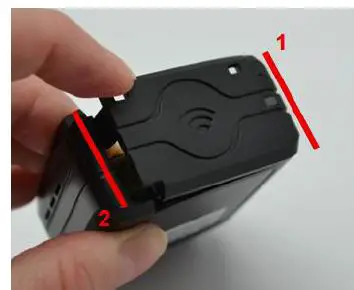

  • insert the GPS antenna as shown below. MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 14
  • Finally, insert the battery and place the screw. MUNiC 4G-Cat-4-WiFi-Hotspot-OBD-Dongle- 15

Install the OBD Dongle
Connect the OBD Dongle on your vehicle OBD connector.

LED sequences

The Dongle has a two-coloured LED, green and red. When both colours are brightened, you can see an orange light.

Green LEDRed LED
SequenceMeaningSequenceMeaning
  Dongle OFFOFF
No Modem

/No GNSS

3 times (50ms ON/100ms OFF)

3550ms OFF







Ext. Power/Run







ON

No Modem

/Fix GNSS

2 times (50ms ON/100ms OFF) 3700ms OFF
Modem OK

/No GNSS

1 time (50ms ON/100ms OFF)

3850ms OFF

Modem OK

/Fix GNSS

2000ms ON

2000ms OFF

  Shutdown/Hibernate30ms ON / 1 s OFF
  Idle/Sleep30ms ON / 1 s OFF

Support

For all questions not related in this installation guide, please contact the support team by email at [email protected]
