Quick Installation Guide
4G LTE Advanced POCKET WIFI HOTSPOT
Model: 4G180
Package Contents
4G LTE Advanced Pocket WiFi Hotspot X 1
Li-ion Battery X 1
USB Cable X 1
User Manual X 1
For product or function details, please go to www.tendacn.com to download the user guide.

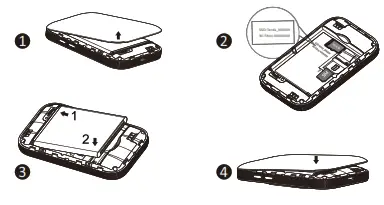

Install SIM card and Barry
- Remove the back cover, Install the Micro SIM card, and Barry.
Note:
Nano SIM cards must be converted using the provided SIM card tray.
SIM cards and SD cards are not included.
- Press the
button down to turn on the device. - The LED screen lights up. Wait a few seconds. The device is successfully connected to the Internet.
button down to turn on the device.
Note:
If can’t access the Internet, refer to Q1 in FAQ to find a solution.
Access the Internet
- Connect your wired device, such as a computer, to the Micro USB port of the Hotspot using an Ethernet cable.
- Connect your wireless device, such as a smartphone, to the Wi-Fi network of the Hotspot using the Wi-Fi Name and Wi-Fi Key labeled on the inner side of the back cover.
To further configure the Hotspot, log in to the web UI of the Hotspot by vising 192.168.0.1 on a connected device
Note:
If you cannot log in to the web UI of the Hotspot, refer to Q3 in FAQ.
LED indicators
| LED indicator | Status | Description |
 | 4 bars | Excellent signal |
| 3 bars | Good signal | |
| 2 bars | Fair signal | |
| 1 bar | Bad signal | |
| Solid on | Search the available signal and connected to the Internet | |
| Blinking | Search the available signal and disconnected the Internet | |
| Red | No signal | |
 | Red Blinking | Battery power is less than 20% of its capacity |
| Red Solid on | Battery power is between 20% and 25% of its capacity | |
| Green Solid on | Battery power is over 25% of its capacity | |
| Green Blinking | The battery is in charge,it will turn to solid green after being fully charged | |
 | Green Blinking 5 time | New income SMS is received or the storage space is full |
| Green Solid on | There is unread SMS | |
| Off | No unread SMS | |
 | Green Solid on | The Wi-Fi network is disconnected |
| Green Blinking | The Wi-Fi network is connected | |
| Off | The Wi-Fi network is disabled |
Charging your Mobile Wi-Fi hotspot

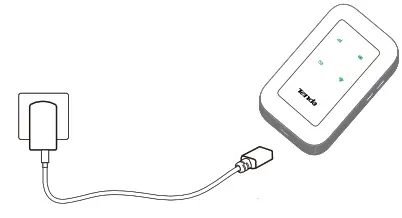

- Method 1: Via wall outlet

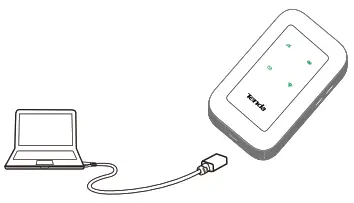

- Method 2:Via Computer
FAQ
– A1. Verify your USIM/SIM is prepaid and has enough balance.
– A2. Verify your device is always in the valid range.
– A3. Verify you input the correct passphrase (Wi-Fi Key) when connecting to this mobile hotspot’s SSID (Wi-Fi name). Verify that you input the default PIN code of -SIM card if your service provider has provided you with a PIN code.
– A4. Close firewall of your computer.
– A1. Restart your PC or notebook.
– A2. Unplug the USB cable and plug it in again.
– A3. Click the Open folder to view files, click the 4G Mi-Fi driver setup program, and then follow onscreen installations to install the program.
– A4. On your desktop, double-click the computer (in Windows 7 OS), locate the CD driver, and double-click it to install the program.
– A1. Verify that your terminal device (notebook, smartphone, iPad, etc.) is connecting to 4G180.
– A2. Clear the cookies and caches of the browser you launch.
– A3. Close all browsers and reopen one.
– A4. Verify that your terminal device has obtained an IP address within the range of 192.168.0.2~192.168.0.253 (default).
– A5. Verify that you’ve entered the correct login IP address 192.168.0.1(default).
– A1. Log in to the web UI of the Hotspot on your wired or wireless device, navigate to Wi-Fi Songs > Wi-Fi Name & Wi-Fi Key, and customize your Wi-Fi name and Wi-Fi Key.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This equipment should be installed and operated with a minimum distance of 20cm between the device and your body not:
- The manufacturer is not responsible for any radio or TV interference caused by unauthorized modificaons to this equipment.
- To avoid unnecessary radiation interference, it is recommended to use a shielded USB cable.
Caution
Barry Model: 4G
Manufacturer: Shenzhen Power comes to Electronics Co., LTD
Operating Environment
Temperature: 0°C-40°C
Humidity:(10 – 90) %RH, non-condensing
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to the European
directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. The user has the choice to give his product to a competent
recycling organization or to the retailer when he buys new electrical or electronic equipment.
Technical Support
Shenzhen Tenda Technology Co., Ltd.
6-8 Floor, Tower E3, NO.1001, Zhongshanyuan Road,
Nanshan District, Shenzhen, China. 518052
USA hotline: 1-800-570-5892
Toll-Free: 7 x 24 hours
Hong Kong hotline: 00852-81931998
Global Hotline: +86 755-2765 7180 (China Time Zone)
Website: www.tendacn.com
E-mail: [email protected]
Copyright
© 2020 Shenzhen Tenda Technology Co., Ltd. All rights reserved.
Tenda is a registered trademark legally held by Shenzhen
Tenda Technology Co., Ltd. Other brands and product names mentioned herein are trademarks or registered trademarks of their respective holders. Specificaons are subject to change without notice.
