Christ Pa10010861 Touch Industrial Open Frame 7 Instruction Manual

PA10010861 Touch Industrial Open Frame 7

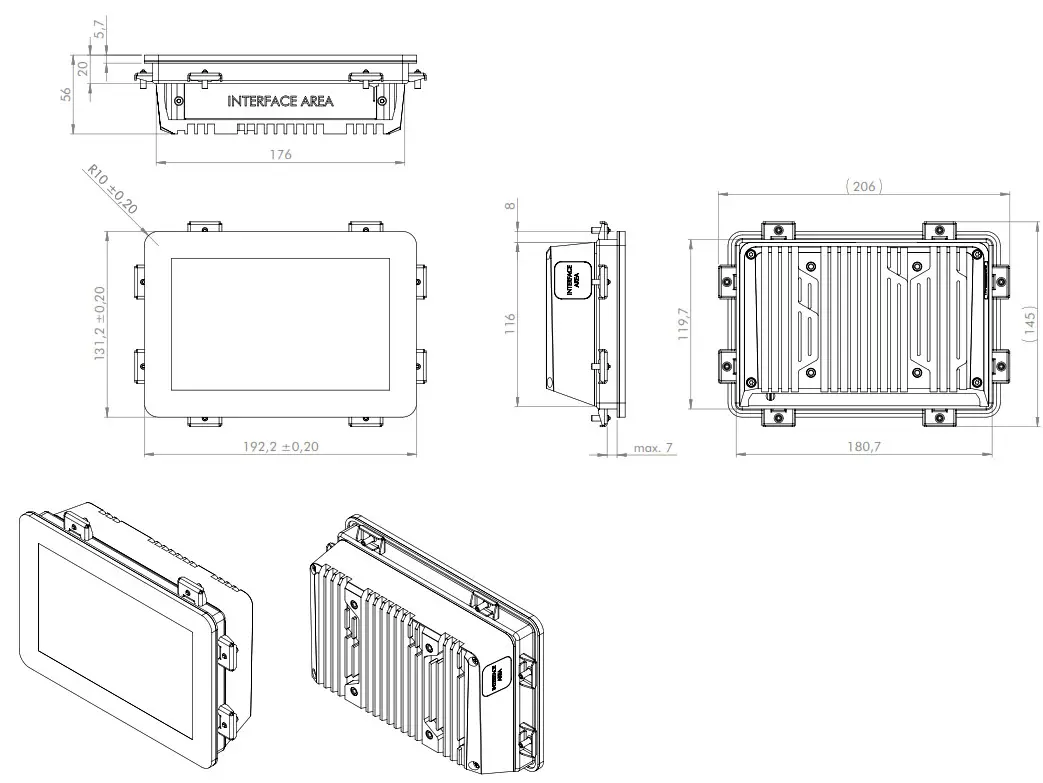

General tolerances DIN ISO 2768-mK			Drawn by by: CH	Drawing for mechanical measurements only. For more details see datasheet.
Document type: general arrangement drawing			Proved by: JT	Article designation: Touch Industrial Open Frame 7
			Release date: 2022-05-10
				Drawing number: PA1 001 0861	Scale: 1:2
					Page: 1 /2
Rev.	Date	Name
Proprie ary notice ISO 16016 to be considered					A3

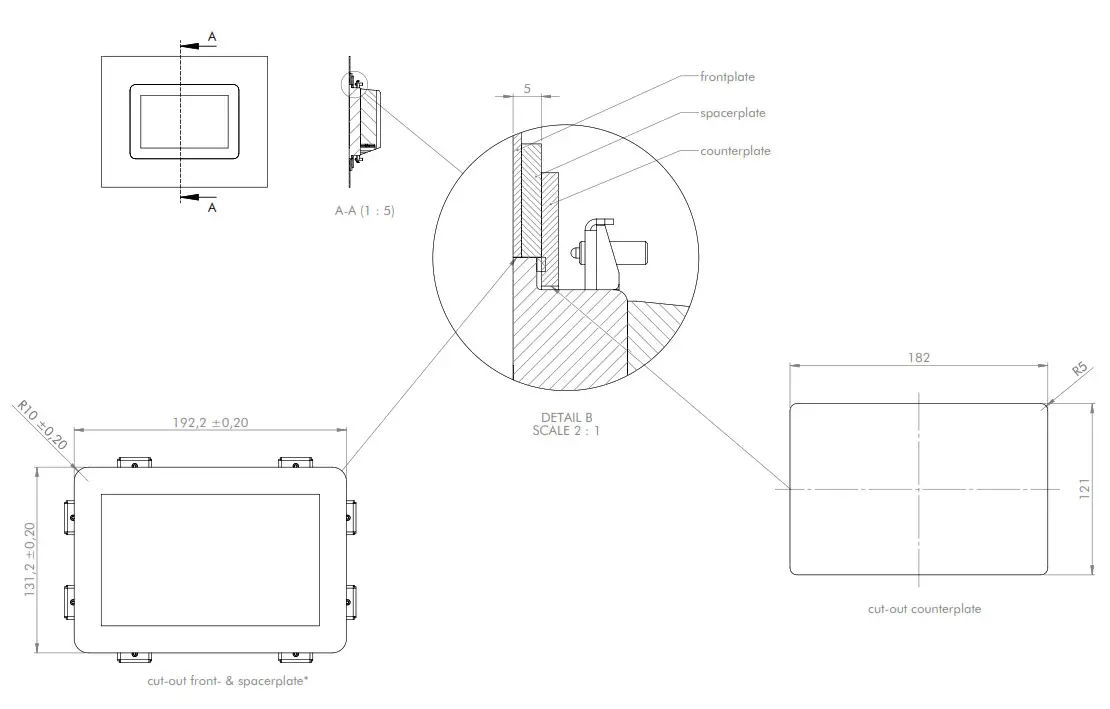

* The actual cut-out-dimensions of the front- and spacerplate need to be subjected to the prevalant assembly situation (production tolerances, ambient temperature, etc.) and therefore to be defined by the customer.
