PA10010875 Touch Industrial Open Frame 15.6
| General tolerances DIN ISO 2768-mK | Drawn by by: EN | Drawing for mechanical measurements only. For more details see datasheet. | |||

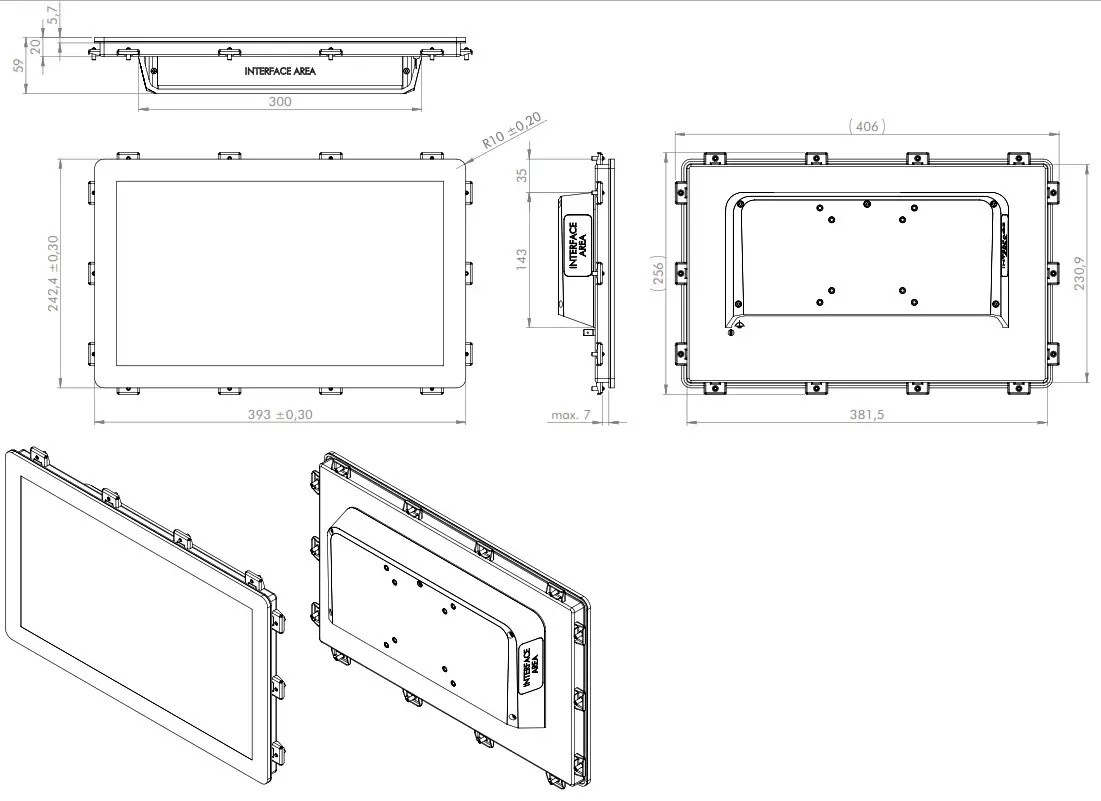

| Document type: general arrangement drawing | Proved by: EN | Article designation: Touch Industrial Open Frame 1 5.6 | |||
| Release date: 2022-05-31 | |||||
| Drawing number: PA10010875 | Scale: 1:3 | |||
| 1 | 2022-05-31 | CH | Page: 1 /2 | ||
| Rev. | Date | Name | |||
| Proprietary notice ISO 16016 to be considered | A3 | ||||

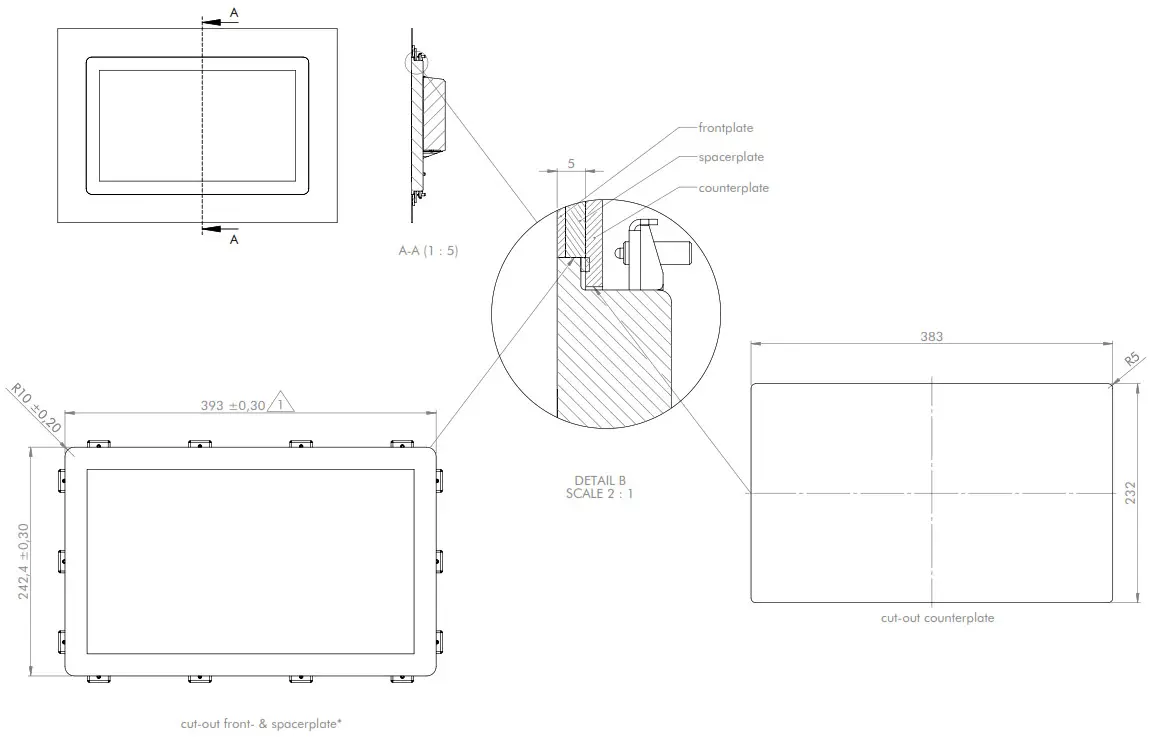

* The actual cut-out-dimensions of the front- and spacerplate need to be subjected to the prevalant assembly situation (production tolerances, ambient temperature, etc.) and therefore to be defined by the customer.
