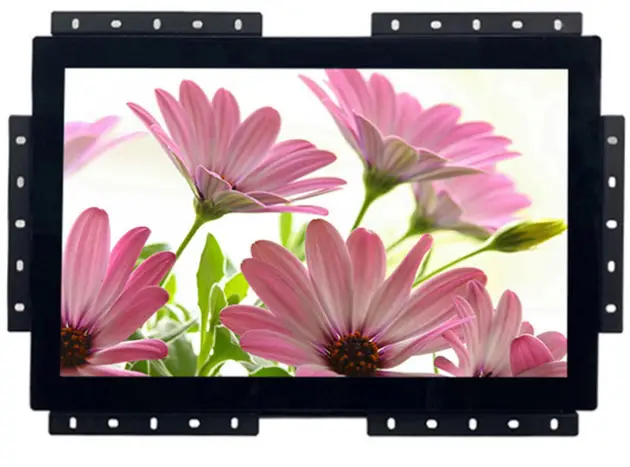

PA10010884 Touch Industrial Open Frame 24
Product Information:
- Article Designation: Touch Industrial Open Frame 24

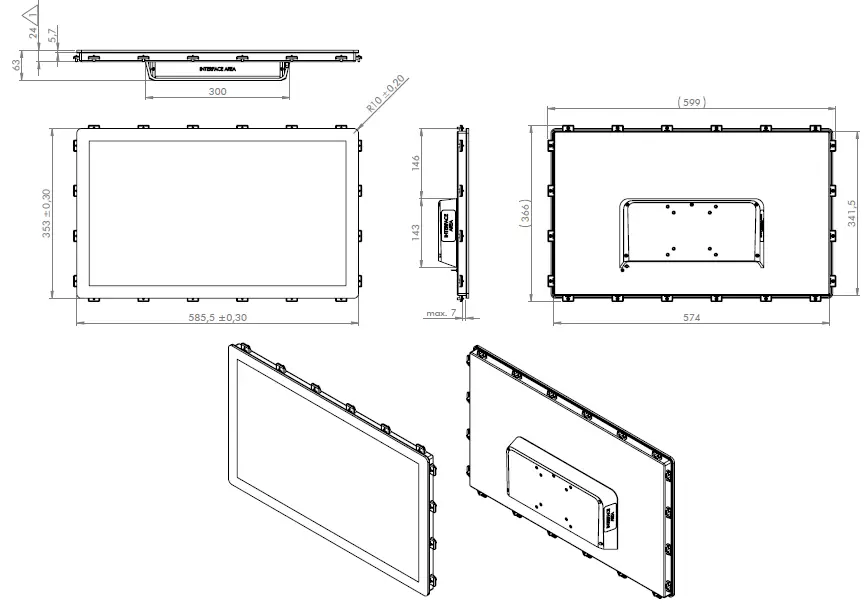

- Drawing Number: PA10010884
- Scale: 1:4.5
- Page: 1/2 (Front Plate and Spacer Plate), 2/2 (Counter Plate)
- General Tolerances: DIN ISO 2768-mK
- Document Type: General Arrangement Drawing EN
- Proprietary Notice: ISO 16016 to be considered
- Maximum Usage Limit: 7
This product comes with a front plate, spacer plate, and counter plate. The front and spacer plates have a cut-out section that may need adjustments according to the production tolerances and the ambient temperature at the customer’s location. Please refer to the datasheet for more information.
Product Usage:
- Ensure that the product is handled and installed by trained personnel only.
- Check the product for any visible damage before installation.
- Refer to the cut-out dimensions on the front and spacer plates according to your assembly situation.
- Insert the product into the designated area, ensuring that it is securely fixed in place.
- Connect the necessary cables to the product.
- Power on the product and follow the instructions on the datasheet to start using it.
- Do not exceed the maximum usage limit of 7.
DIMENSION
The actual cut-out-dimensions of the front- and spacerplate need to be subjected to the prevalant assembly situation (production tolerances, ambient temperature, etc.) and therefore to be defined by the customer.
