DRU160 Drill Rig
Instruction Manual
DRU160 Drill Rig

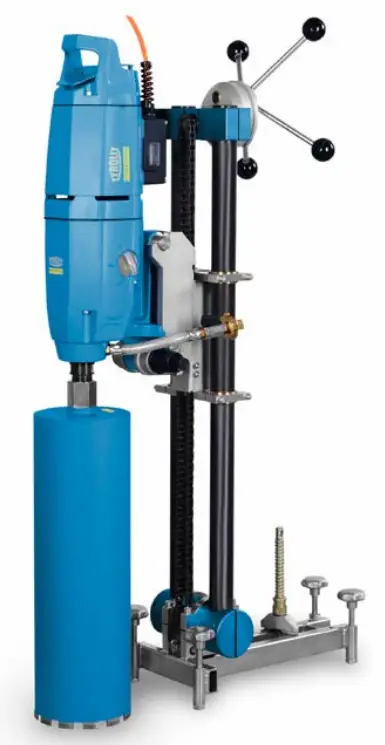

Drill rig BY
Core drilling up to Ø 300 mm
The BY dual rod drill rig combines a lightweight design with great stability. The accurate guide principle enables inclined drilling at any angle. This particularly compact core drill rig can be combined with a wide range of electric drilling motors. Thanks to its modular design, the drill rig can also be used for more powerful hydraulic drilling operations.

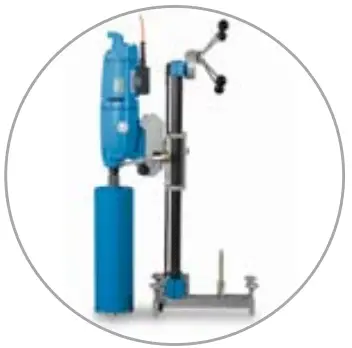

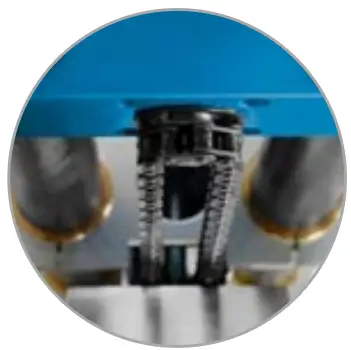

2-column guide principle with chain drive

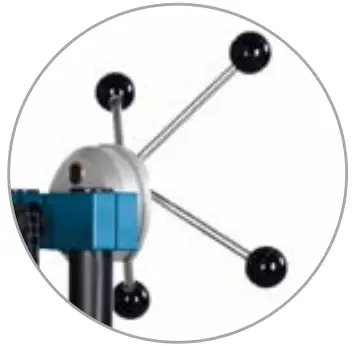

Fixed, ergonomic position of handwheel
Compact design without support rods
System & Accessories
Technical data
Drill rigs BY
| Drilling diameter range | 80-300 mm |
| Max. drill bit length | 520 mm |
Design
- Dual rod guide principle
- Chain drive
- 0°-90° diagonal adjustment
- Feed via a handwheel
- Ergonomic handwheel position
- Steel dowel foot
- ModulDrill™ quick clamping system
- Optional feed gear 1:3
- Optional double support bar
Dimensions & weight
| Length | 410 mm |
| Width | 230 mm |
| Height | 1,115 mm |
| Weight (core drilling system) | 21 kg |
System & Accessories
System proposal
| 974229 | Drill rigs BY |
| 977462 | Handwheel |
| 984076 | MudullDrill™ mounting plate |
| 10992085 | Drill motor DME33MWP |
| 974238 | Feed gear 1:3 (optional) |
| 976139 | Double support bar (optional) |
Accessories
| 11002077 | Fastening bolt assembly for concrete |
| 11002624 | Drill hammer DHE32 / 230 V incl. 16 mm drill |
| 974270 | Extraction device for core bits |
| 977353 | Extraction device for cores |
| 10991465 | Watertank 10 l |
