BC-2 Core Drilling System
Owner’s Manual
BC-2 Core Drilling System

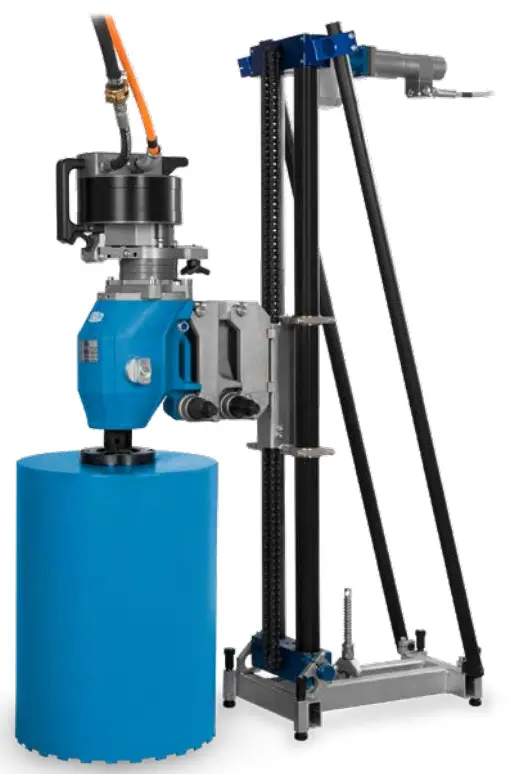

The BC-2 is ideal for drilling large holes up to 1 000 mm. Thanks to the modular design, combined use with TYROLIT cable saws and hydraulic equipment is possible without difficulty. The dual-column guidance principle and a two-speed feed gear enable user friendly work and low weight. A large selection of drill accessories rounds off the range.

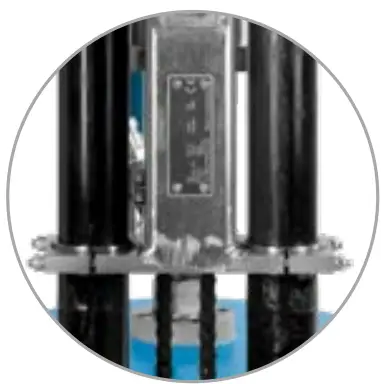

High stability yet low weight thanks to 2-pillar guide system
Effortless drilling thanks to two speed feed gearbox i=1:2 and i=1:9
Bores with a diameter of up to 1 000 mm with ModulDrill™ distance plates
System & Accessories
Technical data
Drill rig BC-2
| Drill diameter range | 100–400 mm |
| Max. drill diameter with distance plates | 1 000 mm |
| Max. drill bit length | 980 mm |
Design
Steel dowel foot………………………………………….
Two-speed feed gearbox i=1:2 and i=1:9…………..

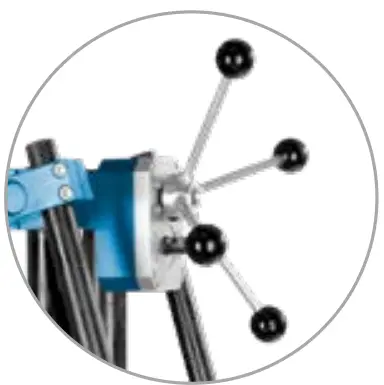

Feed using hand crank……………………………………
Can be adjusted to any angle……………………………
Adjusting feet (micro)…………………………………………
Dimensions & Weight
| Length | 460 mm |
| Width | 290 mm |
| Height | 1 340 mm |
| Weight | 30 kg |
System & Accessories

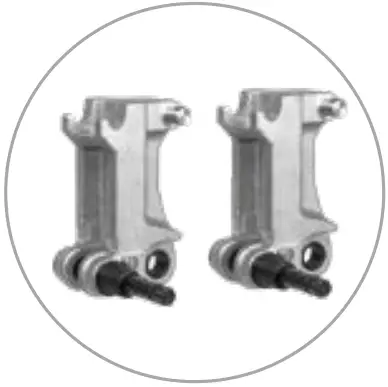

| 964906 | ModulDrill™ distance plate Ø +180 mm |
| 964907 | ModulDrill™ distance plate Ø +250 mm |
| 977464 | ModulDrill™ mounting plate |
| 974270 | Extraction device for core bits |
| 977353 | Extraction device for cores |
| 977462 | Handwheel complete |
| 974264 | Trolley chassis |
| 975746 | Tool box |
| 10991465 | Water tank 10 l |
System suggestion
Core drilling system BC-2
| 974266 | Drill rig BC-2 |
| 984076 | Fastening plate for ModulDrill™ |
| 10991100 | Drill gearbox DGB1000 |
| 10998369 | Drilling and circular wire saw kit WSE1621 |
| 10997955 | Electric main drive motor WSE1621 400–480 V / 50 Hz |
| 974263 | Feed gear 2-speed |
| 11002700 | Electric control unit WSE1621 400 V | 50 Hz incl. radio remote control |
| 10987583 | Feed motor |
| 11002077 | Fastening bolt assembly |
| 11002624 | Drill hammer DHE32 / 230 V incl. 16 mm drill |
