DRA150 Drill Rig
Owner’s Manual
DRA150 Drill Rig
Drill rig DRA150
Core drilling up to Ø 152 mm

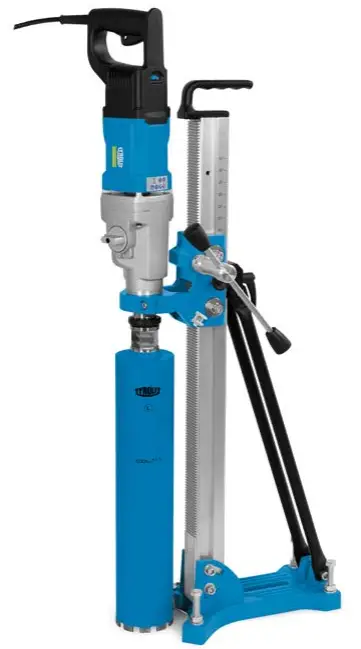

The DRA150 is extremely well-suited for electrical and installation work. This drill rig is suitable for 550 mm drill bits and angle drilling. A centre indicator, spirit level and carrying handle facilitate handling.
System & Accessories
Technical data
| Drill rig DRA150 | |
| Drill diameter range | 20–152 mm |
| Max. drill bit length | 550 mm |
Design

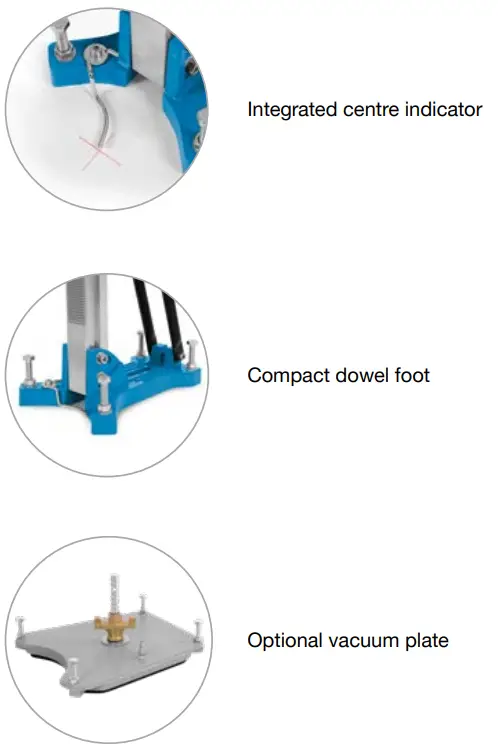

Dowel foot………………………………….
Feed using hand crank…………………..
Diagonal adjustment 90°–45°…………..
Centre indicator………………………………
Angle indicator……………………………….
Spirit level…………………………………..
Adjustable feet………………………………
Handle………………………………………….
Clamping collar Ø 60 mm……………….
Dimensions & Weight
| Length | 330 mm |
| Width | 240 mm |
| Height | 950 mm |
| Weight | 9.5 kg |
System & Accessories
Core drilling system with DRA150
| 10993967 | Drill rig DRA150 |
| 10993027 | Electric drill motor DME22SU |
| 10993966 | Fastening bolt assembly |
Accessories
| 10993961 | Vacuum plate complete |
| 10999500 | VPE600 Vaccum pump 230V EU/CH |
| 975381 | Vacuum hose 3 m komplett |
| 11002624 | Drill hammer DHE32 / 230 V incl. 16 mm drill |
| 10993964 | Water retention ring complete Ø 152 mm |
| 10993965 | Gasket Ø 152 mm |
| 974270 | Extraction device for core bits |
| 977353 | Extraction device for cores |
| 10991465 | Water tank 10 l |
