EUROTOOL DRL-300 Benchtop Drill Press Instruction Manual
PRODUCT CHARACTERISTICS
This small, lightweight drill press is uniquely designed for small precision applications. The single phase, adjustable speed motor allows for control and ease of use.
SPECIFICATIONS
- 110volt
- 100 watt
- Jacobs Chuck
- Max drill bit diameter: 6mm
- Max travel: 1″
- Max distance between work platform and chuck: 8″
- Weight: 11 lbs.

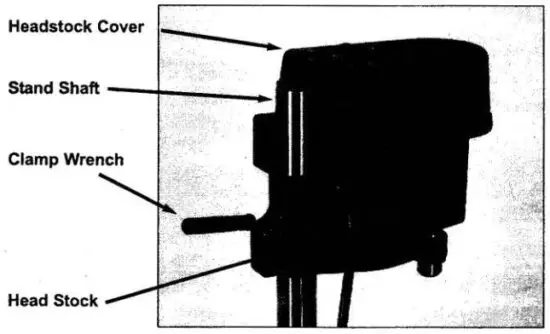

ASSEMBLY
- Insert stand shaft into pedestal.
- To adjust height, loosen clamp wrench and bring down headstock to desired level and tighten clamp wrench.
- Insert handle with knob into handle shaft.

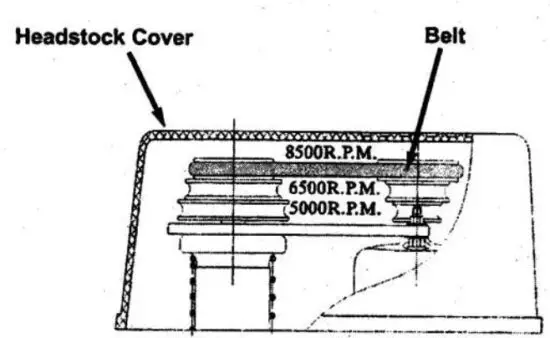

RPM ADJUSTMENT
- Unplug drill press
- Open Headstock cover
- Place belt as follows:
SAFETY WARNINGS
- Always wear proper eye protection when using the drill press.
- Never wear loose clothing when operating the drill. press.
- Always operate with headstock cover attached.
- Keep long hair tied back when operating drill press
- Always ground plug.
- Never alter or tamper with original equipment.
Not a toy. Not intended for use by children.
