5906822901 Drill Press
Instruction Manual
5906822901

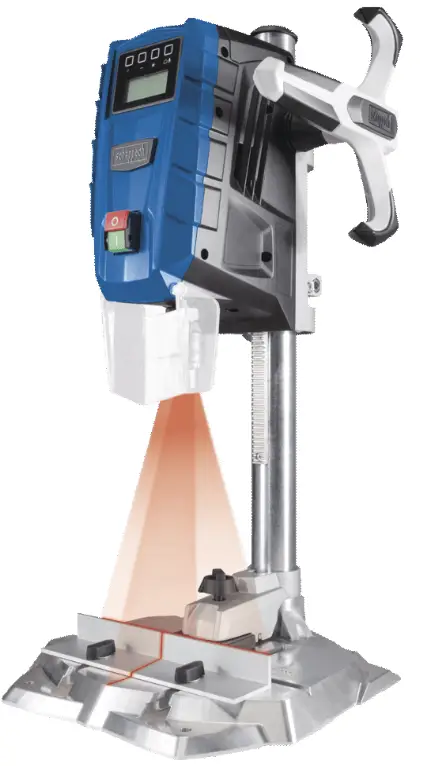

Drill Press DP55
scheppach – 220-240V
50Hz 900W
5906822901 Drill Press

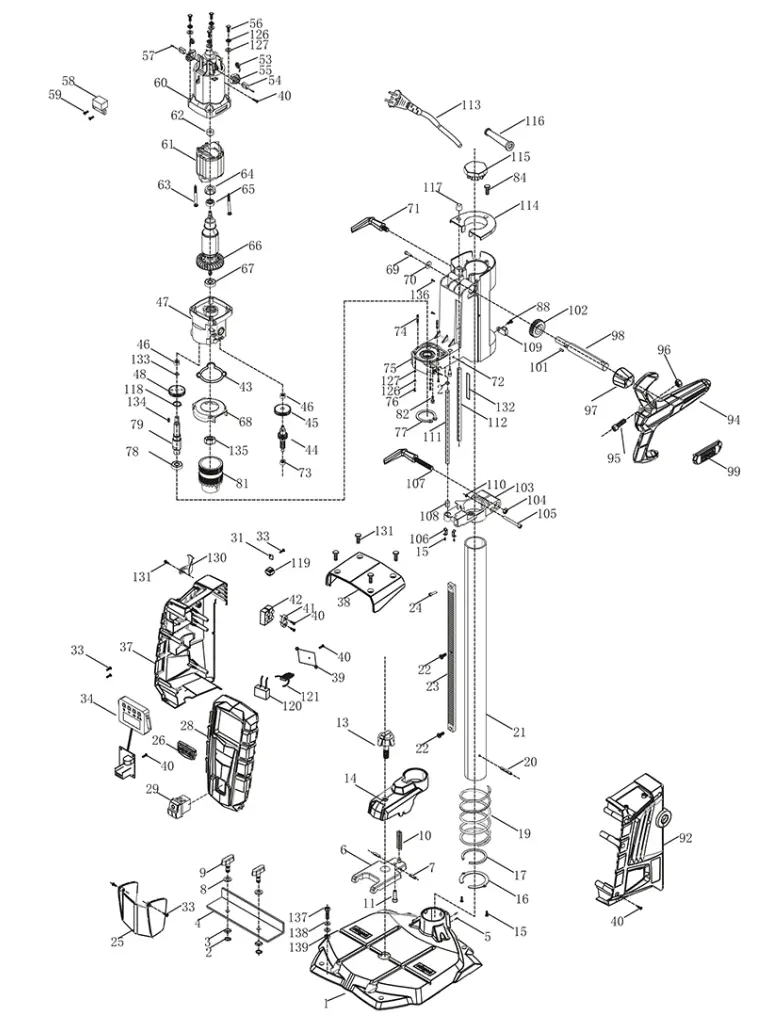

| Main products | Spare part list |
| 5906822901 | 211443 – 0110 – DP55 / DP55Max – – |
| Spare | Description | additional | Item | Abb. | Construction Status |
| 5906822001 | Base – Scheppach | 1 | A | * |
| Spare | Description | additional | Item | Abb. | Construction Status |
| 3906813020 | stop cpl. | 2-4,8,9 | A | * | |
| 4091641 | Threaded pin | M8x8 45H galvanized DIN916 | 5 | A | * |
| 5906821003 | Quick clamp assy | 6,7,10,11,13,14 | A | * | |
| 5906822013 | clamping screw | M10x35 | 13 | A | * |
| 1902403088 | countersunk screw part 16 | 15 | A | * | |
| 1147231 | GROOVED DOWEL PIN 5×10 ST 1472 BK | 5×10 | 20 | A | * |
| 2096503 | countersunk screw | M4x8 VZ | 22 | A | * |
| 2008413 | CHEESE HEAD SCREW M4x8 84 VZ | M4x8 | 24 | A | * |
| 5906821005 | chuck protection | 25 | A | * | |
| 5906822002 | front cover with name plate | 26,28 | A | * | |
| 3906813025 | on/off switch | 15A 250VAC | 29 | A | * |
| 5906822003 | LCD display | 34 | A | * | |
| 5906822004 | left cover | 37 | A | * | |
| 5906822005 | upper cover | 38 | A | * | |
| 5906822015 | intermediate gear(counter gear) | 44 | A | * | |
| 5906812015 | carbon brush set with holder (= 2 pcs.) | 53-55 | A | * | |
| 5906812035 | magnet ring | Ø15,5/6 | 62 | A | *not available anymore |
| 5906822006 | knob of framework base | M8x20 RAL9005 | 71 | A | * |
| 3906814001 | sprocket drill chuck with key | B16 für Konus MK2 1,5-13mm | 81 | A | * |
| 5906807058 | keyless drill chuck | B16 für Konus MK2 1-16mm | 81 | A | * |
| 5906822007 | laser head | (2 pcs.) | 82 | A | * |
| 5906822008 | right cover | 92 | A | * | |
| 5906822009 | handle wheel | 94 | A | * | |
| 5005419 | Oval head screw | M6x30 | 95 | A | * |
| 2098504 | selflocking nut | M6 galvanized DIN985 | 96 | A | * |
| 5906822010 | handle wheel sheet | 97 | A | * | |
| 5906821021 | lifting gear | z=24 | 102 | A | * |
| 5906821015 | fixing holder assy. | 103,105,106,108,110,15 | A | * | |
| 5906812026 | leaf spring | 106 | A | * | |
| 5906821012 | knob for fixing holder | M8x50 | 107 | A | * |
| 3906814013 | Depth rod with scale | 112, 117 | A | * | |
| 5906821020 | cover for braket | 114 | A | * | |
| 5906822014 | Column end cap | 115 | A | * | |
| 5906812025 | capacitor | 0,1µF 250V | 120 | A | * |
| 3906814012 | scale indicator | 130 | A | * | |
| 3906813030 | open end wrench for chuck SW16 | SW16 | o.Abb. | A | * |
| 2091235 | cheese head screw | M6x12 8.8 912 VZ | o.Abb. | A | * |
| 5906822011 | enclosed accessories bag | o.Abb. | A | * |
