The TYROLIT Dry Drilling System

Decades of experience in the production and application of core drill bits and core drill systems give TYROLIT the edge in the marketplace. Our expertise from special projects, such as the safe decommissioning of nuclear power stations,  is put to use in the development of our dry drilling product range. The TYROLIT dry drilling system is the first commercial system on the market that ensures easy and cost efficient drilling in reinforced concrete. Clean work and excellent
results in reinforced and unreinforced concrete guaranteed. TYROLIT core drill bits are designed to work perfectly with TYROLIT Hydrostress machines.

Selecting the right dry drill bit

Service

• From a diameter of 82 mm onwards an additional distance washer is included for optional use of a vacuum-suction hood

Information / Recommendations

• For use with drilling motors within the range of 1 000 – 2 000 W with or without soft impact
• Do not use rotary hammer drills as it will destroy the tool
• Follow the safety and user instructions packed with the tool
• On request these safety instructions may also be sent separately

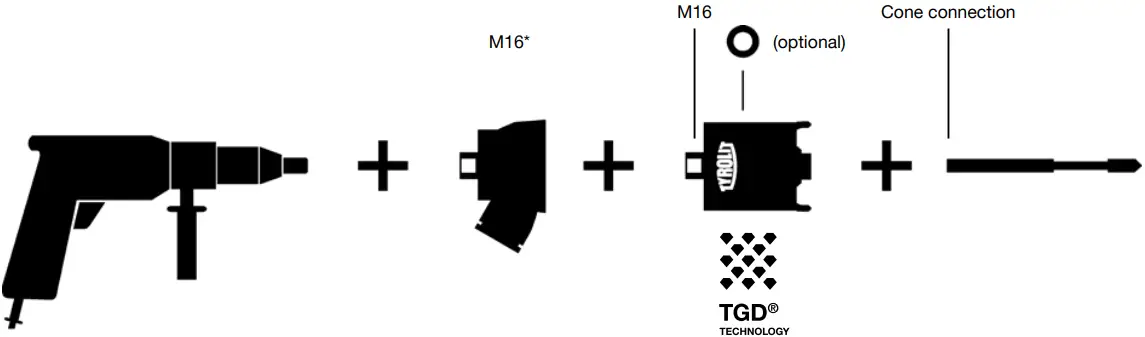

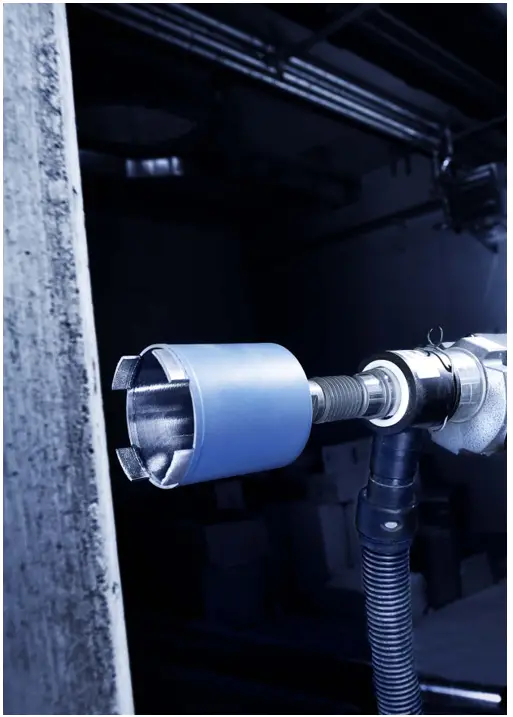

Dry drilling with compact universal dust extraction system

*Adapter suitable for all common machines (5/8″, HEX SW12, SDS, M18) see page 12.

DDL-HH-FAST CUT Dry drill bits

for lightly reinforced concrete & masonry | in TGD® -Technology

The fastest, longest and lightest TYROLIT dry drill bit for hand-guided applications. The thread form of the steel tubes enables easy removal of the drilling dust via the extraction system. Spiral grooves ensure a noticeable weight  reduction.
Furthermore, the dry drill bits are specially adapted to core drilling with soft-impact function and therefore in combination with the TYROLIT DME19DP drill motor the perfect solution for hand-guided dry drilling applications.

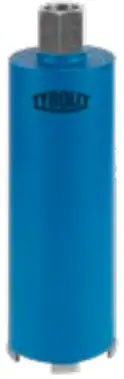

DDL-HH-FAST CUT Dry drill bits for lightly reinforced concrete & masonry | in TGD® -Technology

HOHLTR

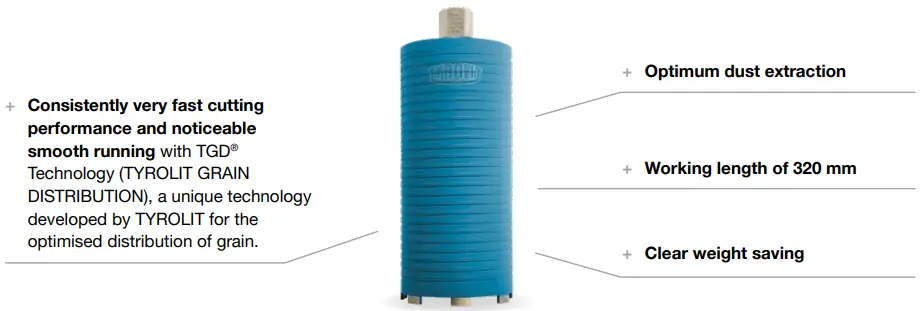

DDL-HH-FAST CUT Dry drill bits
for lightly reinforced concrete & masonry | in TGD® -Technology

HOHLTR

DDM-HH-FAST CUT Dry drill bits
for lightly reinforced concrete & masonry with abrasive aggregates | in TGD® -Technology
The fastest, longest and lightest TYROLIT dry drill bit for hand-guided applications. The thread form of the steel tubes enables easy removal of the drilling dust via the extraction system.
Spiral grooves ensure a noticeable weight reduction.  Furthermore, the dry drill bits are speciallyadapted  to core drilling with soft-impact function and therefore in combination with the TYROLIT DME19DP drill motor the ideal solution  for hand-guided dry drilling applications with longer life time than the DDL-HH-FAST CUT.

HOHLTR

DDL-HH Dry drill bits
for lightly reinforced concrete & masonry | in TGD® -Technology

The PREMIUM dry drill bit for hand-guided drilling inspires in solid design with the ideal working length of 280 mm and unique segments for the highest safety requirements.
With TGD® -Technology (TYROLIT GRAIN DISTRIBUTION), a unique technology developed by TYROLIT for the optimised distribution of grain.

HOHLT

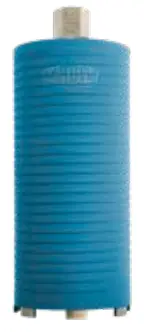

DDL Dry drill bits

for lightly reinforced concrete & masonry | in TGD® -Technology
The newly developed PREMIUM dry drill bit for hand-guided drilling impresses in many respects. With TGD® -Technology (TYROLIT GRAIN

HOHLT

DDE Dry drill bits
for lightly reinforced concrete & masonry | in TGD® -Technology
Perfect tool for installing sockets and junction boxes as well as smaller breakthrough jobs.

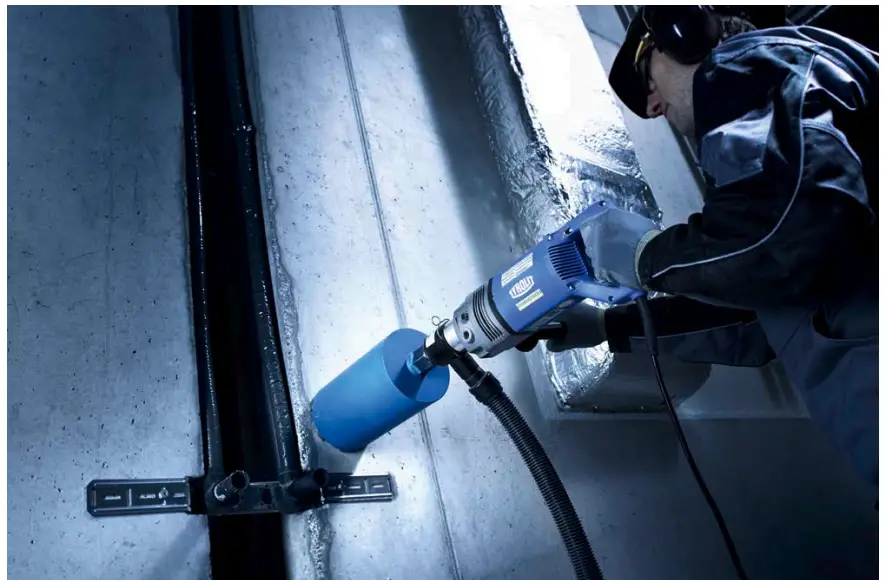

The DDE dry drill bit in use.
Scan the QR code and be amazed.

https://l.ead.me/bcj4ay

DDL Dry drill bits
for lightly reinforced concrete & masonry
Quality tool for daily use, impressive performance and lifetime.

Accessories

	Type no.	Machine connection	Drill bit connection	Total length/Pilot drills/ Centering spikes	Comment
	850026	3/4″	M16 Male	Length 100 mm Pilot drill SDS
	762477	3/4″ M16	M16 Male	Length 85 mm Pilot drill SDS
	850011	HEX SW12-SDS	M16 Male	Length 115 mm Pilot drill SDS
	762471	HEX SW12-SDS.	M16 Male	Length 120 mm Pilot drill SDS
	116264	HEX SW12	M16 Male	Length 90 mm Pilot drill Konus
	707824	3/4″	M16 Male	Length 75 mm Centering spike 120/233 mm
	707827	HEX SW12	M16 Male	Length 100 mm Centering spike 120/233 mm
	707831	SDS	M16 Male	Length 100 mm Centering spike 120/233 mm
	707834	M18	M16 Male	Length 75 mm Centering spike 120/233 mm
	718330	3/4″	M16 Male	Length 300 mm	Extension
	718329	3/4″	M16 Male	Length 450 mm	Extension
	718324	HEX SW12	M16 Male	Length 300 mm	Extension

Compact universal dust extraction system

	Type no.	Description	Product info
	10983964	Dust extraction adapter with M16 connection	For attaching an industrial vacuum cleaner
	10983845	Centering spike 140 mm	Core drill UL 60/70 mm only for 10983964
	10986189	Centering spike 233 mm	DME19 Core drill UL 150 mm

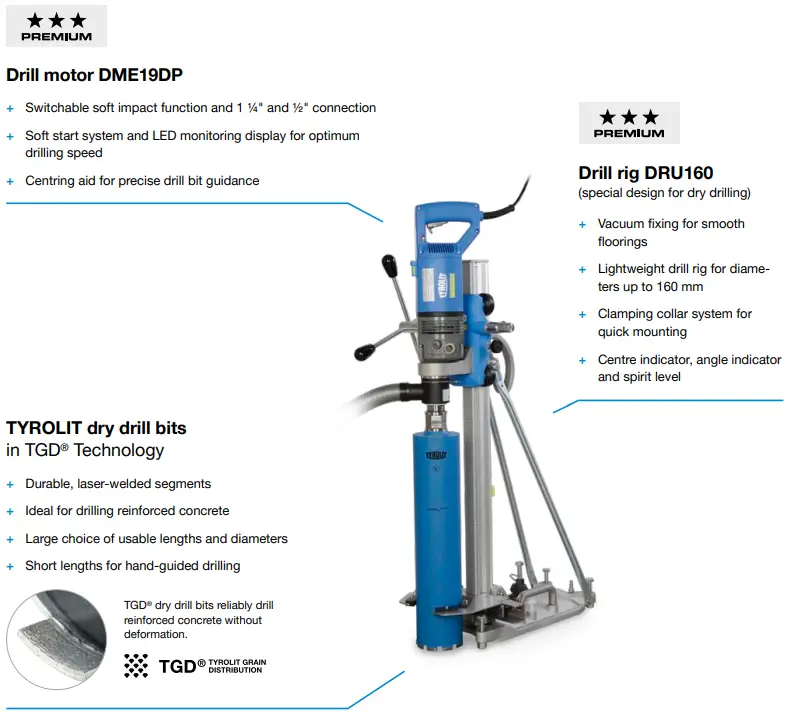

Drill motor DME19DP

Core drilling up to Ø 162 mm

The DME19DP in conjunction with TYROLIT TGD® dry drill bits is the solution for dry drilling applications in reinforced concrete. The practical centring aid ensures precise drill bit guidance and a longer diamond tool lifetime. Switchable soft impact function accelerates work progress, 0particularly in hard materials. The soft start and the LED indicator aid the user in selecting the optimal drilling speed.

System & Accessories

System & Accessories

Drill motor DME17DP
Core drilling up to Ø 200 mm

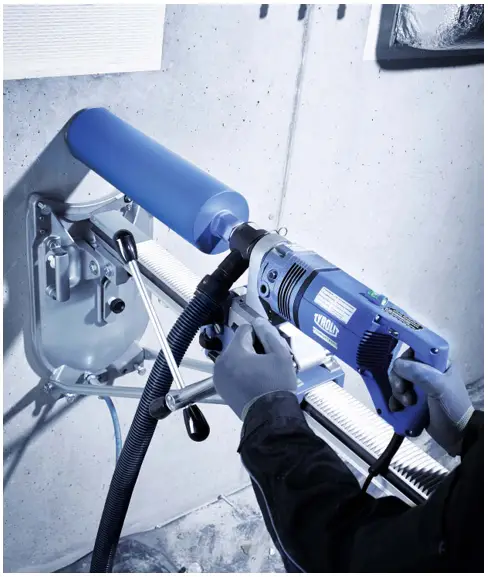

The DME17 is a 2-speed dry drill motor for drilling diameters up to 200 mm. The powerful 2.0 kW motor, in combination with the switchable soft impact, enhances the drilling performance in reinforced concrete and in other hard  materials. The machine can be both hand-held and drill-rig operated. The compact design, low weight and integrated dust extraction system makes the core drill very user-friendly. This model is unique in that it is available in three speed  versions (standard, slow and quick) and thus optimally covers the most varied of customer needs.

System & Accessories

System & Accessories
