TME1000 Masonry Saw
MACHINES

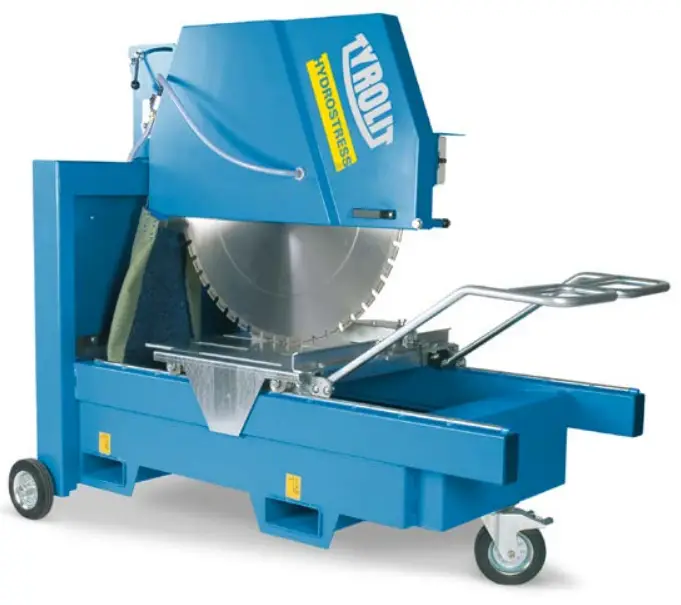

Masonry saw TME1000
Cutting depth up to 380 mm
Large cutting depths to 380 mm possible (with saw blade Ø 1 000 mm)

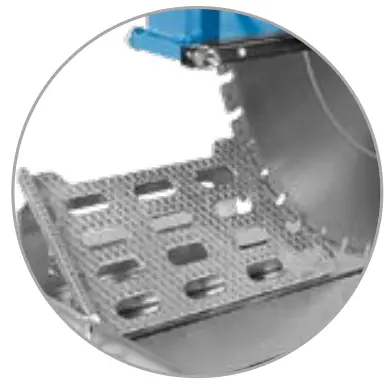

Precise mitre cutting due to mitre stop

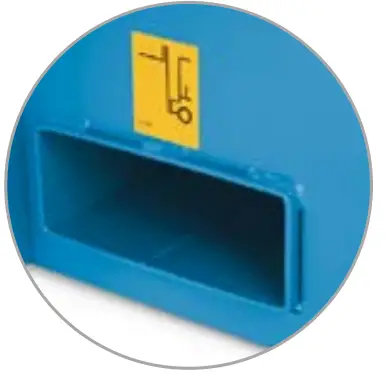

Fork lift guides for easy and secure transport
The TME1000 convinces through maximum stability and robustness. The precise stainless-steel saw table guide guarantees a clean cut. Construction-site suitable leading pulleys, forklift guides and a crane hook ensure trouble-free transport.
The intelligent blade guard construction enables quick and easy blade installation. Servicing requirements are reduced to a minimum due to low-maintenance saw blade drive via a transmission.
System & Accessories
Technical data
Saw blade
| Max. cutting depth | 380 mm |
| Max. saw blade Ø | 1 000 mm |
| Cutting length | 660 mm |
| Saw blade speed | 910 rpm |
| Saw blade holder Ø | 60 mm |
| Carrier Ø | 11.5 mm |
| Reference circle Ø | 120 mm |
Drive
| Drive / motor | Electric |
| Output | 7.5 kW |
| Standard voltage / frequency | 400 V / 50 Hz |
| Engine cooling | Air cooling |
| Saw blade drive | Via gears |
Design
- Infinitely adjustable cutting depths
- Angle cutting function (angle stop)
- Mitre cutting function (optional mitre stop)
- Transport hook and fork lift guides
- Pull-out water tank
- Electric water pump
Dimensions & Weight
| Length | 1 800 mm |
| Width | 1 030 mm |
| Height | 1 500 mm |
| Weight | 324 kg |
System & Accessories
Masonry saw TME1000
10989800 ……… Masonry saw TME1000 / 400 V
Accessories
10978735 ……………… Mitre stop (Jolly table)
Tool recommendation
34171031 ……………….. PREMIUM TSU Table saw blade
