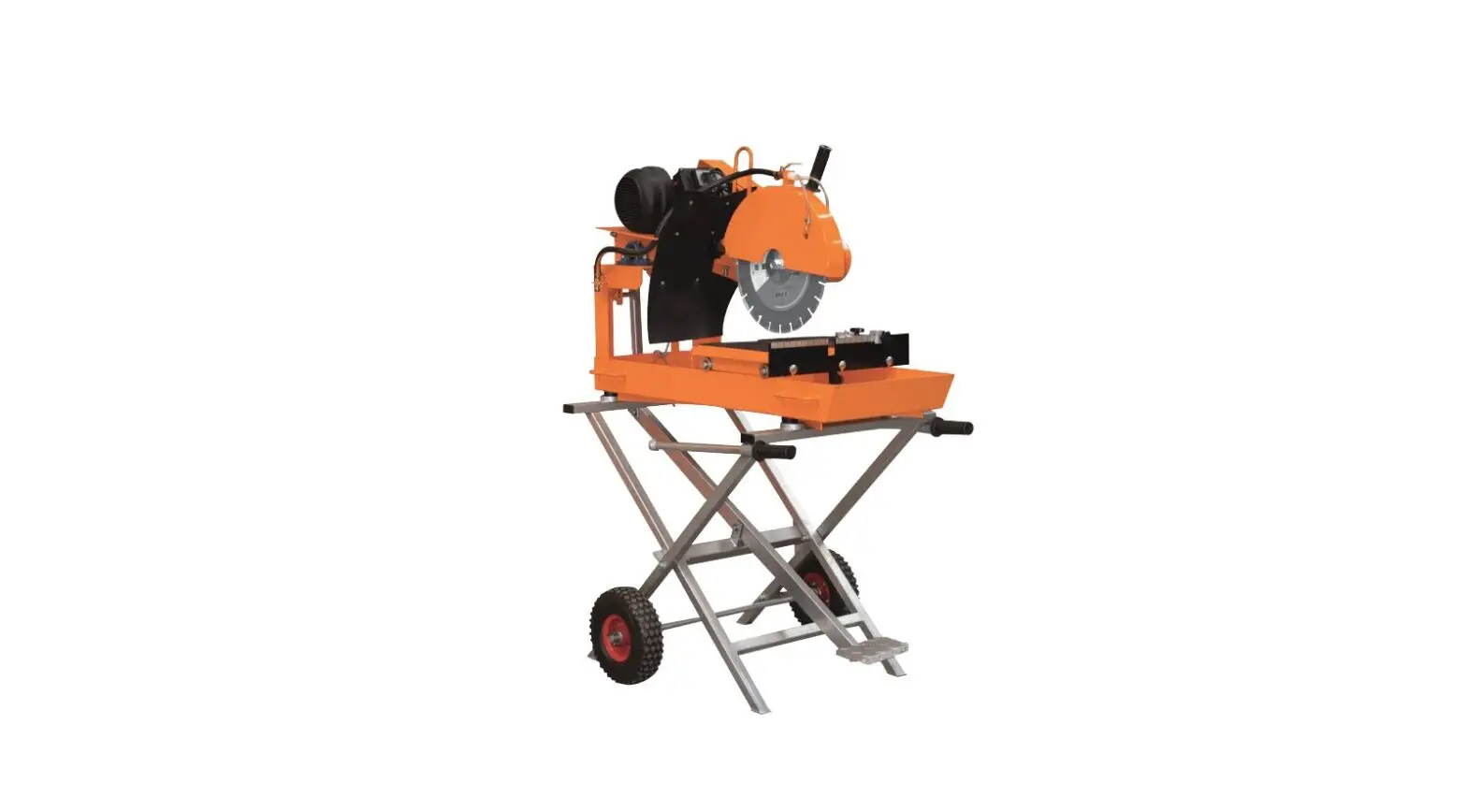

FBS-36E Flextool Brick and Masonry Saw Instruction Manual

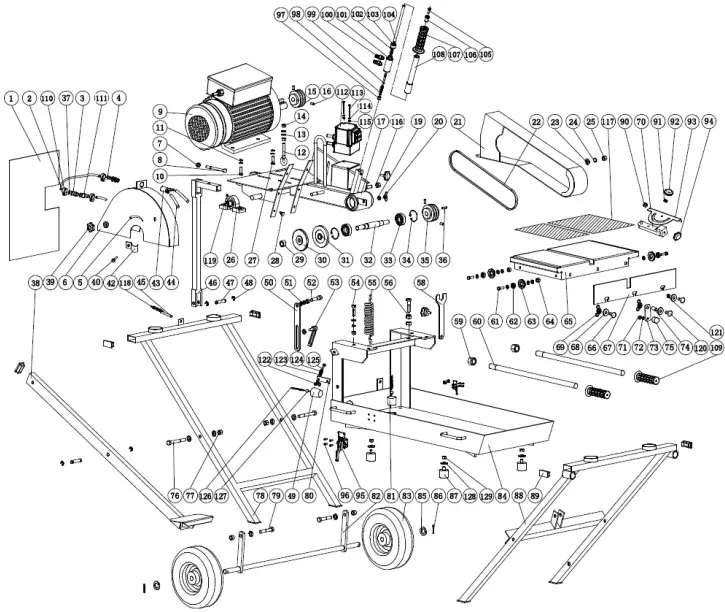

FLEXTOOL SPARE PARTS MANUAL

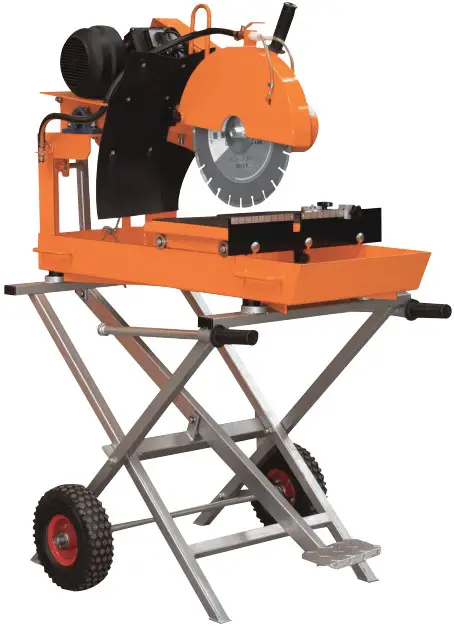

Brick & Masonry Saw (FBS-36E)
| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS11116-UNIT | FLX WATER CURTAIN (BS-101116) | 1 | |
| 2 | NPS00222-UNIT | FLX FLEXIBLE CONDUIT L=450 1.2M (BS-100222) | 1 | |
| 3 | NPS01117-UNIT | FLX QUICK CONNECTOR FITTING (BS-101117) | 1 | |
| 4 | NPS00399-UNIT | FLX WATER VALVE (BS-100399) | 1 | |
| 5 | NPS01118-UNIT | FLX ARROW LABEL (BS-101118) | 1 | |
| 6 | NPS01209-UNIT | FLX BLADE COVER (BS-101209) | 1 | |
| 7 | NPS01120-UNIT | FLX LOCK NUT M10 (BS-101120) | 2 | |
| 8 | NPS01121-UNIT | FLX SLIPKNOT BOLTS (BS-101121) | 2 | |
| 9 | NPS00155-UNIT | FLX ELECTRIC MOTOR (BS-101122) | 1 | |
| NPS00157-UNIT | FLX ELECTRIC MOTOR CAPACITOR – START (BS-101250) | 1 | ||
| NPS00156-UNIT | FLX ELECTRIC MOTOR CAPACITOR – RUN (BS-101251) | 1 | ||
| NPS00152-UNIT | FLX ELECTRIC MOTOR CAPACITOR BOX – COMPLETE (BS-101252) | 1 | ||
| NPS00153-UNIT | FLX ELECTRIC MOTOR FAN COWLING/SHROUD (BS-101253) | 1 | ||
| NPS00154-UNIT | FLX ELECTRIC MOTOR FAN (BS-101254) | 1 | ||
| 10 | NPS01123-UNIT | FLX HEX BOLT M8 X 30MM (BS-101123) | 2 | |
| NPS07228-UNIT | FLX WASHER M8 (BS-101124) | 4 | ||
| 11 | NPS01125-UNIT | FLX SPRING WASHERS M8 (BS-101125) | 4 | |
| 12 | NPS01126-UNIT | FLX HOOK (BS-101126) | 1 | |
| 13 | NPS01127-UNIT | FLX SPRING WASHERS (BS-101127) | 1 | |
| 14 | NPS01128-UNIT | FLX HEX NUT M10 (BS-101128) | 1 | |
| 15 | NPS01129-UNIT | FLX MOTOR PULLEY – DOUBLE VEE (BS-101129) | 1 | |
| 16 | NPS01130-UNIT | FLX GRUB SCREW (BS-101130) | 4 | |
| 17 | NPS01210-UNIT | FLX DRIVE MOUNTING FRAME ASSEMBLY. (BS-101210) | 1 | |
| 19 | NPS01124-UNIT | FLX WASHER M8 (BS-101124) | 1 | |
| 20 | NPS01133-UNIT | FLX WING NUT M8 (BS-101133) | 1 | |
| 21 | NPS01134-UNIT | FLX BELT COVER (BS-101134) | 1 | |
| 22 | NPS01135-UNIT | FLX V BELT (BS-101135) | 2 | |
| 23 | NPS01136-UNIT | FLX WASHER 12MM (BS-101136) | 1 | |
| 24 | NPS01137-UNIT | FLX SPRING WASHERS 12MM (BS-101137) | 1 | |
| 25 | NPS01138-UNIT | FLX HEX NUT M12 (BS-101138) | 2 | |
| 26 | NPS01139-UNIT | FLX PILLOW BLOCK / BEARING (BS-101139) | 2 | |
| 27 | NPS01140-UNIT | FLX HEX BOLT M8 X 40MM (BS-101140) | 2 | |
| 28 | NPS01141-UNIT | FLX PLASTIC BUTTON – RETAINER (BS-101141) | 6 | |
| 29 | NPS01142-UNIT | FLX LEFTHAND THREADED NUT (BS-101142) | 1 | |
| 30 | NPS01143-UNIT | FLX OUTSIDE PRESSURE FLANGE (BS-101143) | 1 | |
| 31 | NPS01144-UNIT | FLX INSIDE PRESSURE FLANGE (BS-101144) | 1 | |
| 32 | NPS01145-UNIT | FLX MAIN SHAFT (BS-101145) | 1 | |
| 33 | NPS01146-UNIT | FLX BEARING 6304-2RS (BS-101146) | 2 | |
| 34 | NPS01147-UNIT | FLX CIR-CLIP (BS-101147) | 2 | |
| 35 | NPS01148-UNIT | FLX SPINDLE PULLEY – DOUBLE VEE. (BS-101148) | 1 | |
| 36 | NPS01149-UNIT | FLX KEY 5 X 32MM (BS-101149) | 2 | |
| 37 | NPS01150-UNIT | FLX O-RING (BS-101150) | 1 | |
| 38 | NPS01151-UNIT | FLX PEDAL – FRAME (BS-101151) | 1 | |
| 39 | NPS77603-UNIT | FLX KNOB (BS-101152) | 1 | |
| 40 | NPS01153-UNIT | FLX HEXAGON HEAD TAPPING SCREWS (BS-101153) | 2 | |
| 42 | NPS00386-UNIT | FLX SADDLE CLAMP (BS-100386) | 2 | |
| 43 | NPS00384-UNIT | FLX Y-FITTING (BS-100384) | 1 | |
| 44 | NPS00385-UNIT | FLX PVC FLEXIBLE CONDUITΦ6X2(0.4M) (BS-100385) | 2 | |
| 45 | NPS11116-UNIT | FLX CONNECTING PIN (BS-101116) | 1 | |
| 46 | NPS59050-UNIT | FLX PIVOT BAR – ASSEMBLY (BS-101155) | 1 | |
| 47 | NPS59043-UNIT | FLX PIVOT PIN (BS-101156) | 2 | |
| 48 | NPS59036-UNIT | FLX CIR-CLIP (BS-101157) | 4 | |
| 49 | NPS01158-UNIT | FLX RUBBER STOPPER (BS-101158) | 1 | |
| 50 | NPS01159-UNIT | FLX PIVOT LOCKING BAR (BS-101159) | 1 | |
| 51 | NPS77566-UNIT | FLX FLAT WASHER 10 (BS-101160) | 2 | |
| 52 | NPS01161-UNIT | FLX HEX BOLT M10 X 30MM (BS-101161) | 1 | |
| NPS07248-UNIT | FLX LOCKNUT M10 (BS-101162) | 1 | ||
| 53 | NPS01163-UNIT | FLX TIGHTEN HANDLE (BS-101163) | 2 | |
| 54 | NPS01164-UNIT | FLX HEX BOLT M10 X 40MM (BS-101164) | 4 | |
| NPS77566-UNIT | FLX WASHER 10MM (BS-101160) | 4 | ||
| NPS07684-UNIT | FLX SPRING WASHER 10MM (BS-101165) | 4 | ||
| NPS07640-UNIT | FLX HEX NUT M10 (BS-101166) | 4 | ||
| 55 | NPS01167-UNIT | FLX TENSION – SPRING (BS-101167) | 1 | |
| 56 | NPS01168-UNIT | FLX HEX BOLT M12 X 50MM (BS-101168) | 1 | |
| NPS01138-UNIT | FLX HEX NUT M12 (BS-101138) | 2 | ||
| 58 | NPS01171-UNIT | FLX WRENCH (BS-101171) | 1 | |
| 59 | NPS01172-UNIT | FLX LOCKNUT M22 (BS-101172) | 2 | |
| 60 | NPS58985-UNIT | FLX SLIDE HANDLE (BS-101173) | 2 | |
| 61 | NPS01174-UNIT | FLX HEX BOLT M8 X 25MM (BS-101174) | 2 | |
| NPS01124-UNIT | FLX FLAT WASHER 8MM (BS-101124) | 4 | ||
| 62 | NPS01175-UNIT | FLX BEARING (BS-101175) | 4 | |
| 63 | NPS01176-UNIT | FLX TRACK ROLLER (BS-101176) | 4 | |
| 64 | NPS01177-UNIT | FLX LOCKNUT M8 (BS-101177) | 4 | |
| 65 | NPS01211-UNIT | FLX SLIDING TABLE (BS-101211) | 1 | |
| 66 | NPS01179-UNIT | FLX CUP HEAD SQUARE NECK BOLTS (BS-101179) | 1 | |
| 67 | NPS01180-UNIT | FLX POSITIONING BOARD (BS-101180) | 1 | |
| 68 | NPS01181-UNIT | FLX FLAT WASHER 10MM (BS-101181) | 3 | |
| 69 | NPS77559-UNIT | FLX BUTTERFLY NUT M10 (BS-101183) | 3 | |
| 70 | NPS00563-UNIT | FLX MITRE BASE (BS-100563) | 1 | |
| 71 | NPS01184-UNIT | FLX NUT M6 (BS-101184) | 1 | |
| 72 | NPS01185-UNIT | FLX SPRING WASHER 10MM (BS-101185) | 1 | |
| 73 | NPS01186-UNIT | FLX TRAVEL CART STOP TAG (BS-101186) | 1 | |
| 74 | NPS01187-UNIT | FLX HEX SET (BS-101187) | 1 | |
| 75 | NPS00478-UNIT | FLX RUBBER HAT (BS-100478) | 1 | |
| 76 | NPS01188-UNIT | FLX HEX BOLT M12 X 90MM (BS-101188) | 2 | |
| NPS07255-UNIT | FLX FLAT WASHER 12MM (BS-101189) | 4 | ||
| 77 | NPS01190-UNIT | FLX LOCKNUT M12 (BS-101190) | 2 | |
| 78 | NPS01191-UNIT | FLX RIGHT LEG – FRAME (BS-101191) | 1 | |
| 79 | NPS01192-UNIT | FLX HEX BOLT M12 X 65MM (BS-101192) | 2 | |
| NPS07255-UNIT | FLX WASHER 12MM (BS-101189) | 2 | ||
| NPS01190-UNIT | FLX LOCKNUT M12 (BS-101193) | 2 | ||
| 80 | NPS01194-UNIT | FLX HOOK PLATE (BS-101194) | 1 | |
| 81 | NPS01195-UNIT | FLX RUBBER PLUG 10 (BS-101195) | 1 | |
| 82 | NPS01196-UNIT | FLX WHEEL AXLE – ASSEMBLY (BS-101196) | 1 | |
| 83 | NPS01197-UNIT | FLX WHEEL (BS-101197) | 2 | |
| 84 | NPS01212-UNIT | FLX MAIN FRAME – ASSEMBLY (BS-101212) | 1 | |
| 85 | NPS01199-UNIT | FLX FLAT WASHER 20MM (BS-101199) | 4 | |
| 86 | NPS01200-UNIT | FLX SPLIT PIN (BS-101200) | 2 | |
| 87 | NPS01201-UNIT | FLX RUBBER MOUNT (BS-101201) | 4 | |
| NPS01202-UNIT | FLX WASHER 10MM (BS-101202) | 4 | ||
| NPS01203-UNIT | FLX HEX NUT M10 (BS-101203) | 4 | ||
| 88 | NPS01204-UNIT | FLX LEFT LEG FRAME – ASSEMBLY (BS-101204) | 1 | |
| 89 | NPS01205-UNIT | FLX RECTANGULAR PLASTIC CAP. (BS-101205) | 5 | |
| 90 | NPS01206-UNIT | FLX HEX NUT M8 (BS-101206) | 1 | |
| 91 | NPS00562-UNIT | FLX STELLATE KNOB (BS-100562) | 3 | |
| 92 | NPS01207-UNIT | FLX FLAT WASHER (BS-101207) | 1 | |
| 93 | NPS00561-UNIT | FLX ANGLE GAGE (BS-100561) | 1 | |
| 94 | NPS00296-UNIT | FLX STELLATE KNOB (BS-100296) | 1 | |
| 95 | NPS01213-UNIT | FLX LATCH TYPE CLAMPS (BS-101213) | 2 | |
| 96 | NPS01214-UNIT | FLX HEXAGON SOCKET HEAD CAP SCREWS (BS-101214) | 12 | |
| 97 | NPS01216-UNIT | FLX WATER PIN – THREAD NUT (BS-101216) | 1 | |
| 98 | NPS01217-UNIT | FLX COMPRESSION SPRING (BS-101217) | 1 | |
| 99 | NPS01218-UNIT | FLX VALVE PLUG (BS-101218) | 1 | |
| 100 | NPS12191-UNIT | FLX BARBED WATER – FITTING (BS-1012191) | 2 | |
| 101 | NPS01220-UNIT | FLX VALVE BODY (BS-101220) | 1 | |
| 102 | NPS01221-UNIT | FLX O-RINGS (BS-101221) | 2 | |
| NPS01222-UNIT | FLX CHECK RING (BS-101222) | 3 | ||
| 103 | NPS01223-UNIT | FLX NUT (BS-101223) | 1 | |
| 104 | NPS01224-UNIT | FLX PUSH ROD (BS-101224) | 1 | |
| 105 | NPS01225-UNIT | FLX SLOTTED ROUND HEAD SCREW (BS-101225) | 1 | |
| 106 | NPS01226-UNIT | FLX BUTTON (BS-101226) | 1 | |
| 107 | NPS01227-UNIT | FLX GRIP (BS-101227) | 1 | |
| 108 | NPS01228-UNIT | FLX HANDLEBAR (BS-101228) | 1 | |
| 109 | NPS01132-UNIT | FLX GRIP (BS-101132) | 2 | |
| 110 | NPS01601-UNIT | FLX HOSE CLAMP (BS-101229) | 4 | |
| 111 | NPS01602-UNIT | FLX WATER HOSE CONNECTOR (BS-101230) | 1 | |
| 112 | NPS00151-UNIT | FLX SWITCH (BS-101231) | 1 | |
| 113 | NPS01603-UNIT | FLX CROSS HEAD SCREW (BS-101232) | 2 | |
| 114 | NPS01604-UNIT | FLX WASHER (BS-101233) | 2 | |
| 115 | NPS07521-UNIT | FLX HEX NUTS M5 (BS-101234) | 2 | |
| 116 | NPS01138-UNIT | FLX HEX NUTS M12 (BS-101138) | 2 | |
| 117 | NPS01605-UNIT | FLX WATER CURTAIN 0.7875 (BS-101236) | 1 | |
| 118 | NPS01606-UNIT | FLX STEEL CHAIN (BS-101237) | 1 | |
| 119 | NPS01608-UNIT | FLX NOZZLE (BS-101238) | 1 | |
| 120 | NPS01609-UNIT | FLX ROUND HEAD SCREW M10 (BS-101239) | 1 | |
| 121 | NPS01128-UNIT | FLX HEX SCREW M10 (BS-101128) | 1 | |
| 122 | NPS01791-UNIT | FLX NUTS M10 (BS-101241) | 1 | |
| 123 | NPS01184-UNIT | FLX NUT M6 (BS-101242) | 1 | |
| 124 | NPS07267-UNIT | FLX WASHER (BS-101243) | 2 | |
| 125 | NPS01610-UNIT | FLX HEX SCREW M6 (BS-101244) | 1 | |
| 126 | NPS01611-UNIT | FLX KEY RING (BS-101245) | 2 | |
| 127 | NPS01612-UNIT | FLX RING (BS-101246) | 2 | |
| 128 | NPS01613-UNIT | FLX WASHER (BS-101247) | 4 | |
| 129 | NPS01128-UNIT | FLX HEX NUTS M10 (BS-101248) | 4 |
