FLEX FX2241-Z Recip Saw
Product Information
The Recip Saw Model Number: FX2241-Z is a powerful cutting tool designed for construction and renovation projects. The saw features a durable body with a hexagon lobular screw for easy assembly. It also includes an LED lampshade for improved visibility in low-light conditions. The dust board assembly helps to minimize mess and keep your workspace clean while you work. The L R housing set provides a comfortable grip for extended use, and the rubber pole helps to reduce vibrations and increase accuracy. The push button allows for easy operation, while the electric assembly and DC motor provide reliable power for efficient cutting. The gear case assembly and needle bearing ensure smooth operation, while the gear case cover assembly protects the internal components from debris and damage. Finally, the supporting assembly provides stability and balance during use.
Product Usage Instructions
- Attach the hexagon lobular screw to the body of the Recip Saw.
- Attach the LED lampshade to the top of the saw.
- Attach the dust board assembly to the bottom of the saw.
- Attach the L R housing set to the handle of the saw.
- Attach the rubber poles to the handle of the saw.
- Attach the push button to the handle of the saw.
- Attach the electric assembly to the body of the saw.
- Attach the DC motor to the body of the saw.
- Attach the gear case assembly to the body of the saw.
- Attach the needle bearing to the gear case assembly.
- Attach the gear case cover assembly to the body of the saw.
- Attach the supporting assembly to the bottom of the saw.
- Ensure all components are securely attached and tightened.
- Turn on the Recip Saw using the push button.
- Place the saw blade onto the material to be cut.
- Apply gentle pressure and guide the saw along the cutting path.
- Turn off the saw and disconnect from power source when finished.
- Clean and store the saw in a dry and safe place.

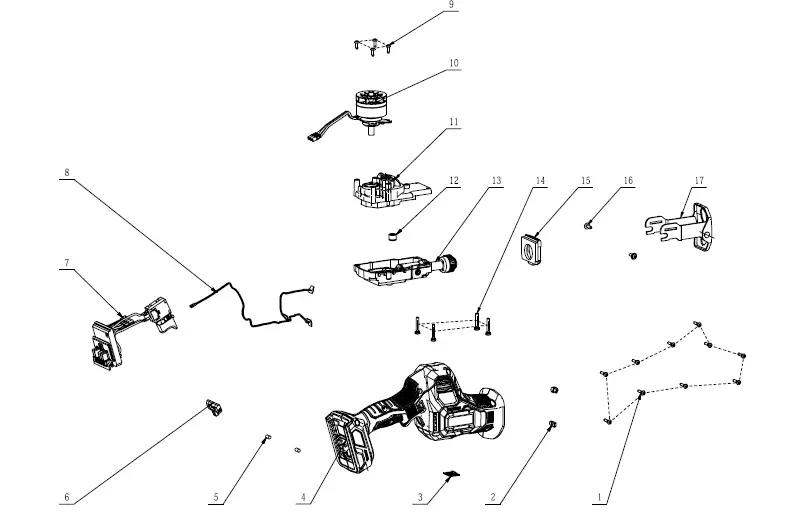

Product Parts
Product Description: Recip Saw
Model Number: FX2241-Z
Body Number: 0780047001
Version: A
Issue Date: 2022/02/11
| No. | Product Model# | Part Number | Description | Qty |
| 1 | FX2241-Z | 5610225001 | Hexagon Lobuar Screw | 10 |
| 2 | FX2241-Z | 3132889001 | LED Lampshade | 2 |
| 3 | FX2241-Z | 3402951001 | Dust Board Assembly | 1 |
| 4 | FX2241-Z | 2828898001 | L R Housing Set | 1 |
| 5 | FX2241-Z | 3123928002 | Rubber Pole | 2 |
| 6 | FX2241-Z | 3132885001 | Push Button | 1 |
| 7 | FX2241-Z | 2831120001 | Electric Assembly | 1 |
| 8 | FX2241-Z | 2831121001 | LED Electric Assembly | 1 |
| 9 | FX2241-Z | 5620164008 | Hexagon Socket Screw | 4 |
| 10 | FX2241-Z | 2730354001 | DC Motor | 1 |
| 11 | FX2241-Z | 2790674001 | Gear Case Assembly | 1 |
| 12 | FX2241-Z | 5700520001 | Needle Bearing | 1 |
| 13 | FX2241-Z | 2790676001 | Gear Case Cover Assembly | 1 |
| 14 | FX2241-Z | 5610839001 | Screw and Washer Assembly | 4 |
| 15 | FX2241-Z | 3132883001 | Seal Cover | 1 |
| 16 | FX2241-Z | 5610404001 | Hexalobular Socket Pan Head Flange | 2 |
| 17 | FX2241-Z | 2828653001 | Supporting Assembly | 1 |
