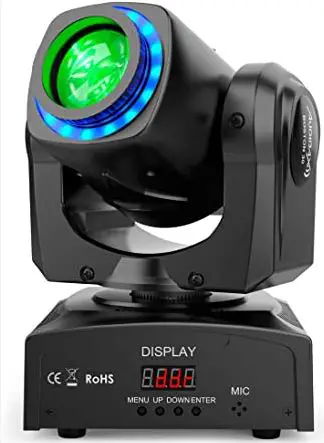

AUDIBAX Boston 30
AUDIBAX Boston 30
Function Description
| Addr | A001-A512 | 512 Address setting |
| CHnd | 12CH | 12 channel setting |
| 10CH | 10 channel setting | |
| SLnd | Auto | Host mode |
| SL 1 | Console mode | |
| SL 2 | Secondary mode | |
|
SHnd | SH 0 | Effect 0 (recommended) |
| SH 1 | Effect 1 | |
| SH 2 | Effect 2 | |
| SH 3 | Effect 3 | |
| Soud | on | Voice activated |
| oFF | Voice off | |
| SEnS | 0-99 | Voice-activated sensitivity adjustment |
|
bLnd | bLAc | No 512 signal return to zero |
| Auto | No 512 signal self-propelled | |
| Soun | No 512 signal sound | |
| HoLd | No 512 signal keeps last console state | |
| LEd | OFF | After 5 seconds off the screen |
| ON | The screen is always on | |
| dISP | no | Display reverse |
| YES | Display positive | |
| rPAN | no | X motor forward |
| YES | X motor reversal | |
| rTiL | no | Y motor forward |
| YES | Y motor reversal | |
| REST | YES | System reset |
12 Channel
| CH | Features | Instructions |
| 1 | Horizontal operation | 0-255 |
| 2 | Horizontal fine-tune | 0-255 |
| 3 | Vertical operation | 0-255 |
| 4 | Vertical fine-tune | 0-255 |
| 5
| Color | 0-9 White |
| 10-139 Color selection | ||
| 140-255 Automatic color change from slow to fast | ||
| 6 |
Gobo | 0-7 White |
| 8-63 Fixed gobo | ||
| 64-127 Shaking gobo | ||
| 128-255 Automatic change pattern from slow to fast | ||
| 7 | Strobe | 0-255 |
| 8 | Dimming | 0-255 |
| 9 | Motor speed | 0-255 from fast to slow |
| 10 | Automatic mode | 0-59 Other channels function |
| 60-84 Automatic mode3 | ||
| 85-109 Automatic mode2 | ||
| 110-134 Automatic mode1 | ||
| 135-159 Automatic mode0 | ||
| 160-184 Voice-control mode3 | ||
| 185-209 Voice-control mode2 | ||
| 210-234 Voice-control mode1 | ||
| 235-255 Voice-control mode0 | ||
| 11 | Reset | 250-255（5S） |
| 12 | Light strips | 5-109 Color selection 110-255 Color auto operation |
10 Channel
| Channel | Features | Instructions |
| 1 | Horizontal operation | 0-255 |
| 2 | Vertical operation | 0-255 |
| 3
|
color | 0-9 White |
| 10-139 Color selection | ||
| 140-255 Automatic color change from slow to fast | ||
| 4 |
Gobo | 0-7 White |
| 8-63 Fixed gobo | ||
| 64-127 Shaking gobo | ||
| 128-255 Automatic change pattern from slow to fast | ||
| 5 | Strobe | 0-255 |
| 6 | Dimming | 0-255 |
| 7 | Motor speed | 0-255 |
| 8 | Automatic mode | 0-59 Other channels function |
| 60-159 Automatic mode | ||
| 160-255 Voice-control mode | ||
| 9 | Reset | 250-255（5 seconds/segundos） |
| 10 | Light strips | 5-109 Color selection 110-255 Color auto operatio |
Technical parameters
Voltage: AC90-240V 50/60Hz
Power: 50W
Light source: 1PCS 30W white light 12PCS LED strip
Control mode: DMX512, Sound, Auto, Master-slave
