PRO15p Altavoz Pasivo
Instruction Manual
| MODEL: PRO12p Type: 2 way passive speakers Woofer: 12″ VC 75.5mm Magnet 60oz Tweeter: 1.35″ (34mm) Titanium RMS: 300W max 1000w Sensitivity (1m/1w): 98dB (+-2 dB) Nominal impedance: 8Ohm Frequency Response: 48Hz -20KHz (+-3dB) Input: 2 x Speakon Cross Over: 2500Hz 12dB/octave Speak socket: 2pcs speakon | MODEL: PRO15p Type: 2 way passive speakers Woofer: 15″ VC 75.5mm Magnet 60oz Tweeter: 1.75″ (44mm) Titanium RMS: 400W max 1500w Sensitivity (1m/1w): 98dB (+-2 dB) Nominal impedance: 8Ohm Frequency Response: 40Hz -20KHz (+-3dB) Input: 2 x Speakon Cross Over: 2600Hz 12dB/octave Speak socket: 2pcs speakon Trapezoidal enclosure for monitoring application. |
Please read the manual before using the product
Connections

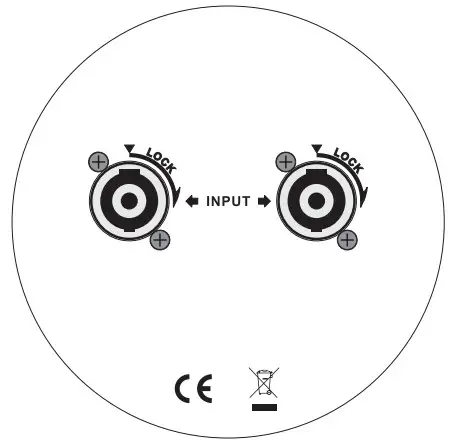

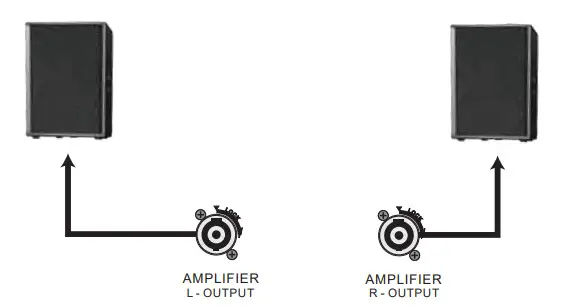

Connect passive speaker to the left and right pro amplifier using pro speaker cables with speakon connectors.
Note: Be sure to rotate the speakon connectors clockwise until they lock in place!
Speakon
- 1+ POSITIVE
- 1- NEGATIVE
- 2+ NOT USED
- 2- NOT USED

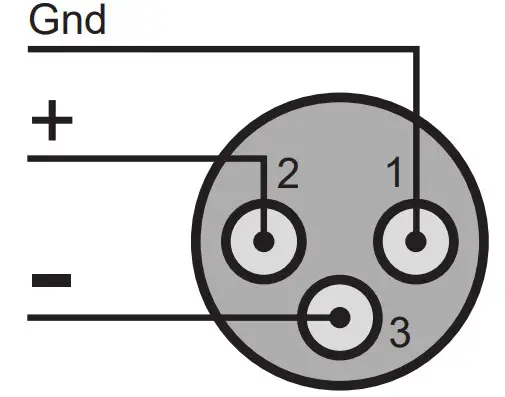

Balanced XLR
- GROUND
- HOT
- COLD
6.3mm Balanced Jack
| TIP | HOT |
| RING | COLD |
| SLEEVE | GROUND |

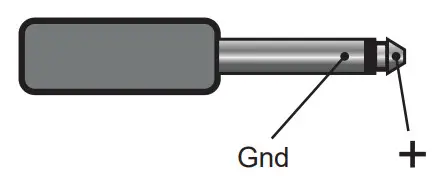

6.3mm Unbalanced Jack
| TIP | HOT |
| SLEEVE | GROUND |
