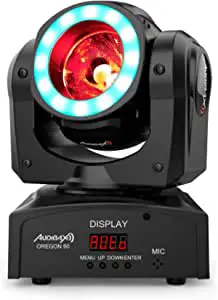

AUDIBAX Oregon 40 RGBW User Manual
11 Channel
| Channel | Funtion | Description |
| CH I | Sum Dimmer | Sum Dimmer, from dark to brightness |
| CH2 | Sum Strobe | Sum Strobe , 005-255 from slow to fast |
| CH3 | Function selection | 000-005: CHI-CH6 dmx controller |
| CH4 | Inner speed | Inner speed, from slow to fast |
| CH5 | R | R dimmer , from dork to brightness |
| CH6 | G | G dimmer , from dark to brightness |
| CH7 | B | B dimmer , from dark to brightness |
| CH8 | W | W dimmer , from dark to brightness |
| CH9 | SMD R | SMD R. from dark to brightness |
| CH 10 | SMD G | SMD G , from dark to brightness |
| CH I 1 | SMD B | SMD 13 , from dark to brightness |
Display Function
| N° | Menu | Data | Function |
| I | A001 | 001- 512 | DmX512 address setup |
| 2 | 7cH | 7/11 | Channel setup, 7CH,11CH |
| 3 | Au01-9 | 1-10 | 1-9 inner auto function, Sound effect |
| 4 | SPOO | 00-20 | Auto speed selection |
| 5 | F255 | 000 – 255 | Strobe from slow to fast |
| 6 | r255 | 000 – 255 | R dimmer, from dark to brightness |
| 7 | G255 | 000 – 255 | G dimmer, from dark to brightness |
| 8 | b255 | 000 – 255 | B dimmer, from dark to brightness |
| 9 | u255 | 000 – 255 | W dimmer, from dark to brightness |
Channel Mode/ 7 channel
| Channel | Function | Description |
| CHI | R | R dimmer, from dark to brightness |
| CH2 | G | G dimmer, from dark to brightness |
| CH3 | B | B dimmer, from dark to brightness |
| CH4 | W | W dimmer, from dark to brightness |
| CH5 | SMD R | SMD R. from dark to brightness |
| CH6 | SMD G | SMD G. from dark to brightness |
| CH7 | SMDB | SMD B. from dark to brightness |
