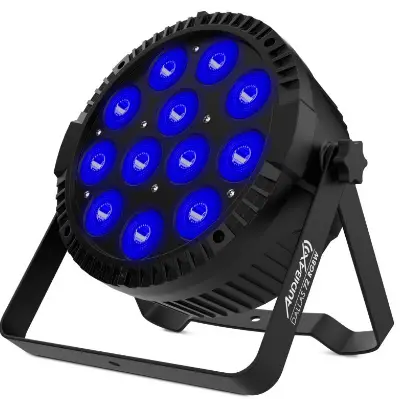

AUDIBAX DALLAS 72 RGBW
Please read the manual before using the product
DMX 512 Channel Description
| No. | Display | Function Description |
| 1 | d001 | Address code（001－512） |
| 2 | 8Ch 4Ch | 8、4 channel selection |
| 3 | Au01 —— Au08 Au09 Au10 So01 So02 | Au01- Au08 Fixed color selection
Au09 Jump Au10 Gradient So01 Sound 1 So02 Sound 2 |
| 4 | St00 St01 —— St16 | St00 No strobe St01-St16 Strobe from slow to fast |
| 5 | SP00 SP01 —— SP16 | SP00 SP01-SP16 Auto speed from slow to fast |
| 6 | r255 | Red color selection（000－255） |
| 7 | G255 | Green color selection（000－255） |
| 8 | b255 | Blue color selection（000－255） |
| 9 | u255 | White color selection（000－255） |
8 Channel
| No. | Function | Description |
| 1CH | Total dimming | R;G;B;W total dimming, linear dimming, from dark to bright |
| 2CH | R dimming | R dimming, linear dimming, from dark to bright |
| 3CH | G dimming | G dimming, linear dimming, from dark to bright |
| 4CH | B dimming | B dimming, linear dimming, from dark to bright |
| 5CH | W dimming | W dimming, linear dimming, from dark to bright |
| 6CH | Total strobe | R;G;B;W total strobe,from slow to fast |
|
7CH |
Function selection | 0－3：DMX channel control； 4－127：8 fixed color 128－169：jump； 170－210：gradient； 211－229：sound 1； 230－255：sound 2； |
| 8CH | Function speed | Function speed,from slow to fast |
4 Channel
| No. | Function | Description |
| 1CH | R dimming | R dimming, linear dimming, from dark to bright |
| 2CH | G dimming | G dimming, linear dimming, from dark to bright |
| 3CH | B dimming | B dimming, linear dimming, from dark to bright |
| 4CH | W dimming | W dimming, linear dimming, from dark to bright |
Technical Parameters
- Input voltage: ac90-220v 50-60hz
- Power: 90 w
- Light source: 12PCS*6W four in one lamp bead
- Channel: 4/8 ch
- Control mode: DMX512, voice control, self-walking, master-slave
