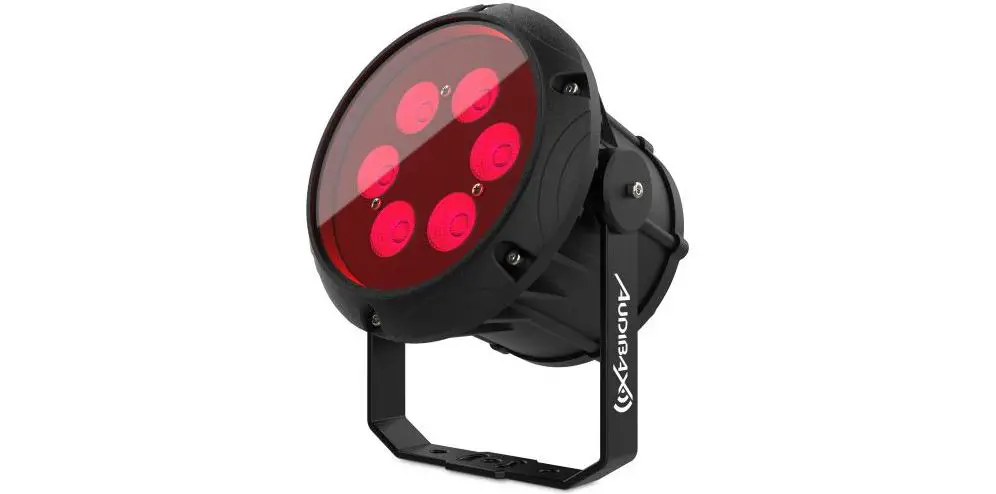

WATER 18
RGBW
USER´S
GUIDE
Please read the manual before using the product
Specs:
Voltage: AC110-220V 50/60HZ
Power: 100W
Light source: 10W*6PCS
Colour: RGBW 4IN1 LEDs
Channels: 8/4CH
Control mode: DMX512, automatic, voice control, master-slave.
Outdoor Rating, Water Resistance: IP65
DMX512 control：8 channels (A001)
| CH | Display | Function |
| CH1 | Dimmer | R、G、B、W Dimmer: from dark to bright |
| CH2 | R Dimmer | R Dimmer: from dark to bright |
| CH3 | G Dimmer | G Dimmer: from dark to bright |
| CH4 | B Dimmer | B Dimmer: from dark to bright |
| CH5 | W Dimmer | W Dimmer: from dark to bright |
| CH6 | Strobe | R、G、B、W strobe: from slow to fast |
| CH7 | Function choice | 0~50: 8CH DMX control 51~100: Different colors output 101~150: Colors jump change 151~200: Color gradate 201~250: Color pulse change 251~255: Sound-active |
| CH8 | Function speed | Speed function, from slow to fast |
DMX512Control： 4Channel Mode (D001)
| Channel | Function | Instruction |
| CH1 | R Dimmer | Dimmer R: dark to bright |
| CH2 | G Dimmer | Dimmer G: dark to bright |
| CH3 | B Dimmer | Dimmer B: dark to bright |
| CH4 | W Dimmer | Dimmer W: dark to bright |
| No | Code | Function | Instruction |
| 1 | d001 | DMX address (001~512) | DMX-512 address set, 4 channel mode |
| 2 | A001 | DMX address (001~512) | DMX-512 address set, 8 channel mode |
| 3 | r255 | Red (000~255) | UP, DOWN Change brightness |
| 4 | G255 | Green (000~255) | UP, DOWN Change brightness |
| 5 | b255 | Blue (000~255) | UP, DOWN Change brightness |
| 6 | u255 | White (000~255) | UP, DOWN Change brightness |
| 7 | F255 | Strobe flash (001~255) | UP, DOWN Change speed |
| 8 | CL01 | Different colors output (01~08) | UP, DOWN Change brightness |
| 9 | CC15 | Colors jump change (01~15) | UP, DOWN Change speed |
| 10 | DE15 | Colors gradate (01~15) | UP, DOWN Change speed |
| 11 | CP15 | Colors pulse change (01~15) | UP, DOWN Change speed |
| 12 | SU01 | Sound-active (01~09) | UP, DOWN Change effects |
