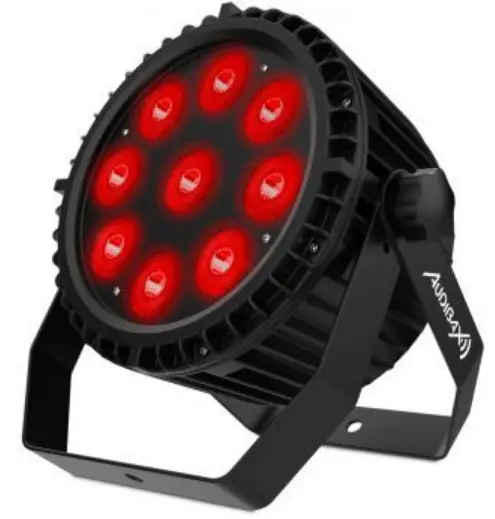

AUDIBAX Water 70 Outdoor LED Lighting
Thank you so much to choose this product; it is adopting the most advanced lamps, which is called LED lamps. It conquers a lot of disadvantages such as power waste, short use life, high temperature, etc. It has the advantages of power saving, long life (it can reach 60,000.00 hours in general circs), high brightness, fresh colors…It is the best stage for illuminating and various effect decorative products.
DMX512Control: 8 Channel Model (A001)
| CH | Display | Function |
| CH1 | Dimmer | R,G,B,W dimmer: from dark to bright |
| CH2 | R dimmer | R dimmer: from dark to bright |
| CH3 | G dimmer | G dimmer: from dark to bright |
| CH4 | B dimmer | B dimmer: from dark to bright |
| CH5 | W dimmer | W dimmer: from dark to bright |
| CH6 | Strobe | R,G,B,W strobe: from slow to fast |
| CH7 | Function choice | 0~50: DMX 8CH Control. 51~100: Different Colors Output 101~150: Colors Jump Change. 151~200: Colors Graduate. 201~250: Colors Pulse Change. 251~255: Sound-Active |
| CH8 | Function speed | Speed function, from slow to fast |
DMX512Control: 4Channel Model(D001)
| Addr | A001-A512 | 512 Address setting |
| CHnd | 14CH | 14 Channel setting |
| 12CH | 12 Channel setting | |
| SLnd | Auto | Mainframe self-walking mode |
| SL 1 | Control station mode | |
| SL 2 | Auxiliary mode | |
| SHnd | SH 0 | Effect 0 (recommended) |
| SH 1 | Effect 1 | |
| SH 2 | Effect 2 | |
| SH 3 | Effect 3 | |
| Soud | ON | Voice controlled open |
| OFF | Voice control switch | |
| SEnS | 0-99 | Voice-controlled sensitivity volume regulation |
| LEd | OFF | Five seconds later, screen out. |
| ON | The screen is always on | |
| dISP | no | Display reverse |
| YES | Display forward | |
| rPAN | no | X motor forward rotation |
| YES | X motor reversal | |
| rTiL | no | Y-motor positive rotation |
| YES | Y-motor inversion | |
| REST | YES | system reset |
Channel Model Description
| CH | Function | Instruction |
| CH1 | R Dimmer | Dimmer- Dark to Bright |
| CH2 | G Dimmer | Dimmer- Dark to Bright |
| CH3 | B Dimmer | Dimmer- Dark to Bright |
| CH4 | W Dimmer | Dimmer- Dark to Bright |
FUNCTION
| No | Show | Function | Instruction |
| 1 | A001 | DMX Address | DMX-512 address set, 8 Channels mode |
| 2 | d001 | DMX Address (001~512) | DMX-512 address set, 4 Channels mode |
| 3 | r255 | Red (000~255) | UP, DOWN Change brightness |
| 4 | G255 | Green (000~255) | UP, DOWN Change brightness |
| 5 | b255 | Blue (000~255) | UP, DOWN Change brightness |
| 6 | u255 | White (000~255) | UP, DOWN Change brightness |
| 7 | FH00 | Strobe flash (01~99) | UP, DOWN Change the speed |
| 8 | CL01 | Different Colors Output (01~08) | UP, DOWN Change brightness |
| 9 | CC99 | Colors Jump Change / Cambio de salto de colores (01~99) | UP, DOWN Change the speed / ARRIBA, ABAJO Cambiar la velocidad |
| 10 | DE99 | Colors Graduate | UP, DOWN Change the speed |
| 11 | CP99 | Colors Pulse Change | UP, DOWN Change the speed |
| 12 | SU01 | Colors sound-Active | UP, DOWN Change the effects |
Technical parameters
- Voltage: AC110-220V 50/60HZ
- Power supply: 180W
- Color: R,G,B,W
- Channel: 8/4CH
- Operation: DMX512, Auto, Sound, Master-slave
