Godax WL4B Water Proof Led Light

Forward
Thank you for purchasing Godox product!
Waterproof LED light WL48 is a multifunctional continuous light with adjustable light brightness. It can be used in combination with sports camera. Suitable for offering fill light for underwater photography, professional diving, creative underwater commercial photography, etc. With several methods of remote control, WL4B is easy to be operated.

Main Features

• Waterproof levels up to IPXS, which enables to achieve waterproof functions 30 meters under water
• With continuous lighting modes and 13 light effects modes
• With high color rending index, CRI and TLCI is over 96
• Can be controlled by 2.4G wireless or smartphone APP remote control through Bluetooth
• Portable and fashionable

Warning

• Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.
•  Keep out of reach of children.
•  Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. Jn certain circumstance, these materials may be sensitive to the strong light emitting from this flash unit and fire or electromagnetic interference may result.
• As this product has built-in lithium battery, do not disassemble, impact. squeeze or put it into fire. If serious bulge occurs, please do not use. Do not use or store the product if the ambient temperature reads over 40°C. Please charge the product with specialized charger and correctly operate it within the defined voltage and working temperate according to the instruction manual.
• A The product’s body will get hot when being used in high-temperature environment with max. power output for a long time. Please do not touch the body in case of being scalded.

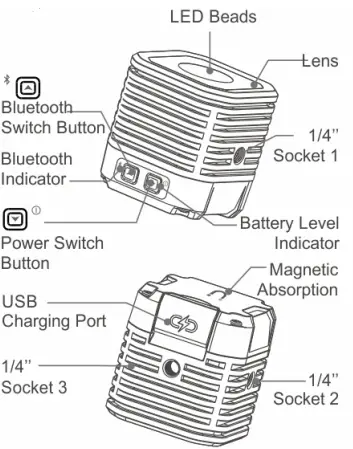

Body

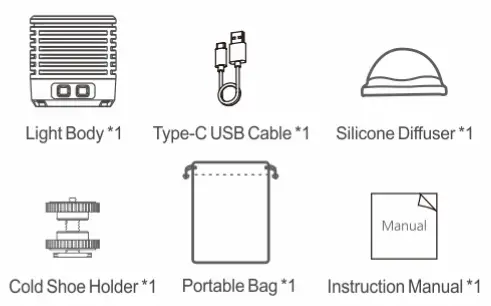

What’s in the Box

Battery

1. This flash unit uses Li-ion battery which has long runtime.
2. It is reliably safe. The inner circuit is against overcharge, overdischarge, overcurrent, and short circuit.
3.  Take only 1 hour and 40 minutes to fully charge the battery by using the 5V/2A charger (optional).

Button
Long press the ©button for 2 seconds to power on or off the LED light. Short press the button to
decrease the LED light’s brightness (low/medium/high/SOS).
Note: the minimum brightness will be displayed after the light being turned on.

Button
When the LED light is powered on, Long press thebutton for 2 seconds can power on or off the Bluetooth.
Short press thebutton to increase the LED light’s brightness (low/medium/high/SOS).

Battery Level Indication
When the battery level is below 15%, the battery indicator will blink in red. When in charging status, the indicator will always display green. When being full charged, the indicatrowill put off.

Control Mode Selection

Bluetooth Control

1.  When the light is turned on, long press thebutton for 2 seconds to power on the Bluetooth.
2. Scan the “Godoxlight” smartphone APP(can be both used on Android and Apple system).For more smartphone APP operations, please open the “help• in APP to gain detailed guidance.
3. Bluetooth Reset Function
   Whe£ the Bluetooth indicator is on, press andfor 1 second (the md1cator will blink for 3 times) simultaneously to reset the Bluetooth.
   Note: the APP can be used directly on the firstly installed device (smartphone or iPad). When changing to other mobile device, the light shall be reset before the normal usage of APP.

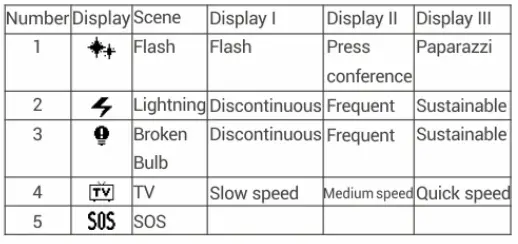

Light Effects Mode

Select different light effects modes on smartphone APP from 5 categories which are divided into 13 kinds

Temperature Protection Function

When the temperature of LED light is over 60°C, the red indicator will blink quickly and the LED light will auto off
after 30 seconds to enter temperature protection function. The red indicator will stop quick blinking after the temperature decreased to 55°C. Then, the LED light can be turned on and operated

Technical Data

Maintenance

Please wash the LED light with clean freshwater after being used underwater. Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories. This product, except consumables e.g. charger, charger cable and cold shoe holder is supported with a one-year

warranty.
Unauthorized service will void the one-year LED light warranty and will charge relevant maintenance fees. Changes made to the specifications or designs may not be reflected in this manual.
