ACV Nissan NV400 2 DIN Flat Face Plate

TOOLS AND PARTS INCLUDED

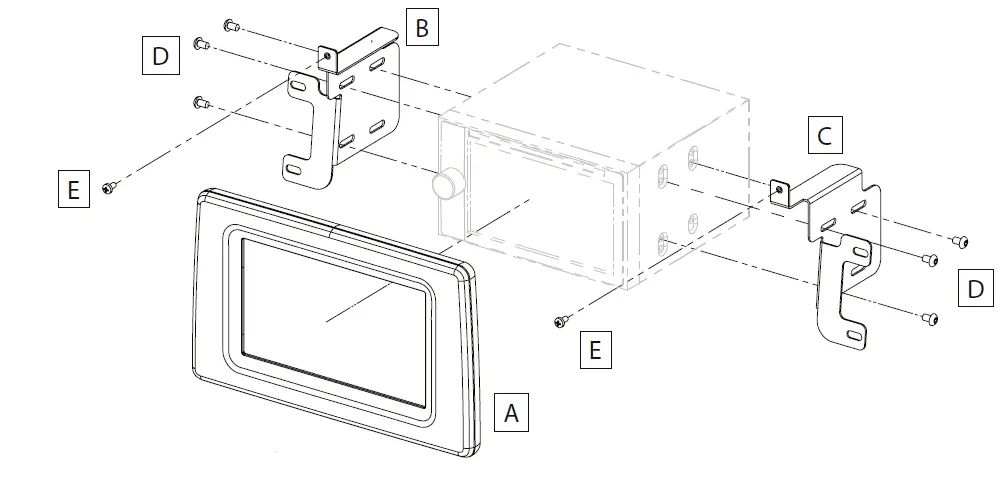

2-DIN : 381250-20-1

1. A: Facia Plate
2. B: Mounting Bracket (L)
3. C: Mounting Bracket (R)
4. D: Hexagon socket flat head screw (M5x8)
5. E: 2 x pan head screw

with pocket: 281250-20-1

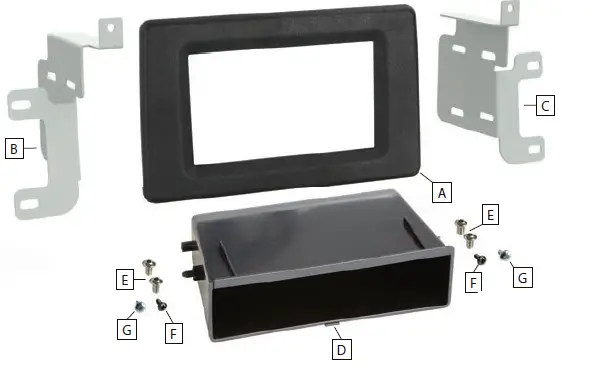

1. A: Facia Plate
2. B: Mounting Bracket (L)
3. C: Mounting Bracket (R)
4. D: pocket
5. E: Hexagon socket flat head screw (M5x8)
6. F: self-tapping convex fillister head screw
7. G:pan head screw

We will not be liable for damage due to improper installation or utilization. Use the specified accessory parts to prevent product failure. Subject to technical modifications; no responsibility is accepted for the accuracy of this information.

INSTALLATION INSTRUCTIONS

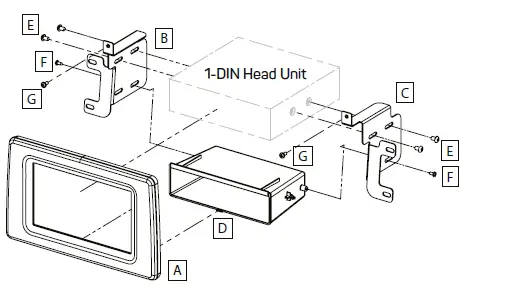

installation 1-DIN head unit

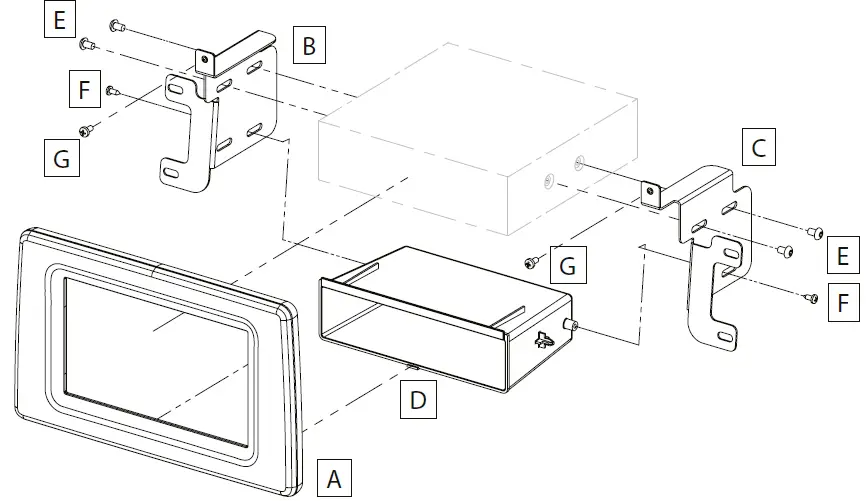

1. A: Facia Plate
2. B: Mounting Bracket (L)
3. C: Mounting Bracket (R)
4. B: pocket
5. E: 4 x Hexagon socket flat head screw (M5x8)
6. F: 2 x self-tapping convex fillister head screw
7. G: 2 x pan head screw

1. A: Facia Plate
2. B: Mounting Bracket (L)
3. C: Mounting Bracket (R)
4. D: pocket
5. E: 4 x Hexagon socket flat head screw (M5x8)
6. F: 2 x self-tapping convex fillister head screw
7. G: 2 x pan head screw
