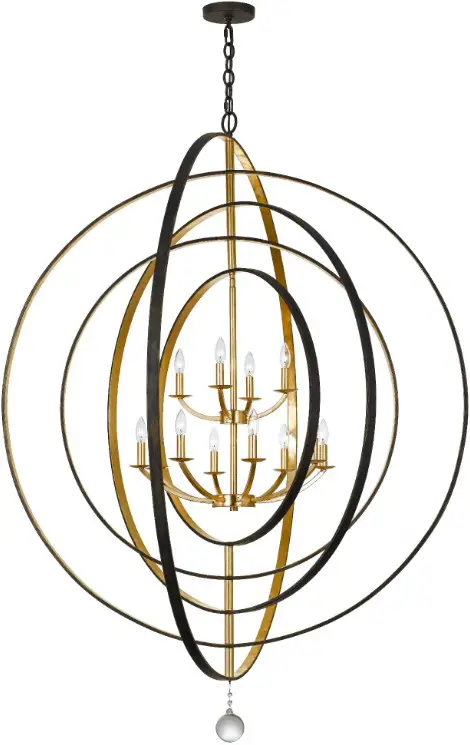

CRYSTORAMA 590-EB Luna 12 Light Chandelier Instruction Manual

ASSEMBLY INSTRUCTION

You will need 12 – Candelabra Base Bulb 40 Watts Recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED

How to Install

1. Attach the center stem onto the wiring house.
2. Attach the top of the stem onto the swivel.
3. Place the candle sleeve onto the socket and insert recommended bulb (not included).
4. Dress the crystal A onto the bottom of fixture.
5. Adjust the flat metal rings to the preferred angle.

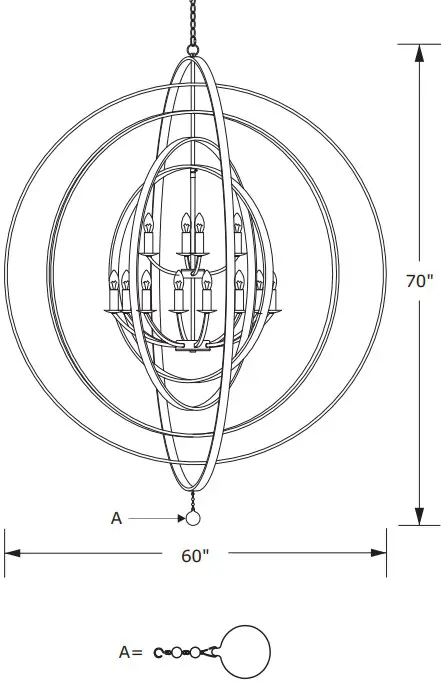

A.1 Set.

(2)14mm + (1)80mm Crystal Ball

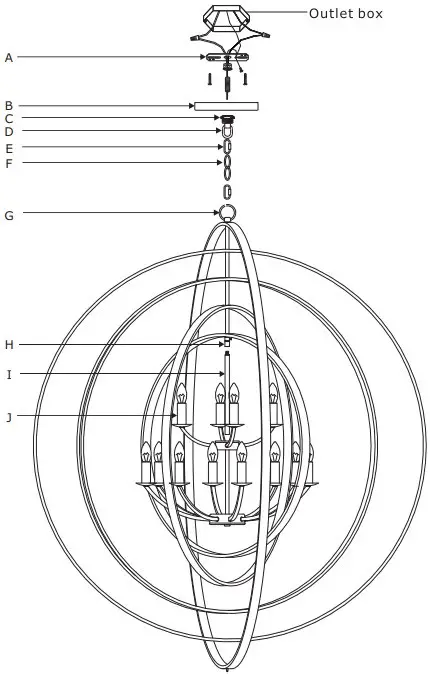

PART NUMBER

1. A. (1) – Mounting Hardware
2. B. (1) – Canopy(W6″,H1″) #XRE587EBCAN6IN
3. C. (1) – Collar Ring
4. D. (1) – Collar Loop
5. E. (2) – Quick Link
6. F. (1) – Hanging Chain(72″,5mm) #XRE590EBCHA5MM
7. G. (1) – Fixture Loop
8. H. (1) – Swivel
9. I. (1) – Center Stem(7.87″,19mm) #XRE590EBSETM
10. J. (12) – Candle Sleeve(W1.65″,H2.56″) #XRE590EBCDL2.56IN
