LIGHTING THE WAY FOR SIXTY YEARS

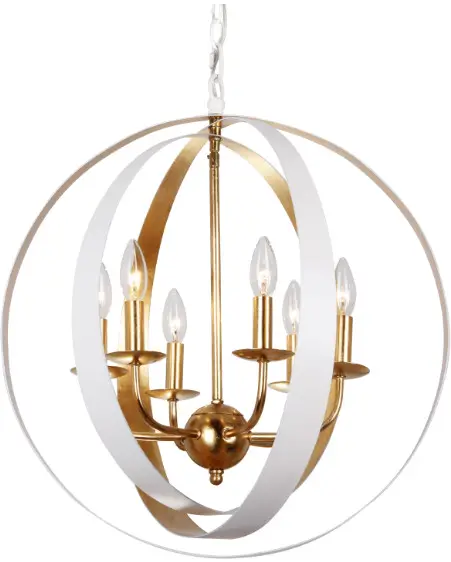

MODEL #587-MK
ASSEMBLY INSTRUCTION
WARNING:
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 9 – Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED
How to Install
- Attach the center stem on to the wiring house.
- Attach the top of the stem onto the swivel.
- Place the candle sleeve onto the socket and insert recommended bulb(not included).
- Dress the crystal A onto the bottom of fixture.
- Adjust the flat metal rings to the preferred angle.
Crystal Sets
A.1 Set.
(2)14mm + (1)80mm Crystal Ball
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

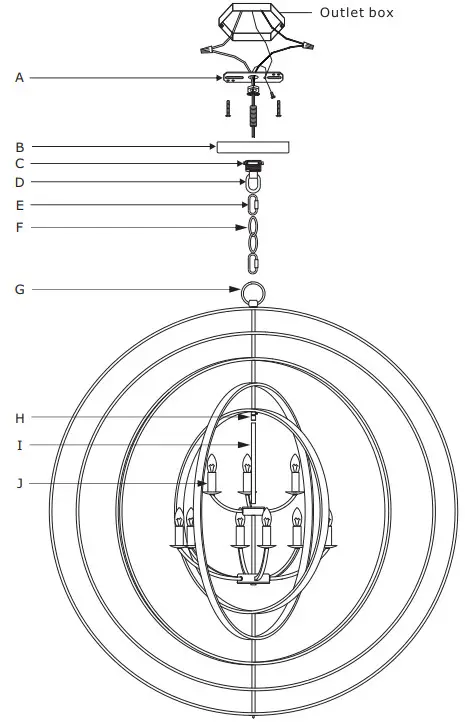

PART NUMBER
Part Number
A. (1) – Mounting Hardware
B. (1) – Canopy(W6″,H1″) #XRE587MKCAN6IN
C. (1) – Collar Ring
D. (1) – Collar Loop
E. (2) – Quick Link
F. (1) – Hanging Chain(72″,4mm) #XRE584MKCHA4MM
G. (1) – Fixture Loop
H. (1) – Swivel
I. (1) – Center Stem(15.35″,15.3mm) #XRE587MKSTEM
J. (9) – Candle Sleeve(W0.87″,H2.76″) #XRE584MKCDL2.76IN
