LIGHT THE WAY FOR SIXTY YEARS

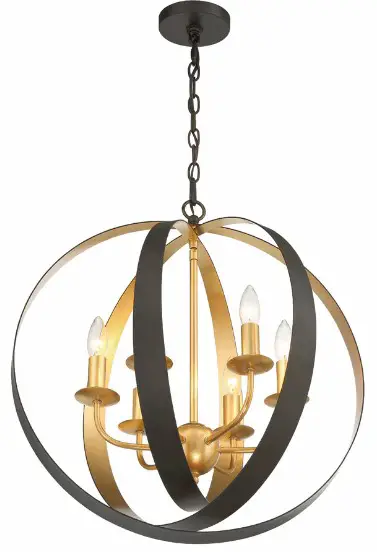

585-MT-GA Luna 6 Light Sphere Large Chandelier
ASSEMBLY INSTRUCTION MODEL #585-MT-GA
WARNING
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
RECOMMENDED G16-1/2″
You will need 6 – Candelabra Base Bulb
40 Watts Recommended
60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED
How to Install
- Attach one end of the stem onto the wiring house and the other end onto the swivel.
- Place the candle sleeve onto the socket and insert recommended bulb (not included).
- Adjust the flat metal rings to the preferred angle.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
For more information go to www.P65Warnings.ca.gov.

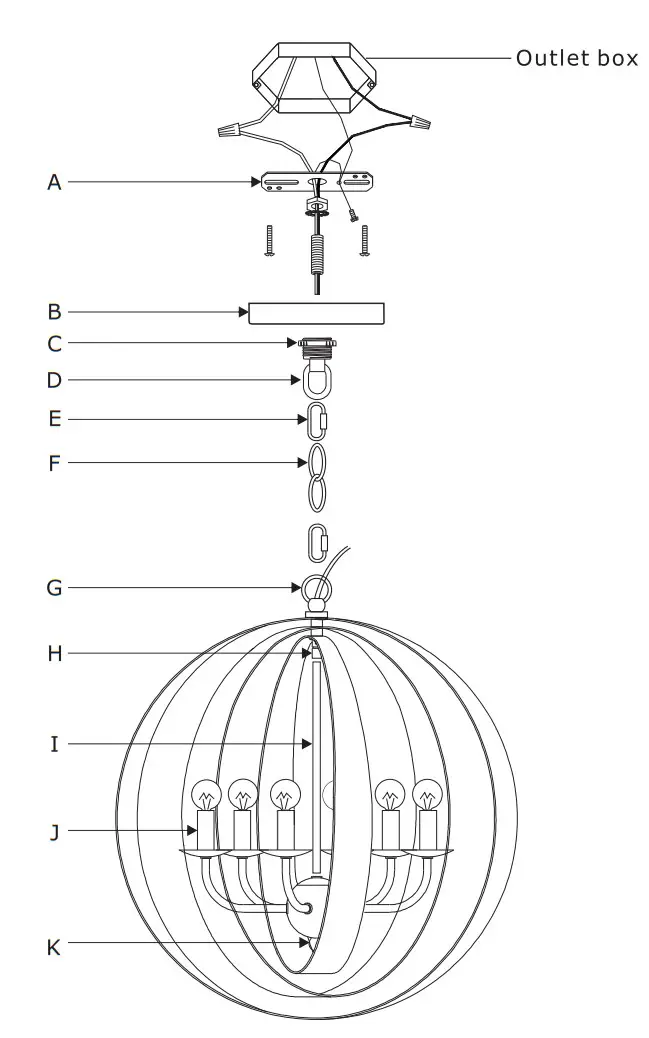

Part Number
A. (1) – Mounting Hardware
B. (1) – Canopy(W4.75″,H0.75″) #XRE580MTGACAN4.75IN
C. (1) – Collar Ring
D. (1) – Collar Loop
E. (2) – Quick Link
F. (1) – Hanging Chain(72″,4mm) #XRE584MTGACHA4MM
G. (1) – Fixture Loop
H. (1) – Swivel
I. (1) – Center Stem(11.42″,12.7mm) #XRE585MTGASTEM
J. (6) – Candle Sleeve(W0.87″,H2.76″) #XRE584MTGACDL2.76IN
K. (1) – Ball Finial #XRE584MTGAFIN
