CRYSTORAMA 9226-OS 6 Light Sphere Chandelier
Product Information
- Model: 9226-OS
- Brand: Crystorama
- Canopy Dimensions: Width 7 inches, Height 0.8 inches
- Product Rating: Damp Rated
- Number of Bulbs: 6
- Bulb Type: Candelabra Base
- Recommended Bulb Wattage: 40 Watts
- Maximum Bulb Wattage: 60 Watts
- LED Bulbs can be used for extended use
Product Usage Instructions
- Before starting installation, carefully inventory all parts and components to ensure everything is included.
- Install 6 Candelabra Base Bulbs (not included) into the fixture.
- Attach the mounting plate onto the outlet box using the outlet box screws.
- Take the end of the rod with a hook and attach it to the top of the fixture frame. Open a quick link and attach it to the other end of the rod (the end with a closed loop).
- Thread the collar ring into the canopy.
- Open the other quick link and attach it to the collar loop.
- Connect the fixture wires into the outlet box.
- Raise the canopy onto the collar loop and secure it with the collar ring.

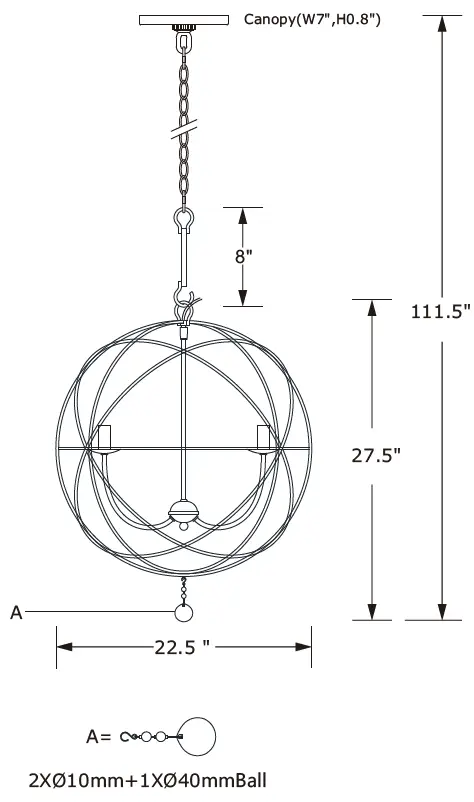

- Attach the crystal ball A on the bottom of the fixture.
- After securely attaching the fixture into the outlet box, proceed to connect the power.

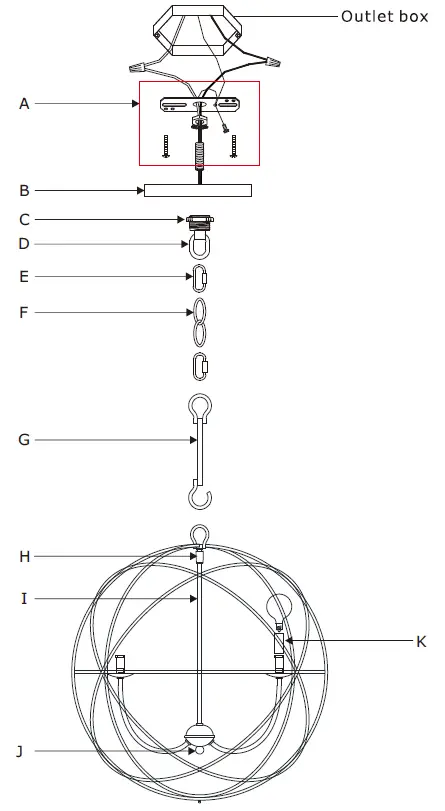

Parts List:
| Part Number | Description |
|---|---|
| A | Mounting Hardware |
| B | Canopy (Width 7 inches, Height 0.8 inches) #XRE9226OSCAN7IN |
| C | Collar Ring |
| D | Collar Loop |
| E | Quick Link (2 pieces) |
| F | Hanging Chain (72.4mm) #XRE9220OSCHA4MM |
| G | Rod (8.9mm) #XRE9224OSROD8IN |
| H | Swivel |
| I | Center Stem (14.69, 9.3mm) #XRE9226OSSTEM14.69IN |
| J | Final #XRE9224OSFIN |
| K | Candle Sleeve (Width 0.87 inches, Height 1.97 inches) #XRE9224OSCDL1.97IN (6 pieces) |
WARNING:
- Electrical Danger
- Turn Power Off
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. You will need 6 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP-RATED.
How to Install
- Do a complete inventory of all parts and components before you start the installation.
- Install bulbs (not included).
- Install the mounting plate onto the outlet box and secure it with the outlet box screws.
- Take the end of the rod with a hook and attach it to the top of the fixture frame. Open a quick link and attach it to the other end of the rod (the end with a closed loop).
- Thread the collar ring into the canopy.
- Open the other quick link and attach it to the collar loop.
- Connect fixture wires to the outlet box.
- Raise the canopy onto the collar loop and secure it with the collar ring.
- Attach the crystal ball “A” on the bottom of the fixture.
- After safely attaching the fixture to the outlet box, proceed to connect the power.
Part Number
- A. (1) – Mounting Hardware
- B. (1) – Canopy(W7”, H0.8”) #XRE9226OSCAN7IN
- C. (1) – Collar Ring
- D. (1) – Collar Loop
- E. (2) – Quick Link
- F. (1) – Hanging Chain(72″,4mm) #XRE9220OSCHA4MM
- G. (1) – Rod(8″,9.3mm) #XRE9224OSROD8IN
- H. (1) – Swivel
- I. (1) – Center Stem(14.69″,9.3mm) #XRE9226OSSTEM14.69IN
- J. (1) – Final #XRE9224OSFIN
- H. (6) – Candle Sleeve(W0.87″,H1.97″) #XRE9224OSCDL1.97IN
WARNING:
This product can expose you to Lead. which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.
