Decolight 67218e Emergency Ceiling Plafo Instruction Manual

DECOLIGHT 67218E Emergency Ceiling Plafo

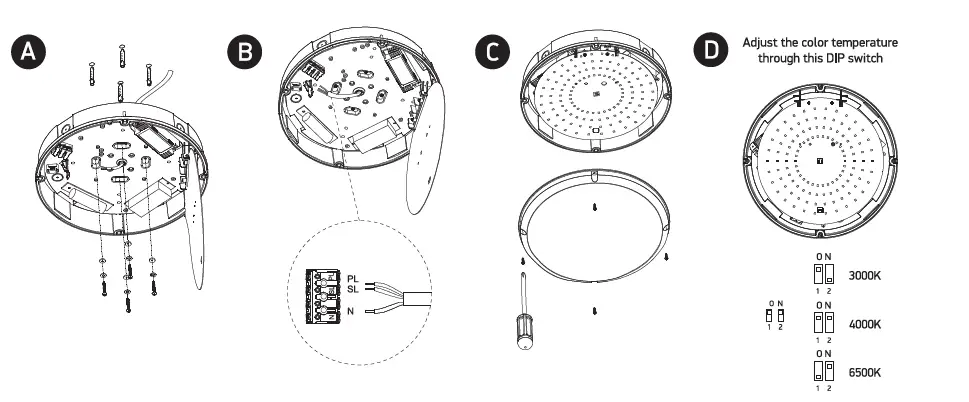

INSTALLATION

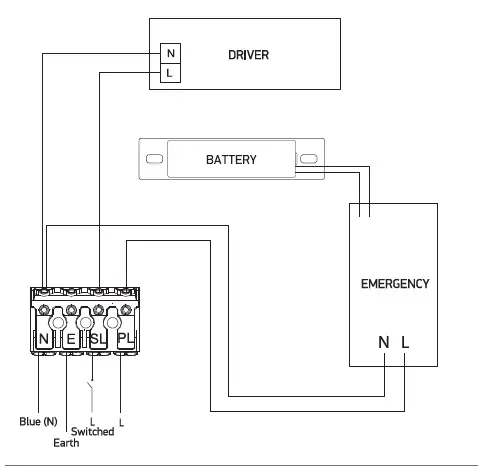

Wiring diagram (Maintained)

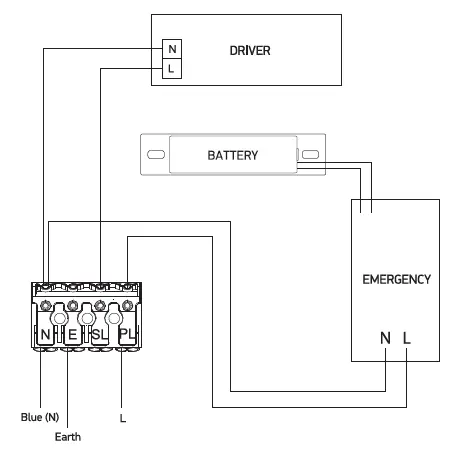

Wiring diagram (Non-maintained)

Warnings:

1. Fix the base on the ceiling.
2. Make sure that the product is installed properly before connecting to electricity.
3. Connect the AC power cable to the driver’s cable as shown in the above diagram.
4. Do not cover the fitting.
5. Maintenance and installation should only be carried out by a professional electrician.

www.1-light.eu
