Ceiling mounted downlight
24 410
Instructions for use
Application
Compact downlight with symmetrical wide beam light distribution.
Product description
Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Clear safety glass Silicone gasket

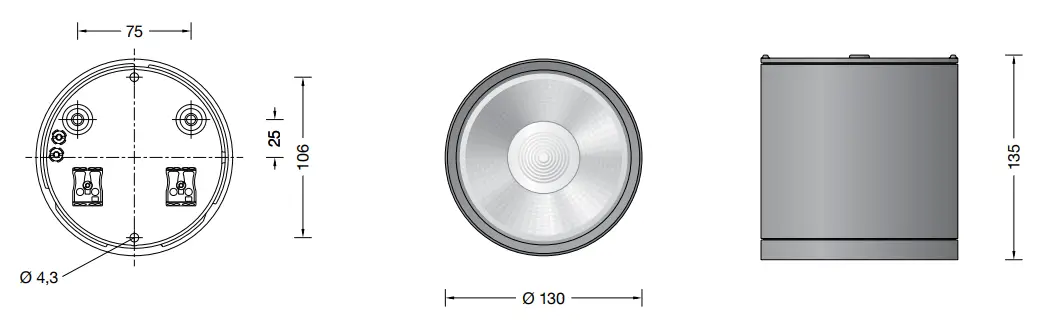

Reflector surface made of pure aluminium Optical silicone lens · BEGA Hybrid Optics® 2 mounting holes ø 4.3 mm Distance apart 106 mm 2 cable entries for through-wiring of mains supply cable ø 7-10.5 mm, max. 5 G 1.5@ Connection terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz DC 176-276 V DALI-controllable Basic insulation is provided between the mains and control cables BEGA Thermal Control®
Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire Safety class I Protection class IP 65
Dust-tight and protection against water jets
Impact strength IK08 Protection against mechanical impacts < 5 joule
– Safety mark
– Conformity mark
Weight: 1.3 kg
This product contains light sources of energy efficiency classes D
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components. You can find them on our website at www.bega.com.
Safety
The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
| Lamp | |
| Module connected wattage | 8.1 W |
| Luminaire connected wattage | 9.5 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 55 °C |
| 24 410 K3 | |
| Module designation | LED-0800/830 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 80 |
| Module luminous flux | 1465 lm |
| Luminaire luminous flux | 1193 lm |
| Luminaire luminous efficiency | 125,6 lm / W |
| 24 410 K4 | |
| Module designation | LED-0800/840 |
| Colour temperature | 4000 K |
| Colour rendering index | CRI > 80 |
| Module luminous flux | 1500 lm |
| Luminaire luminous flux | 1222 lm |
| Luminaire luminous efficiency | 128,6 lm / W |
Lighting technology
Half beam angle 72°
Installation
Pass the power connecting cable through the cable entry in the mounting plate.
Fix the mounting plate with enclosed or any other suitable fixing material onto the mounting surface.
Be sure to use the gasket rings supplied.
Make the earth conductor connection and the electrical connection.
For digital control please use the connecting terminal DA, DA.
In case this terminal is not used the luminaire will be operated at full light output.
In order to guarantee the maximum service life of the electrical components, the enclosed desiccant pouch must be placed in the luminaire.
Remove the desiccant pouch from the foil packaging and place it in the position marked by the red information label immediately before finally closing the luminaire.
Make earth conductor connection between luminaire housing and mounting plate.
Push plug into coupler as far as it will go.
Make sure that gasket is positioned correctly.
Insert the luminaire housing into the mounting plate and turn it as far as it will go.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free cleansers from dirt and deposits.
Do not use high pressure cleaners.
Replacing the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified persons using standard tools.
Disconnect the system.
LED are high-quality electronic components!
Please avoid touching the light output opening of the LED directly during relamping.
Remove luminaire housing from mounting plate by turning it counter-clockwise.
Disconnect the plug-in devices.
Undo retaining screw (wrench size 2.5 mm) in the luminaire housing. Remove the trim ring along with the glass and reflector from the luminaire housing by turning it counterclockwise.
Replace LED module. Please follow the installation instructions for the LED module.
Screw the trim ring along with the glass and reflector into the luminaire housing by turning it clockwise.
Tighten retaining screw in the luminaire housing firmly.
Make earth conductor connection between luminaire housing and mounting plate.
Push plug into coupler as far as it will go.
Make sure that gasket is positioned correctly.
Insert the luminaire housing into the mounting plate and turn it as far as it will go.
Spares
| Silicone lens | 15 000 501 .A |
| LED power supply unit | DEV-0348/250 |
| LED module 3000 K | LED-0800/830 |
| LED module 4000 K | LED-0800/840 |
| Reflector | 76 001 609 |
| Gasket 2 x | 83 002 046 |
