iBEAM TE-GMSH Vehicle
Safety System
iBeamUSA.com MetraDealer.com [email protected]
TECH SUPPORT
800-253-8324

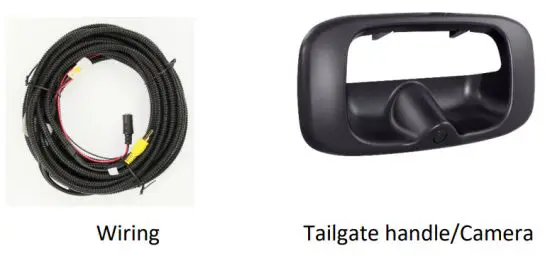

Box Contents
Applications
1999-2006 Chevrolet Silverado/Sierra
Installation
- Connect the RED wire to a 12V reverse trigger.
- Connect the BLACK wire to a chassis ground.
- Cut the WHITE loop to cancel the parking guidelines.

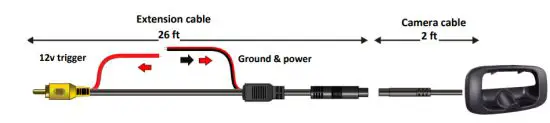

Wiring Diagram
Specifications
| Sensor | CMOS ¼ sensor |
| Resolution | 400 TV Lines |
| Field of View | Diagonal 168°, Horizontal 136°, Vertical 100° |
| Illumination | 0.1 Lux |
| IP Rating | IP69 |
| Parking Lines | Defeatable |
| Extension Cable | 26’ |
| TV System | NTSC |
| Working Temp. | -20°C ~ 70°C |
| Warranty | 3 Years |
