- Find a suitable location to surface mount installs the camera. Make sure the camera’s view is unobstructed and be careful not to drill into any wires that might damage the vehicle. When all connections have been made and before mounting the camera, verify the camera is working and has a good view of the area. Then mount the camera down with the supplied two screws.
- Connect the RED wire to the +12 volt reverse wire
Note: Power can also be obtained in the rear of the vehicle using the BLUE power wire provided on the extension cable. If this is done, connect the RED and the BLUE wire closest to the RCA together. The blue wire is just a pass-through, RED must be connected to power the camera. - Connect the BLACK wire to the ground (a metal, non-painted surface).
- Run video cable through the vehicle, up to video display. (Avoid placing video cable where it can get pinched or damaged).
- Attach the YELLOW video RCA to the camera’s output and to the reverse camera input of the radio or video display.

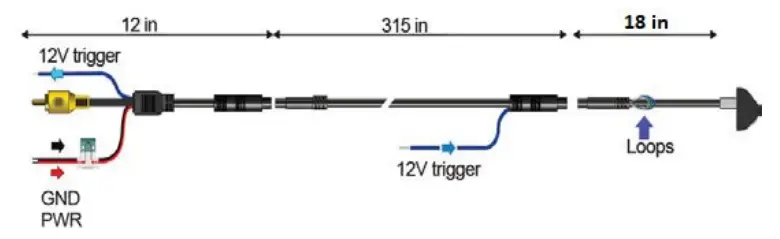

Loop cutting Instructions:
The green loop will turn the parking guidelines off Copper loop will mirror the image
| Sensor | CMOS |
| Effective Pixel | 480 X 720 |
| Video Signal | NTSC |
| Resolution | 500 TV Line |
| S/N Ratio | 46dB |
| Current Consumption | 35-55 mA |
| Power Supply | DC 6V-12V |
| Operating Temperature | -30ºC – 75ºC |
| Storage Temperature | -40ºC – 85ºC |
| View Angle | 175º Diagonal |
| Water Resistance | IP68 |
| Minimum Illumination | 0.1 Lux |
