MS446124CEM(G), MS446234CEMG, MW4463046CEMG(A) & MW4463056CEMG(A)
| MS446124CEM(G) CT446CU(G)T40 ST446EMA SS124 | MS446234CEMG CT446CUGT40 ST446EMA SS234 | MW4463046CEMG(A) CT446CUGT40 ST446EMA SW3046AT40 | MW4463056CEMG(A) CT446CUGT40 ST446EMA SW3056AT40 |
Aquia® IV WASHLET®+
1.28 & 0.8 Gpf Toilet, Elongated, Regular Height
DYNAMAX TORNADO FLUSH®, Unifit Rough-In,
(includes CEFIONTECT® & Auto Flush)

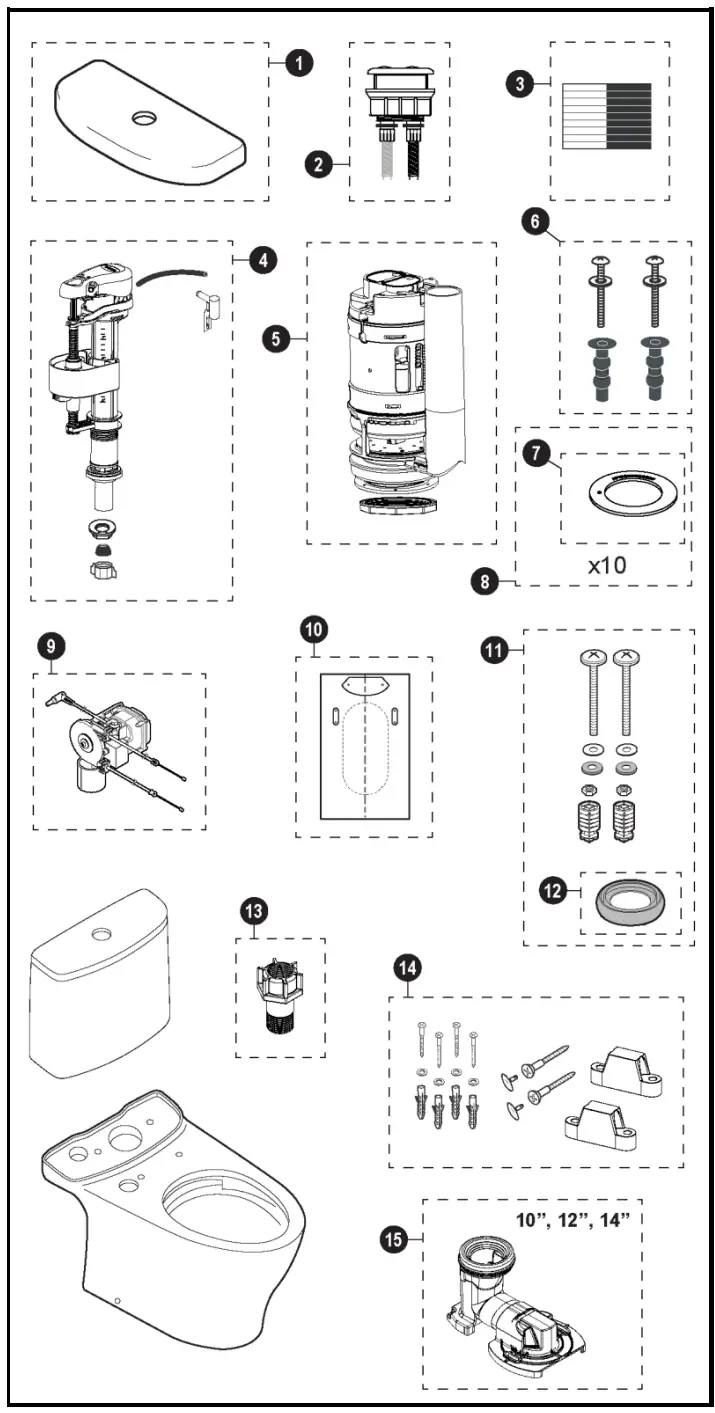

MW4463046CEMG Aquia IV WASHLET + 1.28 and 0.8 Gpf Toilet
| Item | Part | Description |
| 1 | TCU446CRE#01 TCU446CRE#03 TCU446CRE#11 TCU446CRE#12 TCU446CRE#51 | Tank Lid – Cotton Tank Lid – Bone Tank Lid – Colonial White Tank Lid – Sedone Beige Tank Lid – Ebony |
| 2 | THU735#01-A THU735#BN-A THU735#CP-A THU735#PN-A | Push Button Assembly – Cotton Push Button Assembly – Brushed Nickel Push Button Assembly – Chrome Plated Push Button Assembly – Polished Nickel |
| 3 | THU107 | Velcro Tape |
| 4 | TSU833.07-A | Fill Valve |
| 5 | THU738N-A | Flush Valve Assembly, 1.28gpf |
| 6 | THU651N | Seat Top Mounting Hardware |
| 7 | 9BU112E-A | Seal Gasket for Flush Valve (1 piece) |
| 8 | THU744 | Seal Gasket for Flush Valve (10 pieces) |
| 9 | THU765 | Auto Flush unit for Dual Flush |
| 10 | 0GU181-A 0GU182-A | 12″ Unifit Rough-in Template 10″ & 14″ Unifit Rough-in Template |
| 11 | THU741-A | Tank to Bowl Mounting Hardware |
| 12 | 9BU109E-A | Tank to Bowl Gasket |
| 13 | 9AU321-A | Fill Valve extension adapter |
| 14 | THU742#01-A THU742#03-A THU742#12-A THU742#51-A | Toilet Mounting Hardware (for #01 & #11) Toilet Mounting Hardware Toilet Mounting Hardware Toilet Mounting Hardware |
| 15 | TSU08W.10 TSU08W.12 TSU08W.14 | Unifit Rough-in 10″ Unifit Rough-in 12″ Unifit Rough-in 14″ |
Note:
Product Number Explanations
| Two-Piece Toilet (CST) Gravity Type Toilet (MS) Toilet & Seat combo (MW) Toilet & Washlet combo (446) Toilet model (C) DYNAMAX TORNADO FLUSH® (E) 1.28 gpf / 4.8 Lpf (M) Dual Flush (G) CEFIONTECT® | Tank (ST) Tank (446) Tank Model (E) 1.28 gpf / 4.8 Lp(M) Dual Flush (A) Auto Flush compatible | Bowl (CT) Skirted Bowl (446) Bowl Model (C) DYNAMAX TORNADO FLUSH® (G)CEFIONTECT® (T40) WASHLET®+ |
PD-01217 v.03
Parts Manual APR 2023
