CST775CEF(R)(G)
Drake®
1.28 Gpf Toilet, Round
TORNADO FLUSH®, Universal Height,
(including CEFIONTECT®), Right Hand Trip Lever
| CST775CEF(G) C775CEF(G) ST776EA | CST775CEFR(G) C775CEF(G) ST776ER | ST776ER ST776ERB ST776EB ST776ED ST776EDB |
| Item | Part | Description |

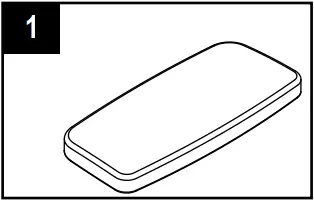

| 1 | TCU776CR#01 TCU776CR#03 TCU776CR#11 TCU776CR#12 TCU776CR#51 | Tank Lid w/ Velcro Tape – Cotton 7644 Tank Lid w/ Velcro Tape – Bone 7645 Tank Lid w/ Velcro Tape – Colonial White 7646 Tank Lid w/ Velcro Tape – Sedona Beige 7647 Tank Lid w/ Velcro Tape – Ebony 7648 |
| 2 | THU107 | Velcro Tape 7649 |

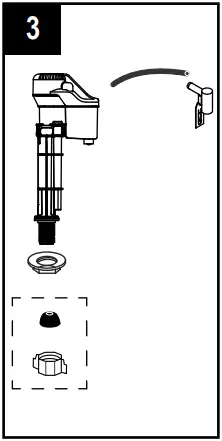

| 3 | TSU708 | Fill Valve Assembly 7650 |

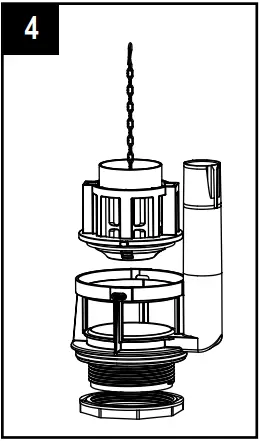

| 4 | THU825-A THU826-A | Flush Valve Assembly,1.28 GPF 7651 Flush Valve Assembly,1.28 GPF (Insulated Tank) 7652 |
| 5 | THU808#CP-A THU808#PN-A THU808#BN-A THU808#PB-A THU808#RB-A THU808#01-A THU808#03-A THU808#11-A THU808#12-A THU808#51-A THU820#01-A THU820#CP-A THU820#PN-A THU820#BN-A THU820#PB-A THU835#CP-A | Trip Lever Handle – Chrome Plated 7653 Trip Lever Handle – Polished Nickel 7654 Trip Lever Handle – Brushed Nickel 7655 Trip Lever Handle – Polished Brass 7656 Trip Lever Handle – Oil Rubbed Bronze 7657 Trip Lever Handle – Cotton 7658 Trip Lever Handle – Bone 7659 Trip Lever Handle – Colonial White 7660 Trip Lever Handle – Sedona Beige 7661 Trip Lever Handle – Ebony 7662 Trip Lever Right Handle – Cotton 7663 Trip Lever Right Handle – Chrome Plated 7664 Trip Lever Right Handle – Polished Nickel 7665 Trip Lever Right Handle – Brushed Nickel 7666 Trip Lever Right Handle – Polished Brass 7667 Trip Lever Right Handle & Bolt Down – Chrome Plated 8302 |
| 6 | THU407 | Seal Gasket (1 piece) 8303 |
| 7 | THU370 | Seal Gasket (10 pieces) 8304 |
| 8 | 9BU024E | Tank to Bowl Gasket – 1pc 8305 |
| 9 | THU131 | Tank to Bowl Gasket – 10pc 8306 |
| 10 | THU828#01-A THU828#03-A THU828#11-A THU828#12-A THU828#51-A | Tank to Bowl Mounting Hardware – Cotton 8307 Tank to Bowl Mounting Hardware – Bone 8308 Tank to Bowl Mounting Hardware – Colonial White 8309 Tank to Bowl Mounting Hardware – Sedona Beige 8310 Tank to Bowl Mounting Hardware – Ebony 8311 |
| 11 | THU089 | Bolt Down Set 8312 |
| 12 | THU044S#XX | Bolt Cap Set – (1 Toilet) 8313 |
| 13 | THU098#XX | Bolt Cap Set – (10 Toilets) 8314 |
Note:
#XX denotes the following color code: #01, #03, #11, #12 & #51
Product Number Explanations
Two-Piece Toilet
(CST) Gravity Type Toilet
(775) Model
(C) TORNADO FLUSH®
(E) 1.28 Gpf
(G) CEFIONTECT®
Tank
(ST) Tank (776) Model
(E) 1.28 Gpf
(A) AUTO FLUSH
(B) Bolt Down
(D) Insulated
(DB) Insulated Bolt Down
(R) Right Hand Trip Lever
Bowl
(C) Bowl
(775) Model
(C) TORNADO
FLUSH®
(G) CEFIONTECT®
Actual Product may vary slightly from illustration.
PD-01382 v.03
Parts Manual MAR 2023
