CST744SLB
C744SL
ST743SB
Drake®
1.6 Gpf Toilet, Elongated,
G-MAX®, ADA, 12″ Rough-In,
Bolt Down Tank Lid

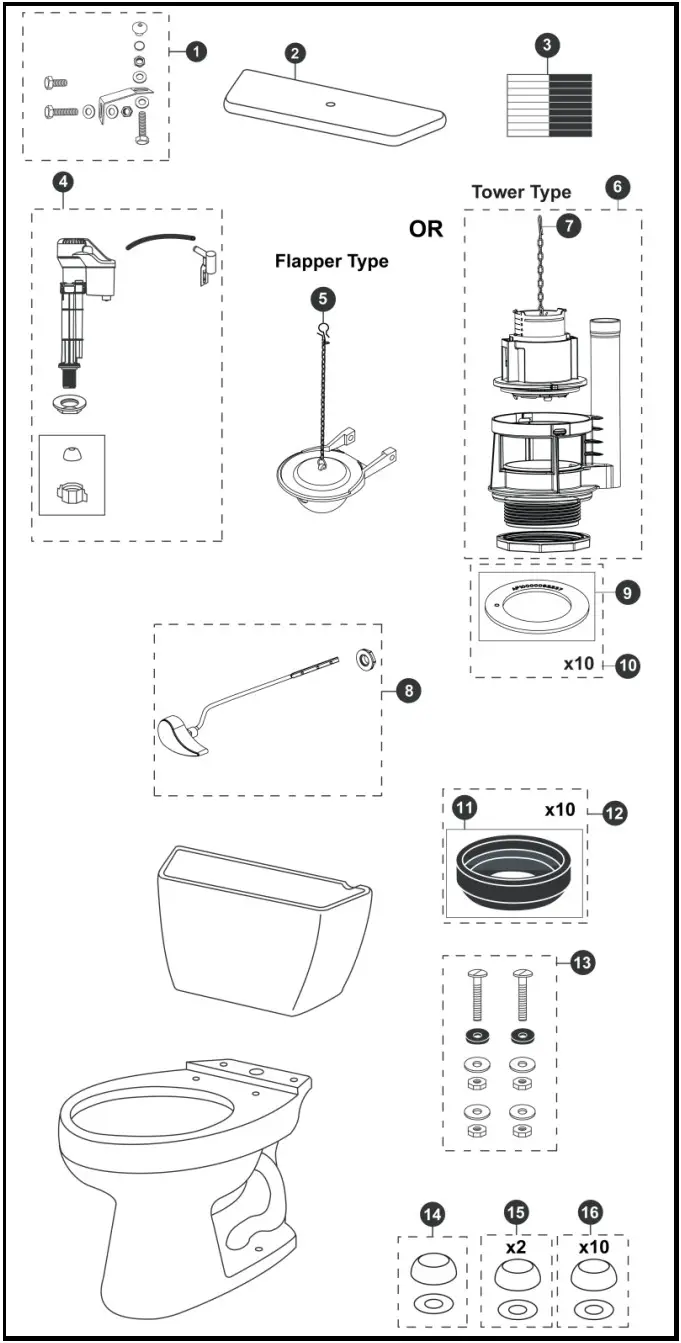

CST744SLB Drake 1.6 Gpf Toilet
| Item | Part | Description |
| 1 | THU089 | Bolt Down Set |
| 2 | TCU743BCR#01 TCU743BCR#03 TCU743BCR#11 TCU743BCR#12 TCU743BCR#51 | Bolt Down Tank Lid w/ Velcro – Cotton Bolt Down Tank Lid w/ Velcro – Bone Bolt Down Tank Lid w/ Velcro – Colonial White Bolt Down Tank Lid w/ Velcro – Sedona Beige Bolt Down Tank Lid w/ Velcro – Ebony |
| 3 | THU107 | Velcro Tape |
| 4 | TSU708 | Fill Valve |
| 5 | THU500S | Flapper w/ Chain |
| 6 | THU443.10B-A | Drain Valve for Tower Type |
| 7 | THU440-A | Flush Tower |
| 8 | THU068#01 THU068#03 THU068#11 THU068#12 THU068#51 THU068#CP THU068#BN THU068#PN | Trip Lever – Cotton Trip Lever – Bone Trip Lever – Colonial White Trip Lever – Sedona Beige Trip Lever – Ebony Trip Lever – Chrome Plated Trip Lever – Brushed Nickel Trip Lever – Polished Nickel |
| 9 | THU407 | Seal Gasket (1 piece) |
| 10 | THU370 | Seal Gasket (10 pieces) |
| 11 | 9BU024E | 3″ Tank to Bowl Gasket |
| 12 | THU131 | Tank to Bowl Gaskets (10 pieces) |
| 13 | TSU01D | Tank Mounting Kit |
| 14 | THU044#01 THU044#03 THU044#11 THU044#12 THU044#51 | Bolt Cap Set – Cotton (1 set) Bolt Cap Set – Bone (1 set) Bolt Cap Set – Colonial White (1 set) Bolt Cap Set – Sedona Beige Bolt Cap Set – Ebony |
| 15 | THU044S#01 THU044S#03 THU044S#11 THU044S#12 THU044S#51 | Bolt Cap Sets – Cotton (2 pieces) Bolt Cap Sets – Bone (2 pieces) Bolt Cap Sets – Colonial White (2 pieces) Bolt Cap Sets – Sedona Beige (2 pieces) Bolt Cap Sets – Ebony (2 pieces) |
| 16 | THU098#01 THU098#03 THU098#11 THU098#12 THU098#51 | Bolt Cap Sets – Cotton (20 pieces) Bolt Cap Sets – Bone (20 pieces) Bolt Cap Sets – Colonial White (20 pieces) Bolt Cap Sets – Sedona Beige (20 pieces) Bolt Cap Sets – Ebony (20 pieces) |
Actual Product may vary slightly from illustration.
Note:
Product Number Explanations
| Two-Piece Toilet (CST) Gravity Type Toilet (744) Model (S) G-MAX® (B) Bolt Down Tank Lid | Tank (ST) Tank (743) Model (S) G-MAX® (B) Bolt Down Tank Lid | Bowl (C) Bowl (744) Model (S) G-MAX® (L) ADA Compliant |
PD-00247 v.10
Parts Manual DEC 2021
