CST746CSMFG.10, MS746124CSMFG.10, MW7463046CSMFG(A).10 & MW7463056CSMFG(A).10
| CST746CSMFG.10 CT746CUFG.10 ST746SMA | MW7463046CSMFG(A). 10 CT746CUFGT40.10 ST746SMA | MS746124CSMFG.10 CT746CUFGT40.10 ST746SMA |
| MW7463056CSMFG(A). 10 CT746CUFGT40.10 ST746SMA | ||
10” Drake® 1.6 & 0.8 Gpf Toilet, Elongated
DYNAMAX TORNADO FLUSH®, Universal Height, (including CEFIONTECT®)

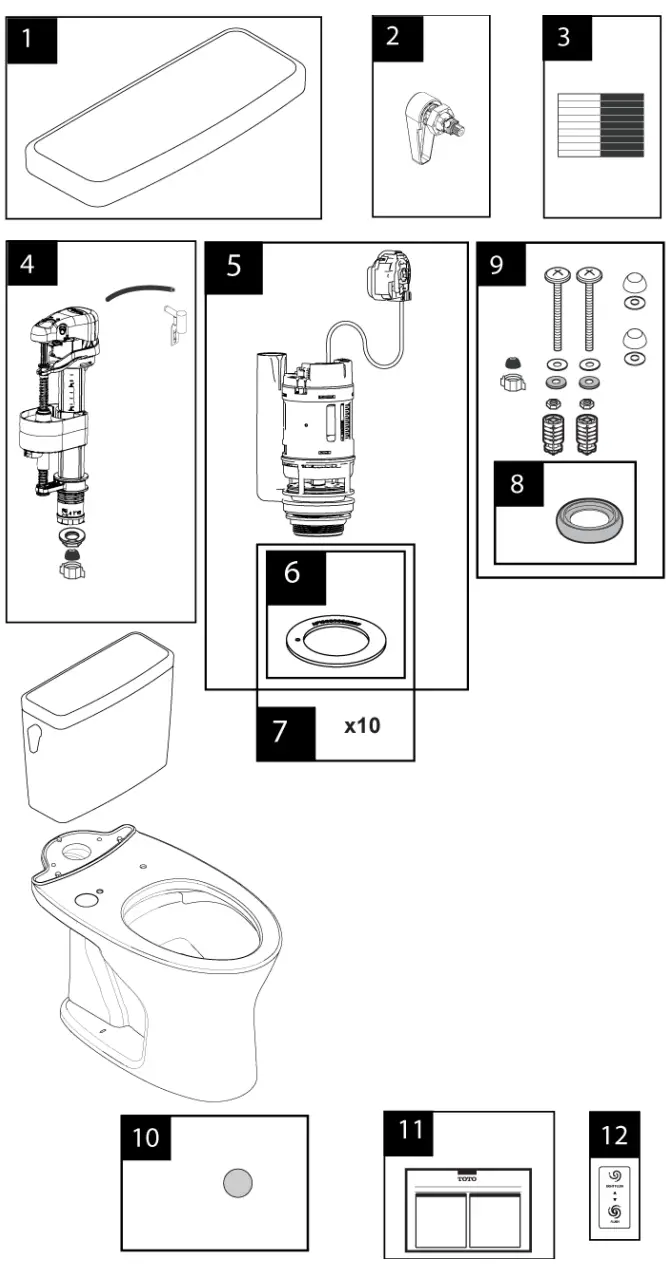

CST746CSMFG.10 10 Inch Drake 1.6 and 0.8 Gpf Toilet
Actual Product may vary slightly from illustration.
| Item | Part | Description |
| 1 | TCU746CR#01 TCU746CR#03 TCU746CR#11 TCU746CR#12 TCU746CR#51 | Tank Lid w/ Velcro Tape – Cotton Tank Lid w/ Velcro Tape – Bone Tank Lid w/ Velcro Tape – Colonial White Tank Lid w/ Velcro Tape – Sedona Beige |
| 2 | THU773#CP-A THU773#PN-A THU773#BN-A THU773#01-A | Trip Lever Handle – Chrome Plated Trip Lever Handle – Polished Nickel Trip Lever Handle – Brushed Nickel Trip Lever Handle – Cotton |
| 3 | THU107 | Velcro Tape |
| 4 | TSU833.07-A | Fill Valve Assembly |
| 5 | THU777S-A | Flush Valve Assembly, 1.6 & 0.8 GPF |
| 6 | 9BU112E-A | Flush Tower Seal Gasket – 1 piece |
| 7 | THU744 | Flush Tower Seal Gasket – 10 pieces |
| 8 | 9BU109E-A | Tank to Bowl Gasket |
| 9 | THU778#01-A THU778#03-A THU778#11-A THU778#12-A THU778#51-A | Tank to Bowl Mounting Hardware – Cotton White Tank to Bowl Mounting Hardware – Bone Tank to Bowl Mounting Hardware – Colonial White Tank to Bowl Mounting Hardware – Sedona Beige Tank to Bowl Mounting Hardware – Ebony |
| 10 | 0EU147#01-A 0EU147#03-A 0EU147#11-A 0EU147#12-A 0EU147#51-A | Conceal Sticker – Cotton White Conceal Sticker – Bone Conceal Sticker – Colonial White Conceal Sticker – Sedona Beige Conceal Sticker – Ebony |
| 11 | 0GU193 | Installation Instruction |
| 12 | 0EU148 0EU148-1 | Dual Flush Sticker – Ebony Tank |
Note:
Product Number Explanations
| Two-Piece Toilet (CST) Gravity Type Toilet (MS) Toilet & Seat Combo (MW) Toilet & WASHLET® Combo (746) Model (C) DYNAMAX TORNADO FLUSH® (S) 1.6 & 0.8 GPF (M) DUAL-MAX® (F) Universal Height (G) CEFIONTECT® (.10) 10” | Tank (ST) Tank (746) Model (S) 1.6 & 0.8 GPF (M) DUAL-MAX® (A) Autoflush Compatible | Bowl (CT) Bowl (746) Model (C) DYNAMAX TORNADO FLUSH® (F) Universal Height (G) CEFIONTECT® (T40) WASHLET®+ (.10) 10” |
PD-01257 v.04
Parts Manual APR 2023
