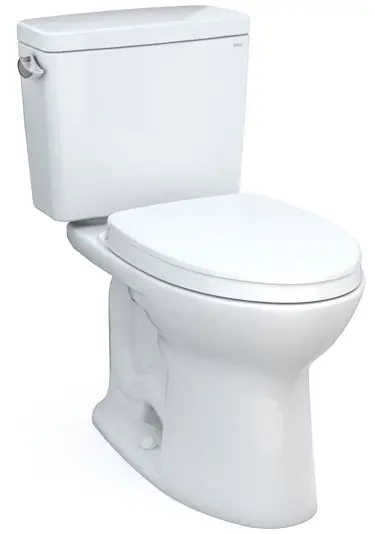

MS776124CEG
Drake® Two-Piece Toilet, 1.28 GPF

Contents hide

1 FEATURES

2 MODELS

3 COMPONENTS

4 OPTIONAL COMPONENTS

5 COLORS/FINISHES

6 PRODUCT SPECIFICATION

11 Documents / Resources

11.1 References

12 Related Posts

FEATURES

TORNADO FLUSH® system, high-efficiency (1.28 GPF/4.8 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Elongated front bowl and seat · Chrome plated trip lever · 12″ Rough-in, supply line sold separately

MODELS

MS776124CEG (#01)
With CEFIONTECT ceramic glaze & includes SS124
SoftClose® seat

COMPONENTS

C776CEGT40
Elongated bowl with CEFIONTECT
ST776EA
Tank and cover only
SS124
SoftClose seat

OPTIONAL COMPONENTS

THU808(#01, #03, #11, #12, #51, #PN, #BN, #RB)-A
Trip Lever – Cotton, Bone, Colonial White, Sedona Beige, Ebony, Polished Nickel, Brushed Nickel, Oil Rubbed Bronze)

COLORS/FINISHES

#01 Cotton

TORNADO FLUSH

CEFIONTECT

PRODUCT SPECIFICATION

The two-piece high-efficiency TORNADO FLUSH system toilet shall be 1.28 GPF/4.8 LPF. Toilet shall have CEFIONTECT ceramic glaze and be at Regular Height. Toilet shall have high-profile tank, elongated front bowl, SoftClose seat and Chrome trip lever. Toilet shall be TOTO Model MS776124CEG#01.

CODES/STANDARDS

Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC®), EPA WaterSense, State of Massachusetts, City of Los Angeles, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
Complies with CA Prop 65 warning requirements

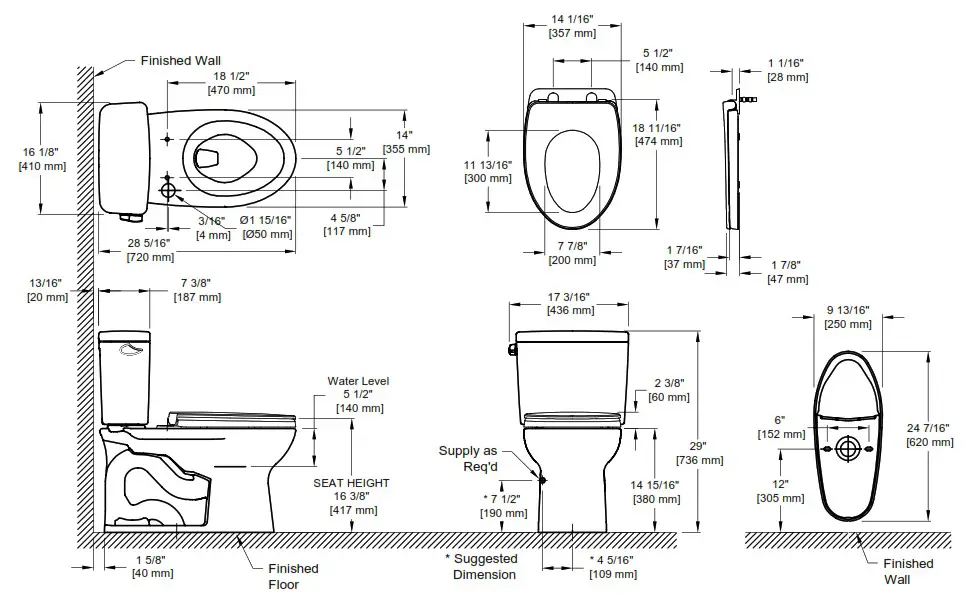

SPECIFICATIONS

Water Use	1.28 GPF (4.8 LPF)
Flush System	TORNADO FLUSH®
Min. Water Pressure	8 psi (Flowing)
Water Surface	r x6-7/8″
Trap Diameter	2-1/8″
Rough-in	12″
Trap Seal	2-1/8′
Warranty	One Year Limited Warranty
Material	Vitreous China
Shipping Weight	C776CEGT40 57 lbs. ST776EA 32 lbs.
Shipping Dimensions	C776CEGT40 29-3/4″ Lx 15″ VV1 x 10-5/8″ W2 x 16-1/4″ H ST776EA 18-3/4″ L x 8-7/8″ Wx 16-1/4″ H

INSTALLATION NOTES

Back-to-Back Toilet Installations: TOTO recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.
