TOTO MW7463046CEMG Drake WASHLET Plus S500e Close Coupled Toilet Owner’s Manual

FEATURES

• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning power to reach every part of the bowl
• High-efficiency dual flush 1.28 & 0.8 GPF (4.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
• Design of the bowl reduces water flow resistance resulting in a quieter flushing sound
• 12″ Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ S500e and tank set
• EWATER+® auto-cleans wand and bowl
• On-demand remote function cleans wand with EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Flush available as upgrade
• Semi-concealed trap way

MODELS & COMPONENTS

• MW7463046CEMGA (#01)
  With CEFIONTECT ceramic glaze, WASHLET+ S500e with contemporary design and Auto Flush
  • CT746CUGT40
    Elongated bowl with CEFIONTECT
  • ST746EMA
    Tank and cover only
  • SW3046AT40
    WASHLET+ S500e
  • THU765
    Auto Flush Kit
• MW7463046CEMG (#01)
  Same as MW7463046CEMGA without Auto Flush
  • CT746CUGT40
    Elongated bowl with CEFIONTECT
  • ST746EMA
    Tank and cover only
  • SW3046AT40
    WASHLET+ S500e

Optional Components

• THU773#01-A
  Trip Lever – Cotton
• THU773#PN-A
  Trip Lever – Polished Nickel
• THU773#BN-A
  Trip Lever – Brushed Nickel

COLORS/FINISHES

• #01 Cotton

DYNAMAX

	TORNADO FLUSH
	CEFIONTECT
	EWATER+
	Auto Flush

PRODUCT SPECIFICATION

The two-piece high-efficiency DYNAMAX TORNADO FLUSH toilet shall be dual flush 1.28 GPF/0.8 GPF.
Toilet shall be 12″ rough-in. Toilet shall have CEFIONTECT ceramic glaze.
Toilet shall have elongated front bowl and Polished Chrome trip lever.
Toilet shall be TOTO Model MW7463046CEMG____
See SW3046AT40 Specification Sheet for details on included WASHLET.

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14
• Certifications: IAPMO(CUPC®), EPA Water Sense, State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
• Legislative Compliance: California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
• Complies with CA Prop 65 warning requirements.


SPECIFICATIONS

See SW3046AT40 Specification Sheet for details on included WASHLET.

INSTALLATION NOTES

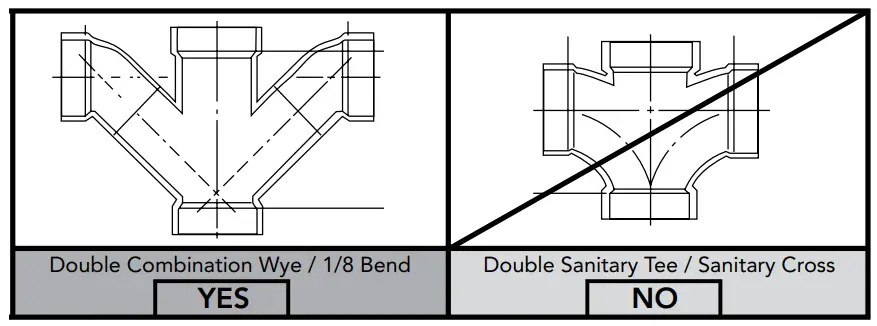

Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.

To maintain adequate wall gap between the back of the tank and wall, mount the floor flange at a nominal 12” rough-in distance.

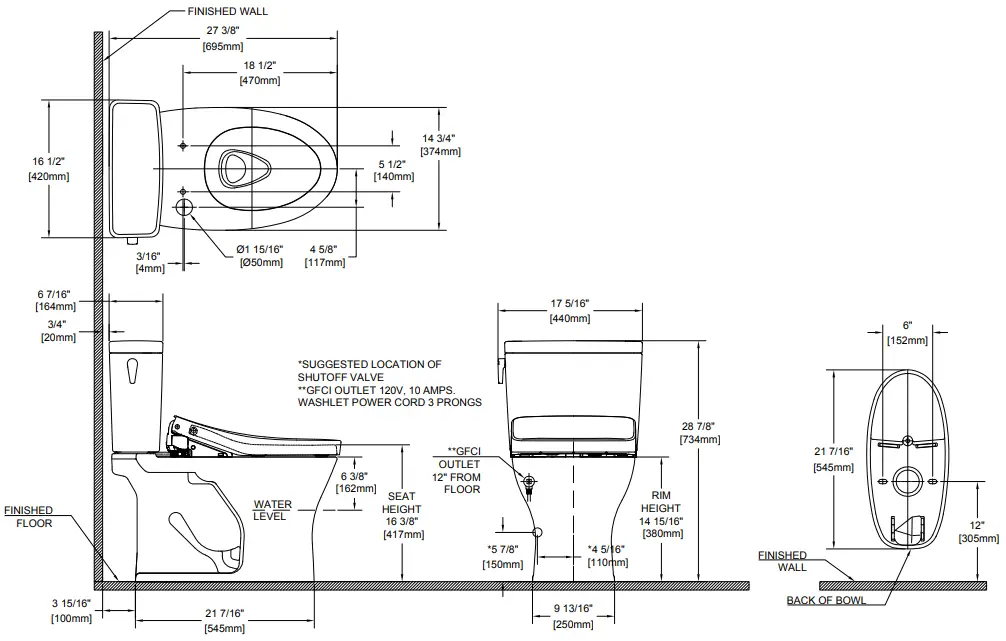

DIMENSIONS

These dimensions and specifications are subject to change without notice.

CUSTOMER SUPPORT

Ph: (888) 295-8134
Fax: (800) 699-4889
 www.totousa.com
