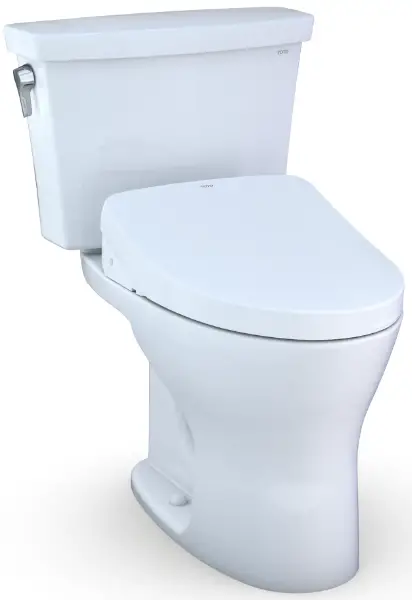

TOTO MW7463056CSMG Drake WASHLET Plus S550e Close Coupled Toilet Owner’s Manual

Contents hide

1 FEATURES

2 MODELS & COMPONENTS

3 COLORS/FINISHES

4 PRODUCT SPECIFICATION

10 Documents / Resources

10.1 References

11 Related Posts

FEATURES

Concealed supply connection for seamless installation
DYNAMAX TORNADO FLUSH® utilizes 360º cleaning power to reach every part of the bowl
Dual flush 1.6 & 0.8 GPF (6.0 & 3.0 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Design of the bowl reduces water flow resistance resulting in a quieter flushing sound
12″ Rough-in
Chrome plated trip lever
Elongated front bowl and WASHLET+ S550e and tank set
EWATER+® auto-cleans wand and bowl
On-demand remote function cleans wand with EWATER+
PREMIST of bowl before each use
Remote control operated
Auto Flush available as upgrade
Auto Open / Close Lid
Night light
Auto Flush available as upgrade
Semi-concealed tramway

MODELS & COMPONENTS

MW7463056CSMGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S550e with contemporary design and Auto Flush
- CT746CUGT40
  Elongated bowl with CEFIONTECT
- ST746SMA
  Tank and cover only
- SW3056AT40
  WASHLET+ S550e
- THU765
  Auto Flush Kit
MW7463056CSMG (#01)
Same as MW7463056CSMGA without Auto Flush
- CT746CUGT40
  Elongated bowl with CEFIONTECT
- ST746SMA
  Tank and cover only
- SW3056AT40
  WASHLET+ S550e

Optional Components

THU773#01-A
Trip Lever – Cotton
THU773#PN-A
Trip Lever – Polished Nickel
THU773#BN-A
Trip Lever – Brushed Nickel

COLORS/FINISHES

#01 Cotton

DYNAMAX

	TORNADO FLUSH
	EWATER+
	CEFIONTECT
	Auto Flush

PRODUCT SPECIFICATION

The DYNAMAX TORNADO FLUSH toilet shall be dual flush 1.6 GPF/0.8 GPF. Toilet shall be 12″ rough-in. Toilet
shall have CEFIONTECT ceramic glaze.
Toilet shall have elongated front bowl and Polished Chrome trip lever.
Toilet shall be TOTO Model MW7463056CSMG____.
See SW3056AT40 Specification Sheet for details on included WASHLET.

CODES/STANDARDS

Meets and exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14
Certifications: IAPMO(cUPC®), EPA Water Sense, State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
Complies with CA Prop 65 warning requirements.

SPECIFICATIONS

Water Use	1.6 & 0.8 GPF (6.0 & 3.0 LPF)
Flush System	DYNAMAX TORNADO FLUSH®
Min. Water Pressure	8 psi (Flowing)
Water Surface	5-5/8″ x 4-1/8″
Trap Diameter	2-1/2″
Rough-in	12″
Trap Seal	2-1/8″
Warranty	One Year Limited Warranty
Material	Vitreous China
Shipping Weight	CT746CUGT40 66 lbs. ST746SMA 35 lbs.
Shipping Dimensions	CT746CUGT40 18-3/4″ L x 10-1/2″ W x 18-1/8″H ST746SMA 18-3/4″ L x 8-3/8″ W x 16″H

See SW3056AT40 Specification Sheet for details on included WASHLET

INSTALLATION NOTES

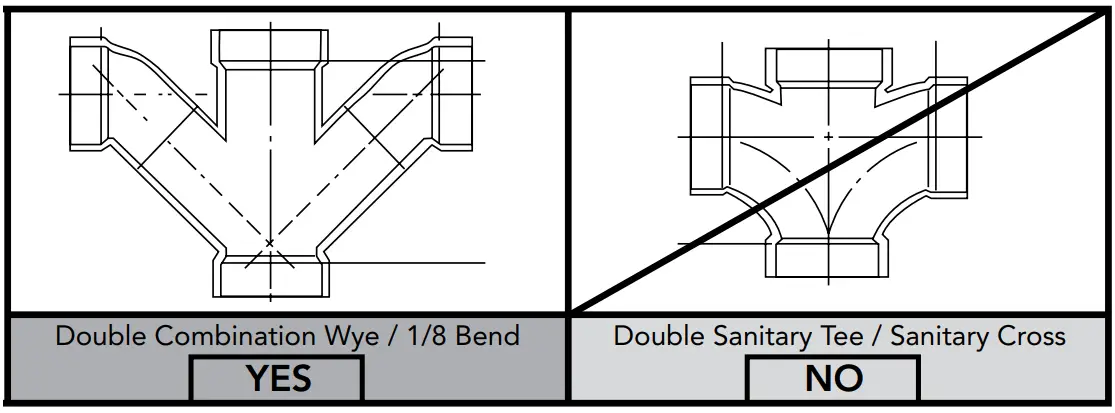

Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.

To maintain adequate wall gap between the back of the tank and wall, mount the floor flange at a nominal 12” rough-in distance.

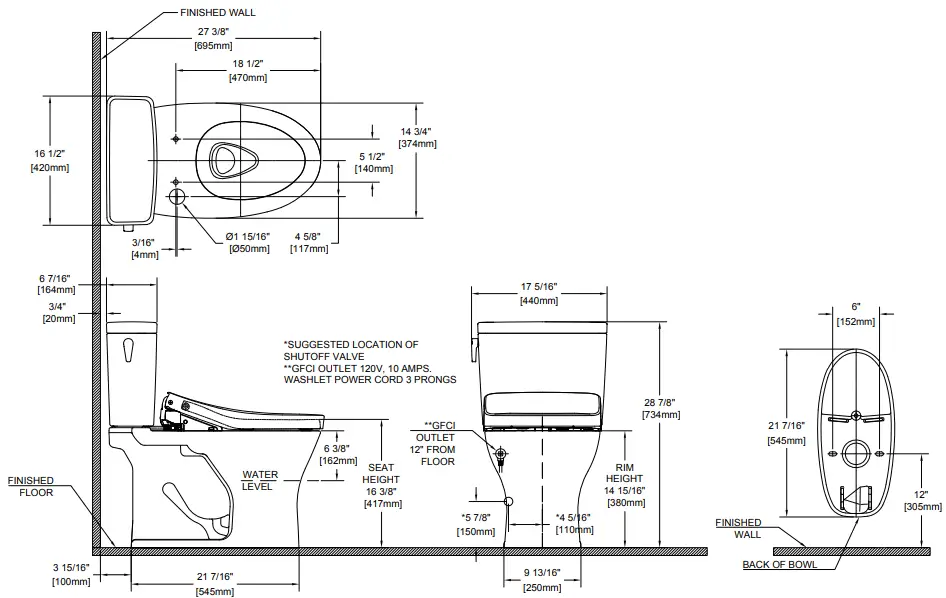

Ultra-low high efficiency toilets require a system with adequate supplemental flows from other water usage fixtures and a 4″ ID drain line with minimum 2% slope and maximum linear runs of 60ft. Fixture Dimensions shown are nominal.
