TOTO CST746CEM Drake Close Coupled Toilet

FEATURES

DYNAMAX TORNADO FLUSH® utilizes 360º cleaning power to reach every part of the bowl
High-efficiency dual flush 1.28 & 0.8 GPF (4.8 & 3.0 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Design of the bowl reduces water flow resistance resulting in a quieter flushing sound
Elongated front bowl, fewer seat
Chrome-plated trip lever
12″ Rough-in
Semi-concealed tramway

MODELS

CST746CEMG (#01, #03, #11, #12)
With CEFIONTECT ceramic glaze without seat
CST746CEM (#51)
Same as CST746CEMG without CEFIONTECT ceramic glaze
CST746CEMRG (#01)
Same as CST746CEMG with right-hand trip lever

COMPONENTS

CT746CU(G)
Elongated bowl with CEFIONTECT
ST746EMA
Tank and cover only
ST746EMR (#01)
Tank and cover only with right-hand trip lever

OPTIONAL COMPONENTS

ST746EMB (#01)
Insulated Tank
ST746EMD (#01)
Bolt Down Tank
ST746EMDB (#01)
Insulated Bolt Down Tank
THU773(#01, #BN, #PN)-A
Trip Lever – Cotton, Brushed Nickel, Polished Nickel
THU774(#01, #BN, #PN, #CP)-A
Right Hand Trip Lever – Cotton, Brushed Nickel, Polished Nickel, Polished Chrome

COLORS/FINISHES

#01 Cotton
#12 Sedona Beige

Made to Order

#03 Bone
#11 Colonial White
#51 Ebony

PRODUCT SPECIFICATION
The two-piece high-efficiency DYNAMAX TORNADO FLUSH toilet shall be dual flush 1.28 GPF/0.8 GPF. The toilet shall be 12″ rough-in. The toilet shall have an optional CEFIONTECT ceramic glaze. The toilet shall have an elongated front bowl and chrome-plated trip lever. The toilet shall be TOTO Model CST746CEM.

CODES/STANDARDS

Meets and exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14
Certifications: IAPMO(cUPC®), EPA WaterSense, State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
Complies with CA Prop 65 warning requirements

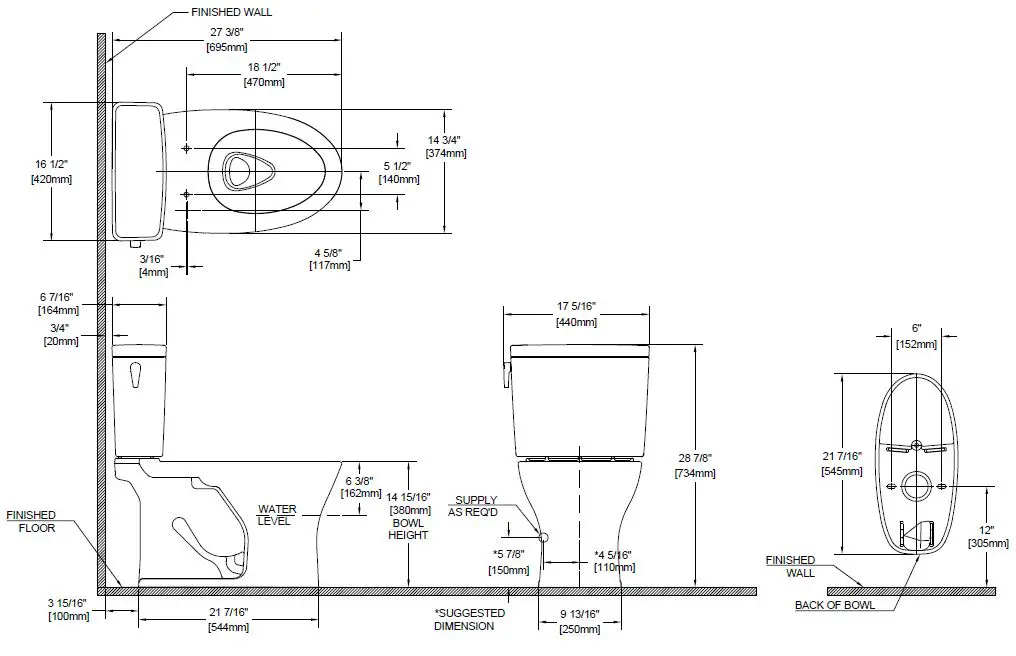

SPECIFICATIONS

Water Use	1.28 & 0.8 GPF (4.8 & 3.0 LPF)
Flush System	DYNAMAX TORNADO FLUSH®
Min. Water Pressure	8 psi (Flowing)
Water Surface	5-5/8″ x 4-1/8″
Trap Diameter	2-1/2″
Rough-in	12″
Trap Seal	2-1/8″
Warranty	One-Year Limited Warranty
Material	Vitreous China
Shipping Weight	CT746CU(G) 61 lbs. ST746EMA 35 lbs.
Shipping Dimensions	CT746CU(G) 29″ L x 15-1/2″ W1 x 10-1/2″ W2 x 16-1/2″ H ST746EMA 18-3/4″ L x 8-3/8″ W x 16″ H

INSTALLATION NOTES

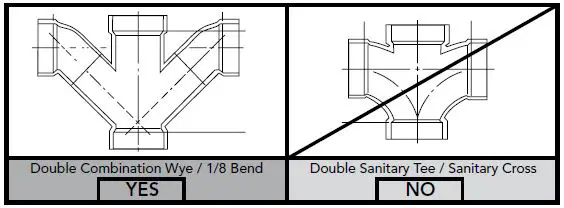

Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.
