Toto Cst776cef Drake Washlet S550e Two Piece Toilet And Bidet System User Manual

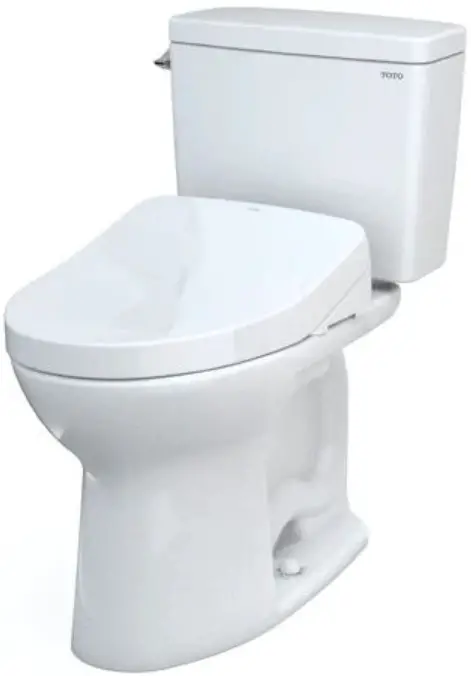

TOTO CST776CEF Drake WASHLET S550e Two Piece Toilet and Bidet System User Manual

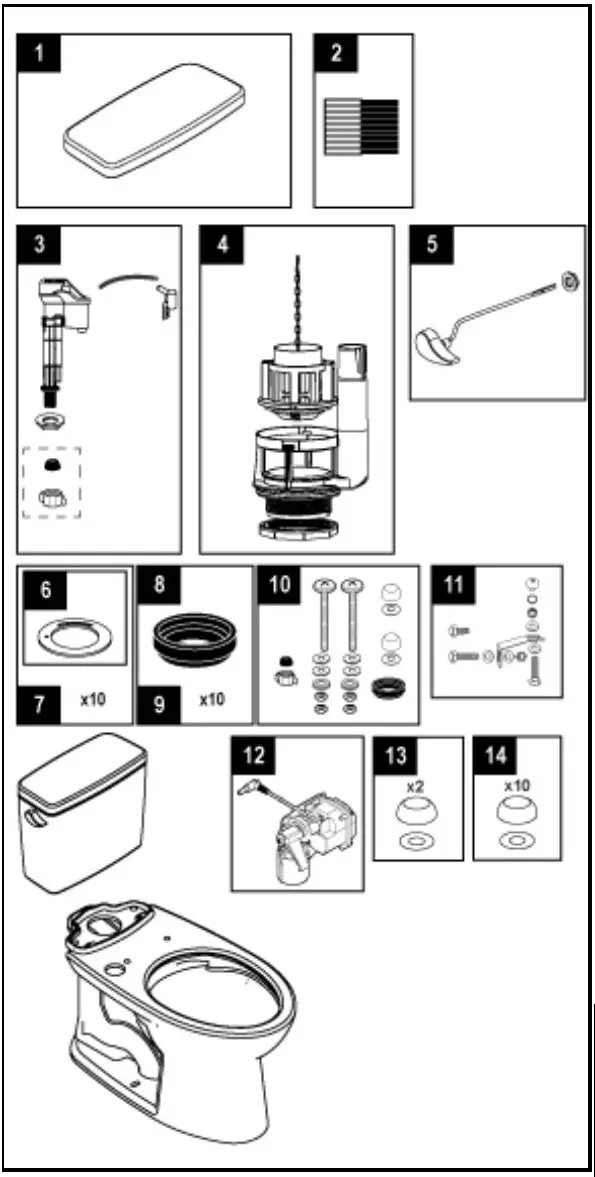

Parts Lists

Actual Product may vary slightly from illustration.

1. TCU776CR#01 Tank Lid w/ Velcro Tape – Cotton 7463
   TCU776CR#03 Tank Lid w/ Velcro Tape – Bone 7464
   TCU776CR#11 Tank Lid w/ Velcro Tape – Colonial White 7482
   TCU776CR#12 Tank Lid w/ Velcro Tape – Sedona Beige 7483
   TCU776CR#51 Tank Lid w/ Velcro Tape – Ebony 7484
2. THU107 Velcro Tape 7485
3. TSU708 Fill Valve Assembly 7486
4. THU825-A Flush Valve Assembly,1.28 GPF 7487
   THU826-A Flush Valve Assembly,1.28 GPF (Insulated Tank) 7488
   5 THU808#CP-A Trip Lever Handle – Chrome Plated 7489
   THU808#PN-A Trip Lever Handle – Polished Nickel 7490
   THU808#BN-A Trip Lever Handle – Brushed Nickel 7491
   THU808#PB-A Trip Lever Handle – Polished Brass 7492
   THU808#RB-A Trip Lever Handle – Oil Rubbed Bronze 7493
   THU808#01-A Trip Lever Handle – Cotton 7494
   THU808#03-A Trip Lever Handle – Bone 7495
   THU808#11-A Trip Lever Handle – Colonial White 7496
   THU808#12-A Trip Lever Handle – Sedona Beige 7497
   THU808#51-A Trip Lever Handle – Ebony 7498
   THU820#01-A Trip Lever Right Handle – Cotton 7499
   THU820#CP-A Trip Lever Right Handle – Chrome Plated 7500
   THU820#PN-A Trip Lever Right Handle – Polished Nickel 7501
   THU820#BN-A Trip Lever Right Handle – Brushed Nickel 7502
   THU820#PB-A Trip Lever Right Handle – Polished Brass 7503
5. THU407 Seal Gasket (1 piece) 7504
6. THU370 Seal Gasket (10 pieces) 7505
7. 9BU024E Tank to Bowl Gasket – 1pc 7506
8. THU131 Tank to Bowl Gasket – 10pc 7507
9. THU828#01-A Tank to Bowl Mounting Hardware – Cotton 7508
   THU828#03-A Tank to Bowl Mounting Hardware – Bone 7509
   THU828#11-A Tank to Bowl Mounting Hardware – Colonial White 7510
   THU828#12-A Tank to Bowl Mounting Hardware – Sedona Beige 7511
   THU828#51-A Tank to Bowl Mounting Hardware – Ebony 7512
10. THU089 Bolt Down Set 7513
11. THU767 Autoflush Unit 7810
12. THU044S#XX Bolt Cap Set – (2 Sets) 7811
13. THU098#XX Bolt Cap Set – (10 Sets)

Note:
#XX denotes the following color code: #01, #03, #11, #12 & #51

Product Number Explanations

Two-Piece Toilet

• (CST) Gravity Type Toilet
• (MS) Toilet & Seat Combo
• (MW) Toilet &
• WASHLET® Combo
• (SS) Seat (SW) WASHLET®
• (776) Model
• (C) TORNADO FLUSH®
• (E) 1.28 Gpf
• (G) CEFIONTECT®

Tank

• (ST) Tank (776) Model
• (E) 1.28 Gpf
• (A) AUTO FLUSH
• (B) Bolt Down
• (D) Insulated
• (DB) Insulated Bolt
• Down
• (R) Right Hand Trip
• Lever

Bowl

• (C) Bowl
• (776) Model
• (C) TORNADO
• FLUSH®
• (G) CEFIONTECT®
• (T40) WASHLET®+

Drake® 1.28 Gpf Toilet, Elongated TORNADO FLUSH®, Universal Height, (including CEFIONTECT®), Right Hand Trip Lever
