Bega 23013.1 Wall Luminaire For Indoor Use Instruction Manual

BEGA 23013.1 Wall Luminaire for Indoor Use Instruction Manual

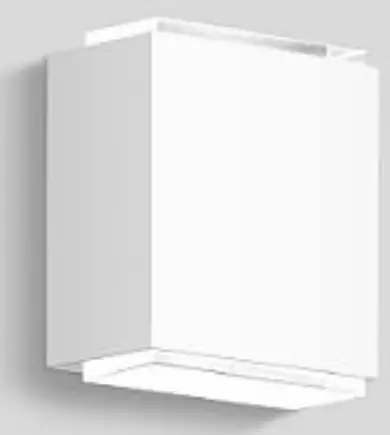

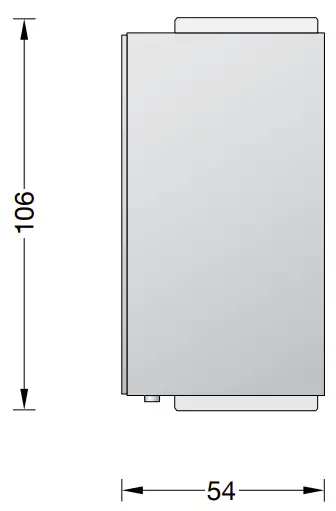

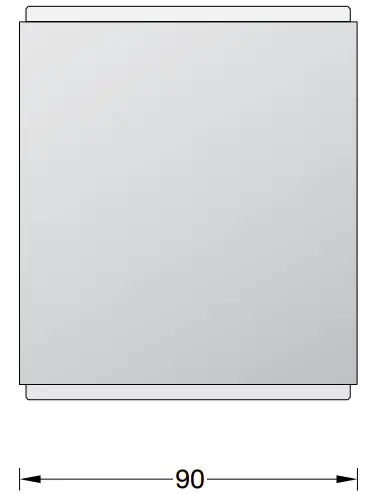

Wall luminaire for indoor use

Instructions for use

Application

• Wall luminaire · indoor luminaire with integrated power supply unit for many lighting tasks in interior applications.
• The light emits upwards and downwards.

Product description

• Die-cast zinc luminaire housing, finish Colour white
• Crystal glass, inside white 1 cable entry for mains supply cable up to ø 10.5 mm max. 3 x 1.5@
• Connection terminal 2.5@
• Earth conductor connection
• BEGA Ultimate Driver® LED power supply unit 220-240 V x 0/50-60 Hz
• DC 176-264 V
• Safety class I
• – Safety mark
• – Conformity mark
• Weight: 0.7 kg
• This product contains light sources of energy efficiency class(es) D

Safety

• The installation and operation of this luminaire are subject to national safety regulations.
• Installation and commissioning may only be carried out by a qualified electrician.
• The manufacturer accepts no liability for damage caused by improper use or installation.
• If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Overvoltage protection

• The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
• To achieve an additional protection against e.g. transients, etc. we recommend separate overvoltage protection components.
• You can find them on our website at www.bega.com.

Lamp

• Module connected wattage: 4 W
• Luminaire connected wattage: 5.2 W
• Rated temperature: ta=25 °C
• Ambient temperature: ta max=45 °C

23 013.1K3

• Module designation: 2x LED-0234/930
• Colour temperature: 3000 K
• Colour rendering: index CRI > 90
• Module luminous flux: 610 lm
• Luminaire luminous: flux 263 lm
• Luminaire luminous efficiency: 50,6 lm/W

Installation

• LED are high-quality electronic components!
• Please avoid touching the light output opening of the LED directly during installation or relamping.
• Undo screws and lift off luminaire top.
• Lead the mains supply cable through the cable entry into the luminaire back housing.
• Note position of application “arrow down”.
• Fix luminaire back housing with enclosed or any other suitable fixing material onto the mounting surface.
• Pull silicone sleeves over the wires.
• Make earth connection and electrical connection to the terminals.
• Make earth conductor connection between luminaire top and luminaire base (plug connection).
• Note position of application “arrow down” of luminaire housing.
• Install luminaire top part, adjust it and tighten screws.

Cleaning · Maintenance

• Clean luminaire regularly with solvent-free cleansers from dirt.
• Defective glass must be replaced.

Replacement of the LED module

• The designation of the LED module is noted on a label in the luminaire.
• The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
• The module can be replaced by qualified persons using standard tools.
• Disconnect the system and open the luminaire.
• Please follow the installation instructions for the
• LED module.
• Defective glass must be replaced.
• Close the luminaire

Spares

• LED power supply unit: DEV-0303/350
• LED module 3000 K: LED-0234/930

2/2 BEGA Gantenbrink-Leuchten KG · Postfach 3160 · 58689 Menden · [email protected] · www.bega.com
