GRAFIK T Touch the future of lighting control User Manual

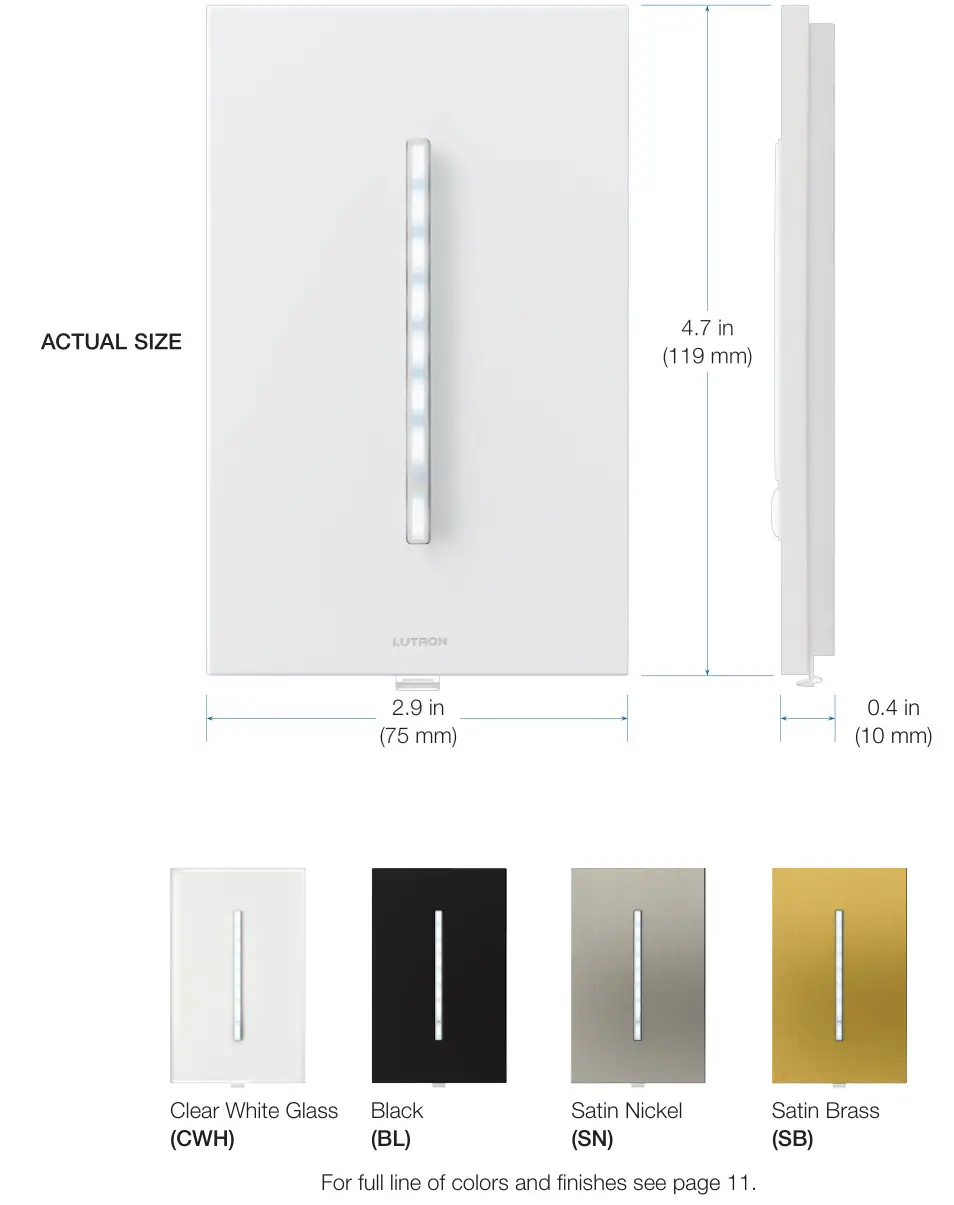

Dimmers and switches
AN ARCHITECTURAL LOOK

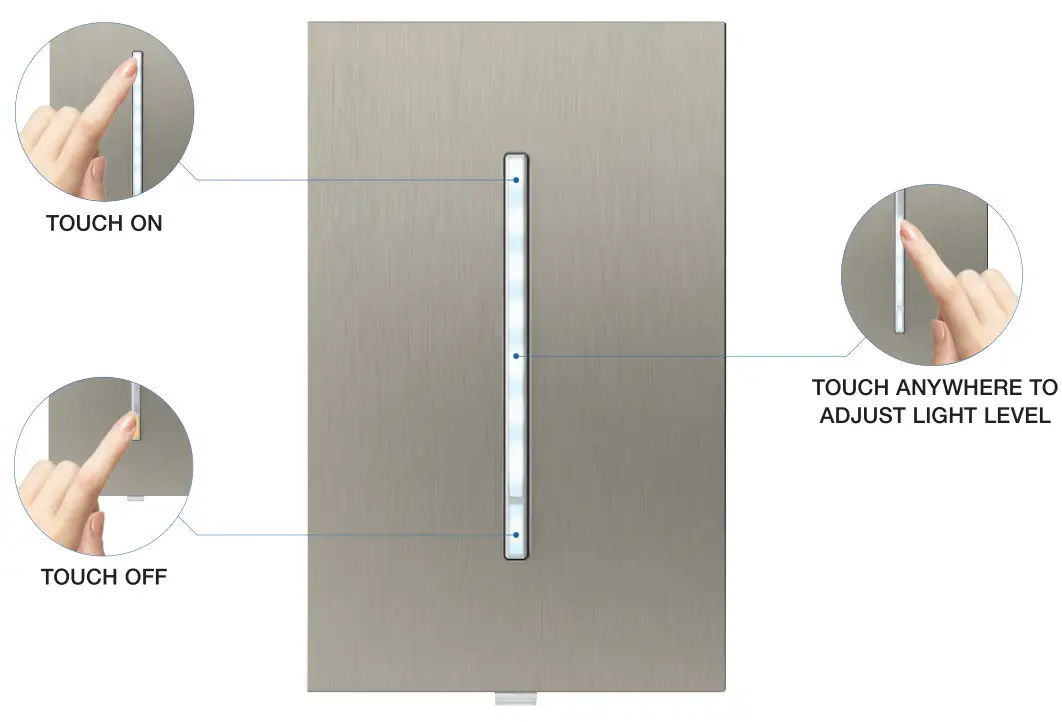

INTUITIVE OPERATION
EASY TO USE
Responsive to the lightest touch and slightest motion
ONE-TOUCH CONTROL
A single touch sets the perfect light level every time
INSTANT FEEDBACK
LED light bar reflects status of lights in space

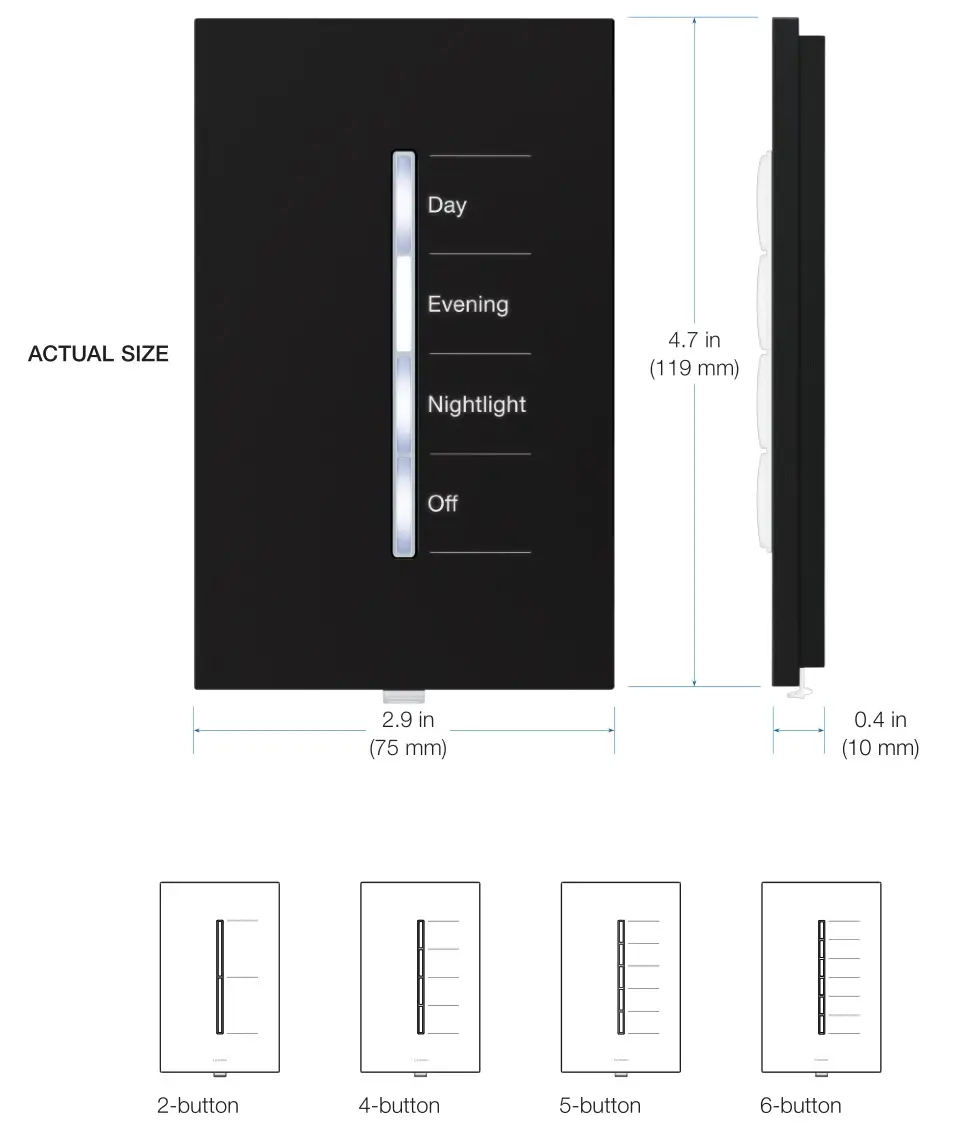

Residential keypads
AN ARCHITECTURAL LOOK
INTUITIVE OPERATION

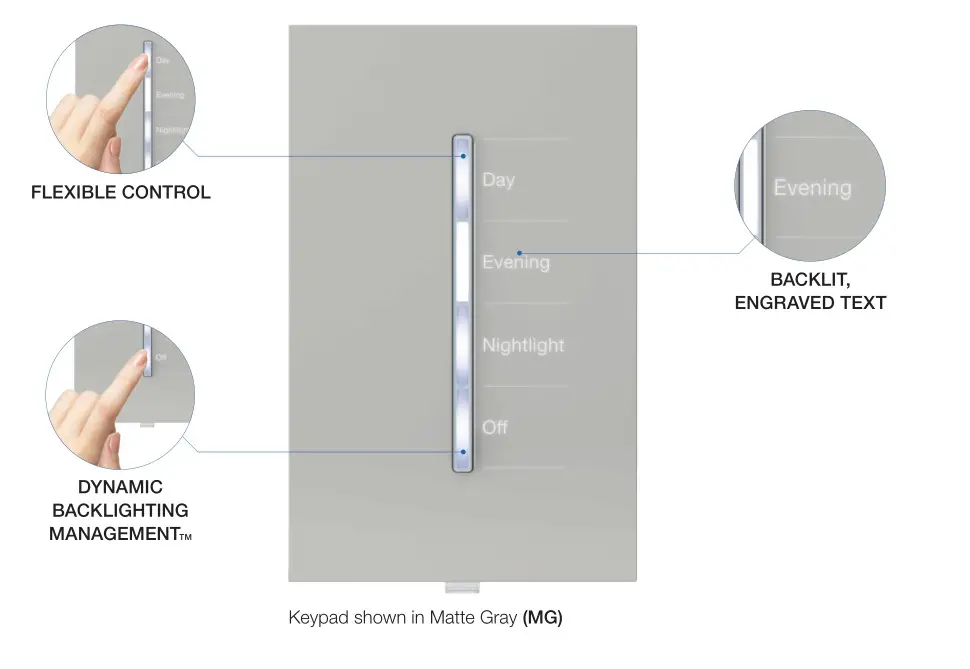

FLEXIBLE CONTROL
Buttons provide scene/zone status, are equally sized, and are fully programmable
BACKLIT, ENGRAVED TEXT
Scene and zone descriptions are backlit, and engraved directly on faceplate providing subtle elegance and also acting as a nightlight
Please note: Grafik T keypads are not available in Architectural Metals and cannot be ganged with other Grafik T controls using Architectural Metals.
DYNAMIC BACKLIGHTING MANAGEMENT
Backlight intensity is automatically adjusted in real time so buttons are easy to read in any light
Meet the family

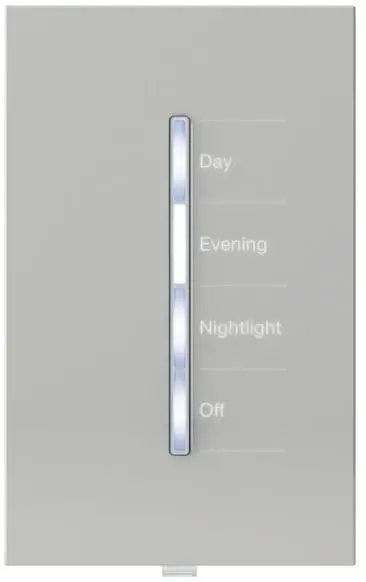

HYBRID KEYPADS
- Residential system control that allows multiple lighting zones to be dimmed from a single location to create scenes (i.e. Welcome, Entertain, Away, etc.)
- Flexible design contains an integrated C•L dimmer to control a local zone as well, ideal for retrofit applications
- Can also be used exclusively as a wireless keypad (load optional)
Note: Hybrid Keypads are only available in Architectural Matte and Glass finishes

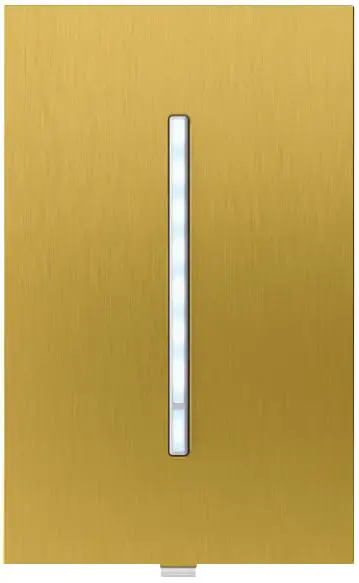

DIMMERS
• LED lightbar with responsive touch interface provides users with one-touch control
• Phase selectable and C•L technology provide superior performance and flexibility for today’s LED light sources
• Pair with wireless sensors and remotes for convenience and code compliance (Clear Connect models only)

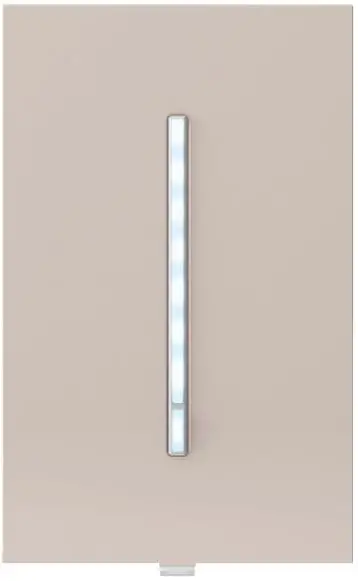

SWITCHES
- An elegant on/off control. Use the toggle button or LED lightbar to toggle the load
- Use for general lighting, fan, and small motor loads

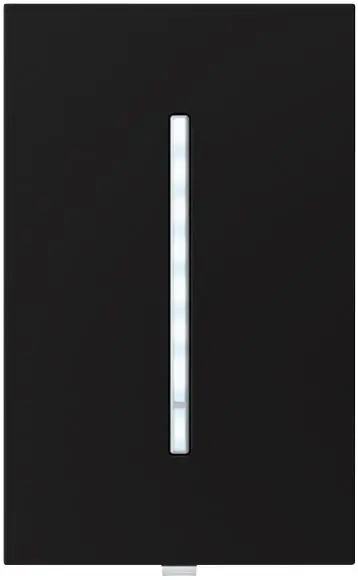

QS SLIDERS
- Wired QS device that works in a Quantum or HomeWorks QS system to control all load types, including third-party devices
- Can be assigned to control any single zone of lights in a system

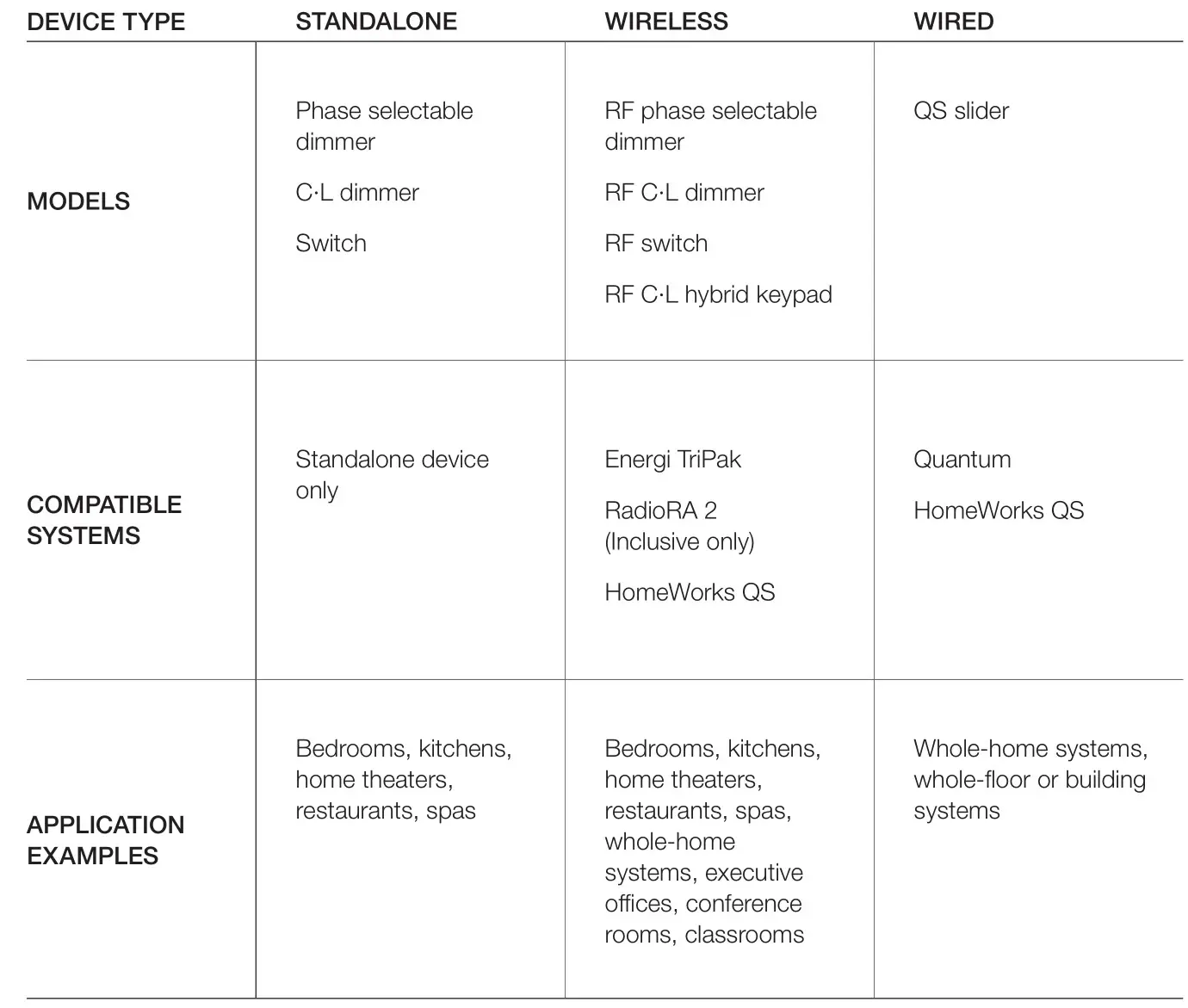

A solution for any project
Product features

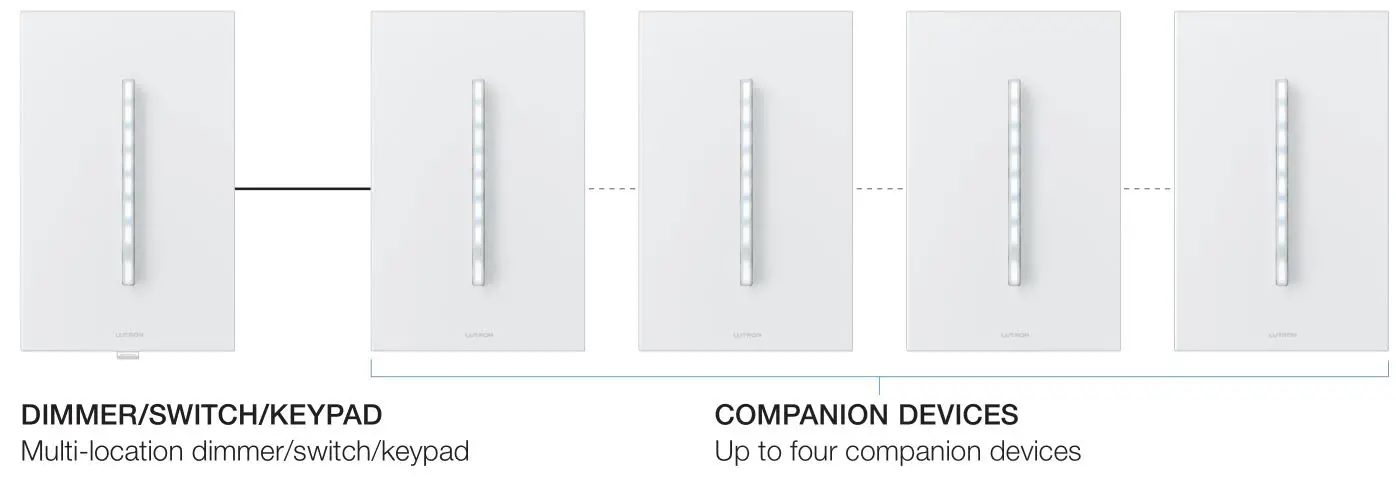

MULTI-LOCATION DIMMING OR SWITCHING, FROM UP TO FIVE LOCATIONS
Multi-location digital dimmer/switch or keypad and companion device(s) required. Utilizes standard 3- or 4-way wiring.

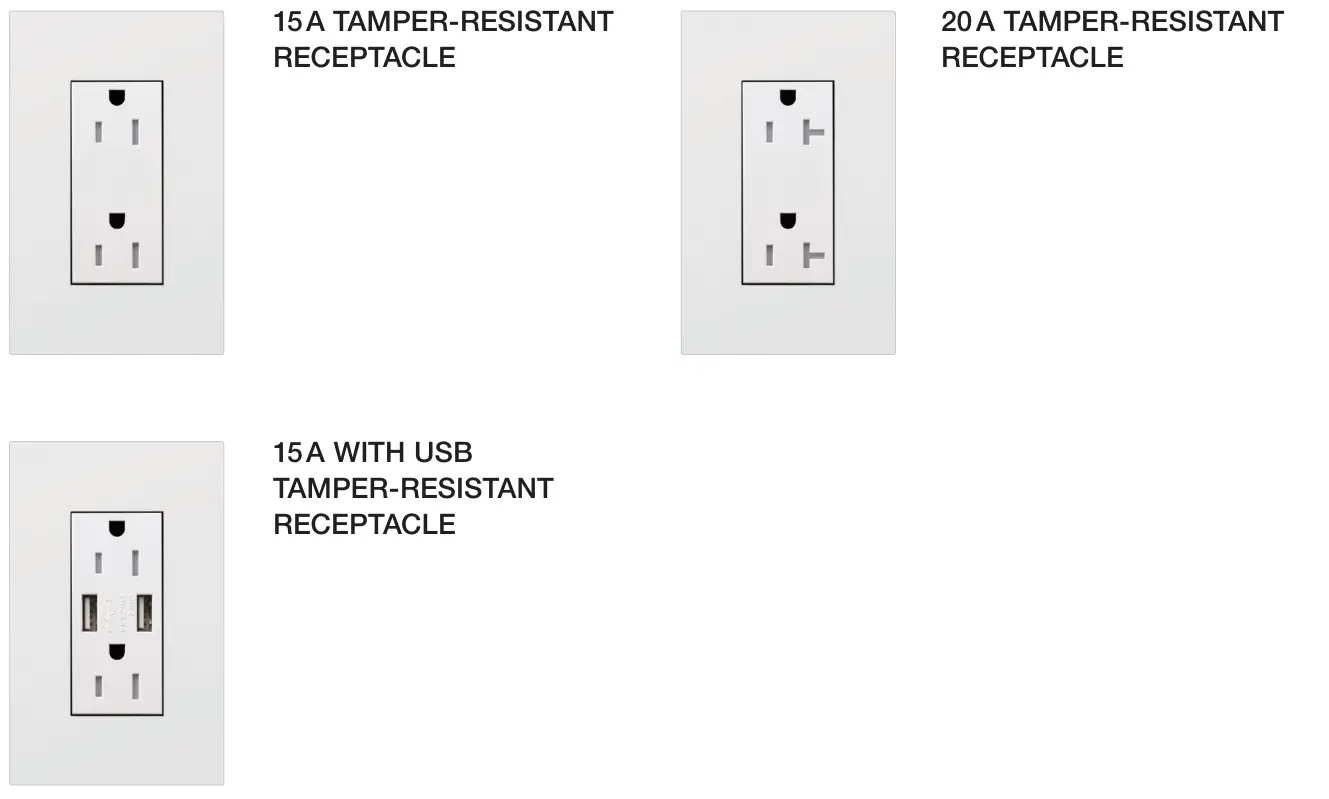

COORDINATING ACCESSORIES1,2
Complete your project with coordinating accessories that complement the architectural look of GRAFIK T
- For model number and ordering information, please reference P/N 369921 on lutron.com
- New Architectural accessories will not fit designer-opening wall plates
Colors and finishes

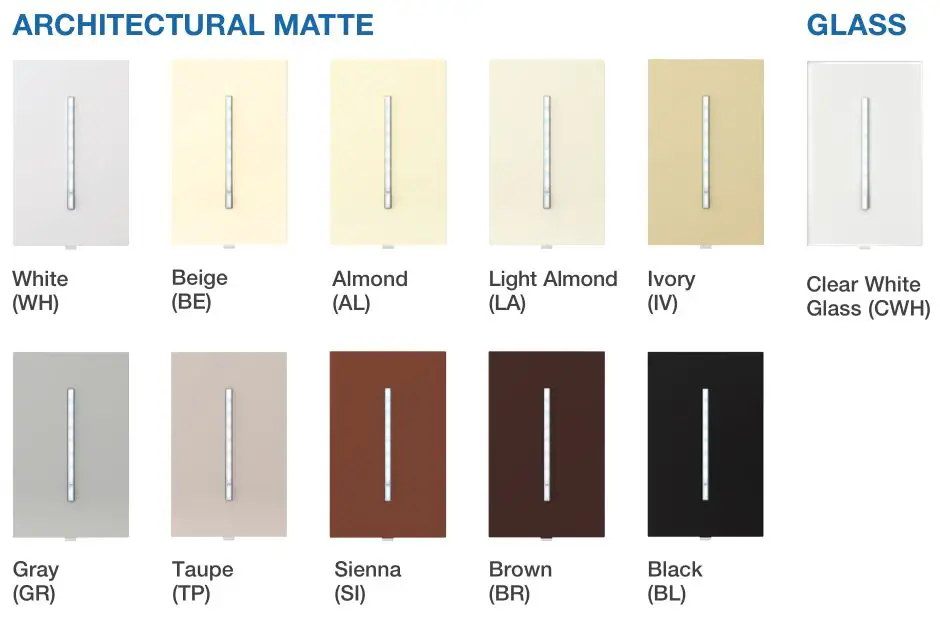

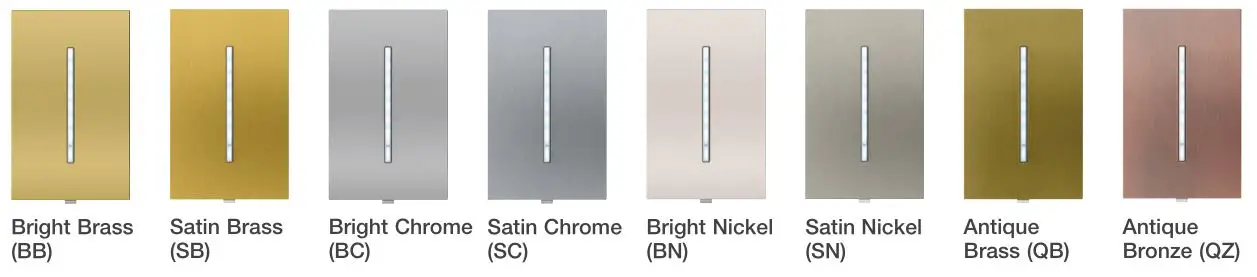

ARCHITECTURAL METALS – FOR DIMMER, SWITCH, QS SLIDER AND COMPANION DEVICES
Please note: Grafik T keypads are not available in Architectural Metals and cannot be ganged with other Grafik T controls using Architectural Metals.
WALLPLATE OPTIONS

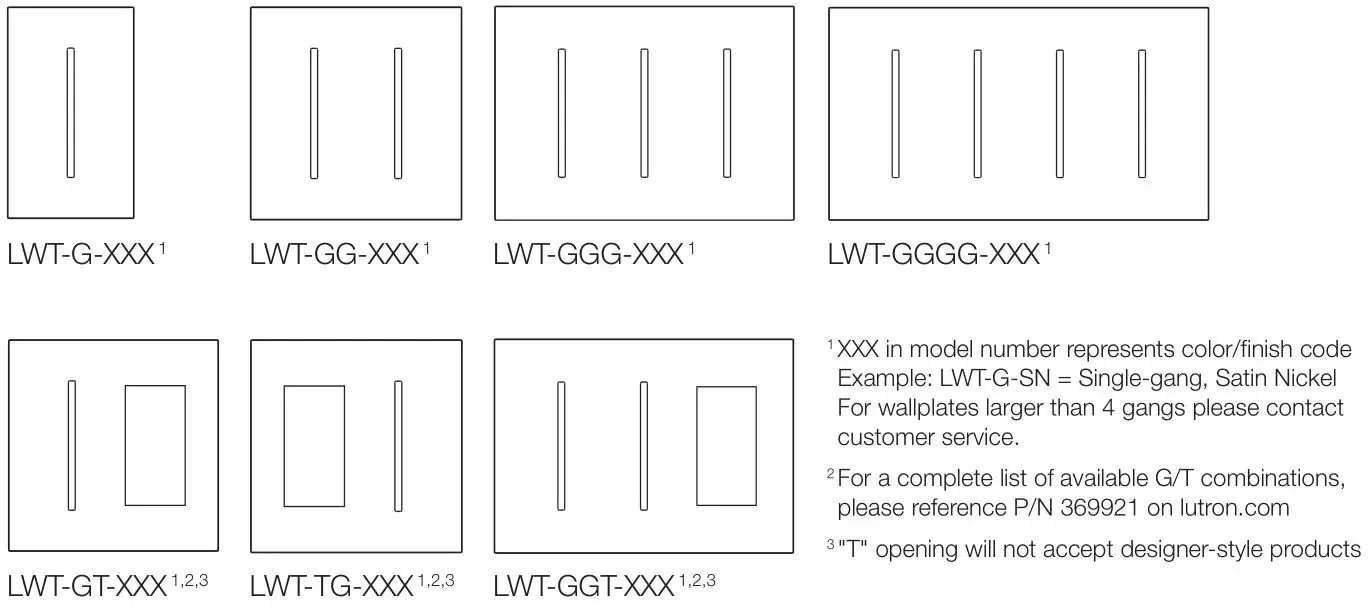

GRAFIK T and New Architectural accessory wallplates available in 1–4 gang

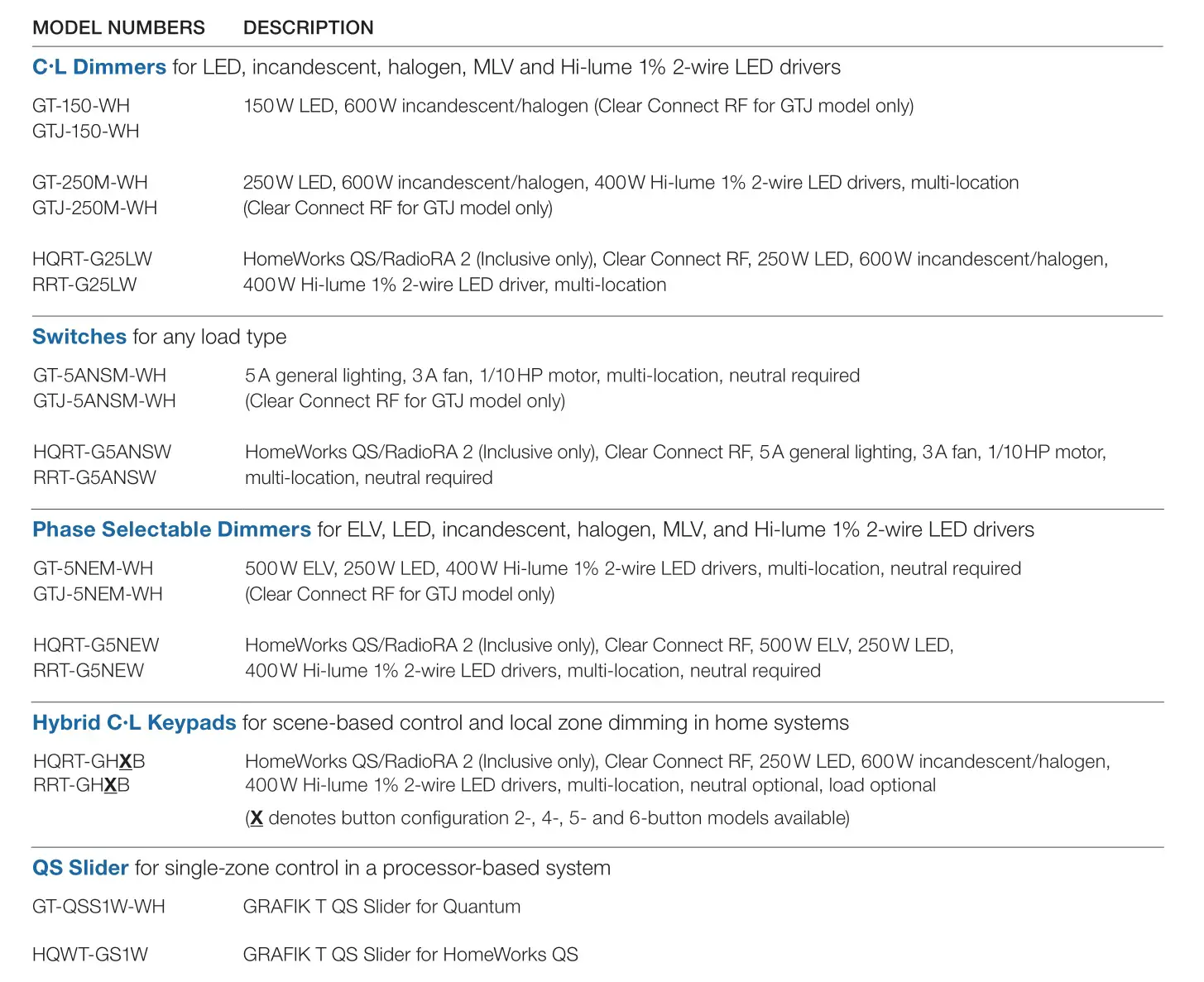

Ordering information*
* For a complete listing of product information and load ratings, please visit lutron.com/grafikt
