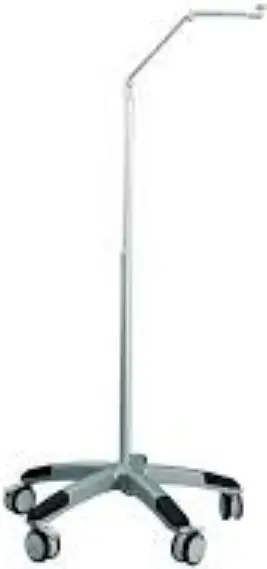

GIMA 23456 Mobile Stand User Manual

Installation Hardware

x 1 The Pole

x 1 Tray

x 5 Castors

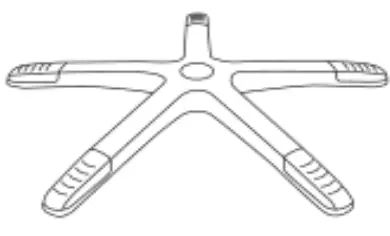

x1 The Base

x1 Folding Rod

Spare Parts Box

x 6 Screw (M3 10)

x 6 Screw Shim

x 1 Screw (M3 10)

x 1Screw (MB)

x 1 Holder

x 1 Tray Base

5mm 4mm 3mm Hex Key

This product contains small parts, keep these away from children.

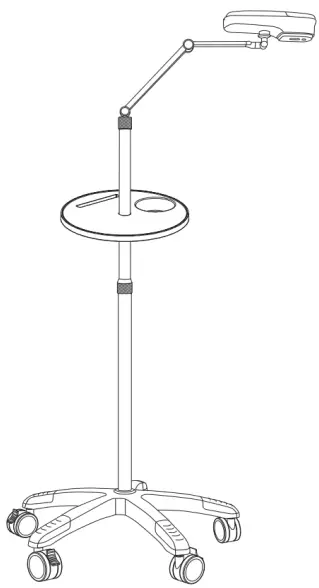

Type A

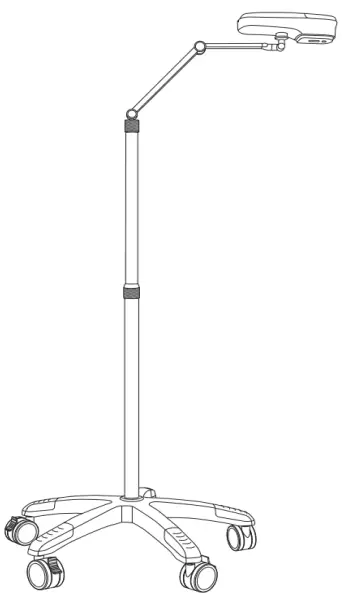

Type B

STEP.1: INSTALL STAND BASE / POLE

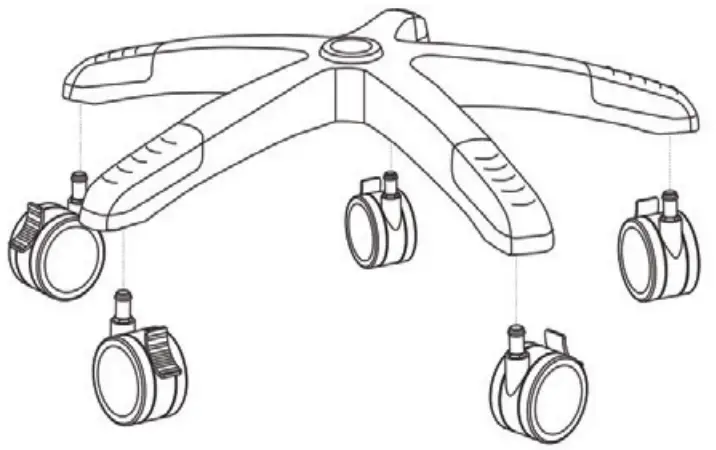

Insert five castors into the hole of base forcibly to make it stable.

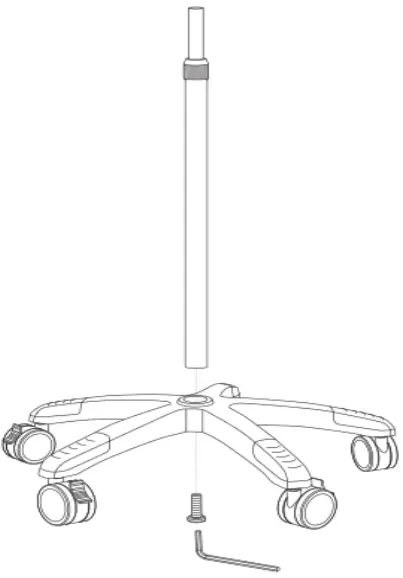

Insert the pole into the base and fasten the screw(M8) with wrench from the bottom of base.

Loose the knob, pull out inner pole at suitable height and then tighten knob, make sure knob is tightened.

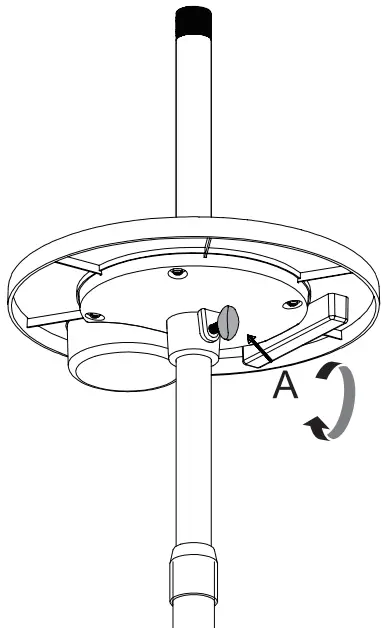

STEP.2: INSTALL TRAY

This is the optional step accroding to customer’s needs. The tray can hold the tools of nurse for puncture.

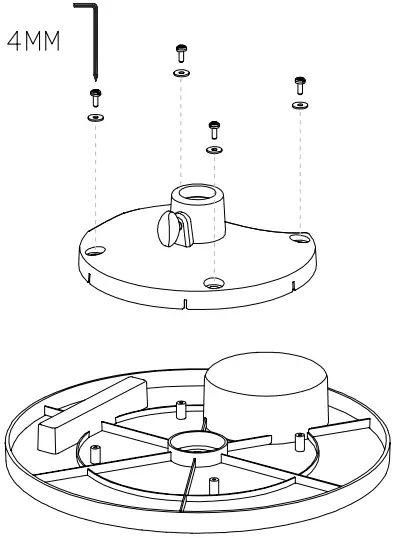

Connect tray base and tray with screw(M3*10) and screw shim.

Install the tray from the top of the pole, adjust it to the appropriate position, and tighten knob A

STEP.3: INSTALL HOSE / HOLDER

Put the knob at the pole, then fully tighten the knob.

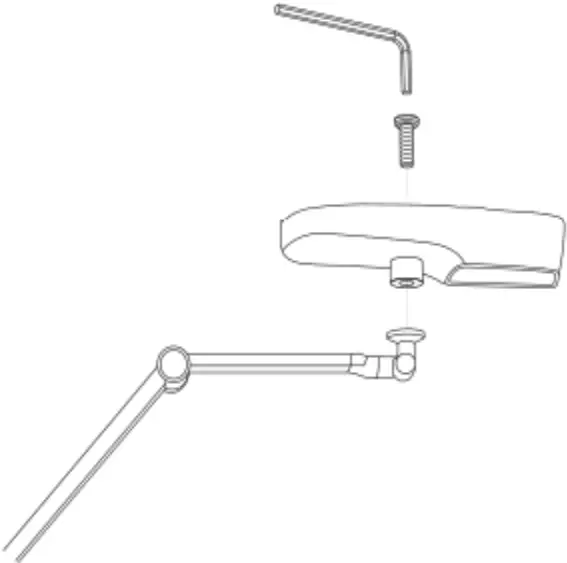

Connecting Holder’s cross to adaptor. screw it.

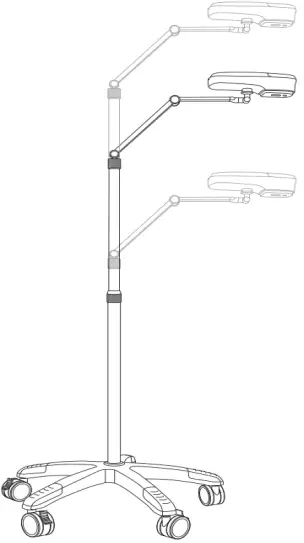

Product Function

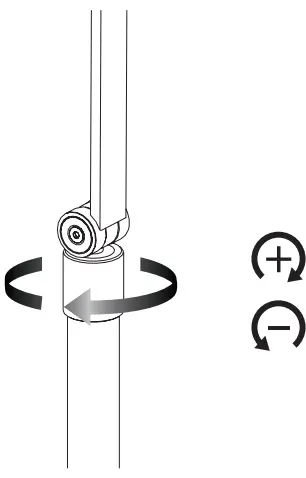

TENSION ADJUSTMENT

Adjust the tension of the equipment through wrench.
