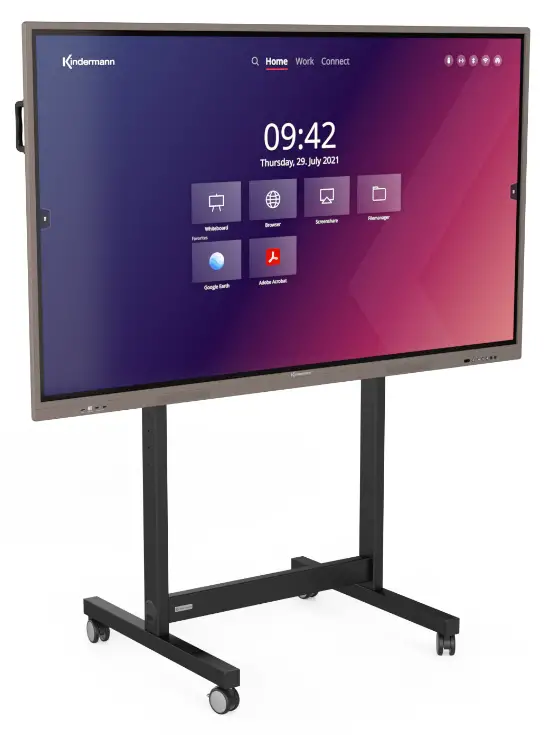

Kindermann 4004 000 200 Mobile Stand
- Please read these instructions carefully and keep them save.
- Assembly shall be done by qualified persons only.
- The display stand may only be used with the flat screen monitors intended for it, in closed, straight, level and dry rooms. The display must not exceed a weight of 100 kg and the size of 86 inches.
- Please also observe the instructions of the display to be mounted!
- During assembly, take care not to overtighten the screws and thereby damage the thread.
- A defective thread must not be used for assembly!
- The screw-sets must be screwed into the thread of the display at least 3-5 turns. Please also note the manufacturer‘s instructions in the documentation of the respective display!
- Due to the geometry of the rolling stand, there is a risk of tripping, during operation and behind it during installation and setup!
- Lay the cables to the device in such a way that they do not pose a risk of injury and cannot be damaged.
- During transport, make sure that the rolling stand does not tip over (risk of injury!), especially when driving over floor sleepers on doors or elevators.
- After placing the display stand at the installation site and before operating it, make sure that the locking devices of the two front swivel castors are fixed to ensure a safe stand.

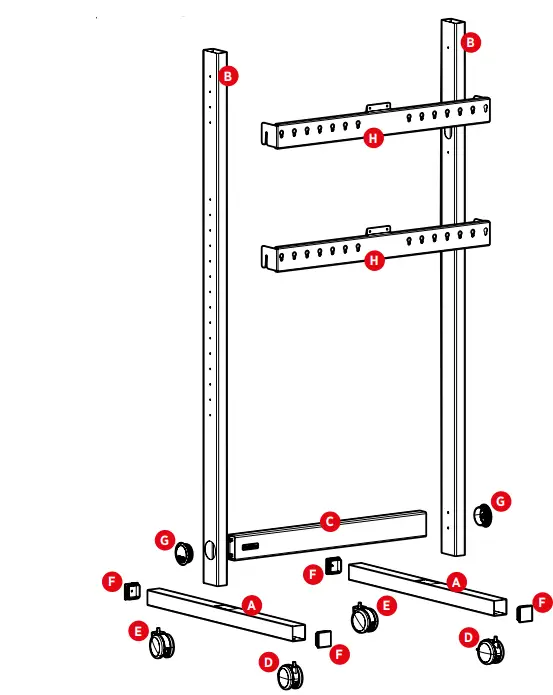

Scope of delivery
- A Base stabilizer
- B Pillar
- C Base cross bar
- D Castor with brake
- E Castor
- F Cap
- G Cable grommet
- H VESA-crossbar
Scope of delivery

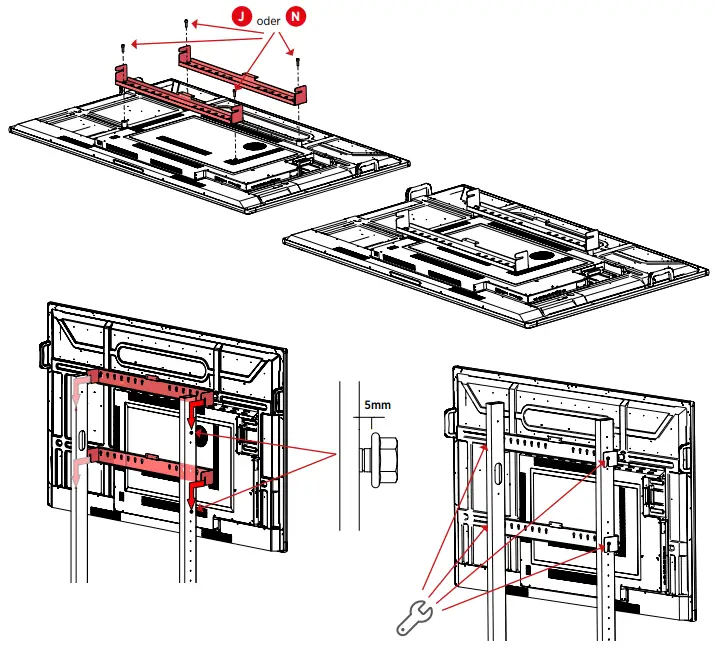

mounting of the display

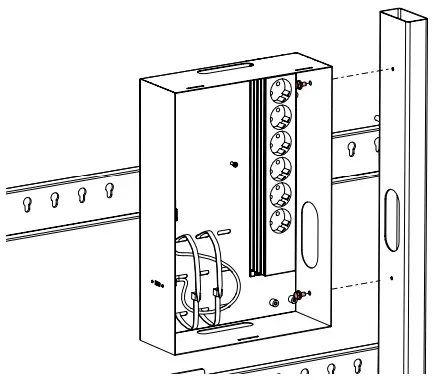

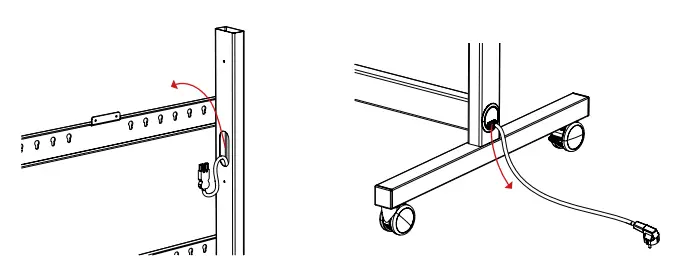

cable mounting
Technical data
| Abmessungen ohne Display (BxHxT) / Dimensions without display (WxHxD) | 84 x 182 x 81 cm |
| Gewicht ohne Display / Weight without display | 21 kg |
| Material – Farbe / Material – colour | steel, powdered black |
| Max. Gewicht Display / max. weight of display | 100 kg |
| Max. Größe Display / max. size of display | 86 Zoll |
| VESA-Standard (BxH) / VESA-Standard (WxH) | 200×200 mm – 800×600 mm |

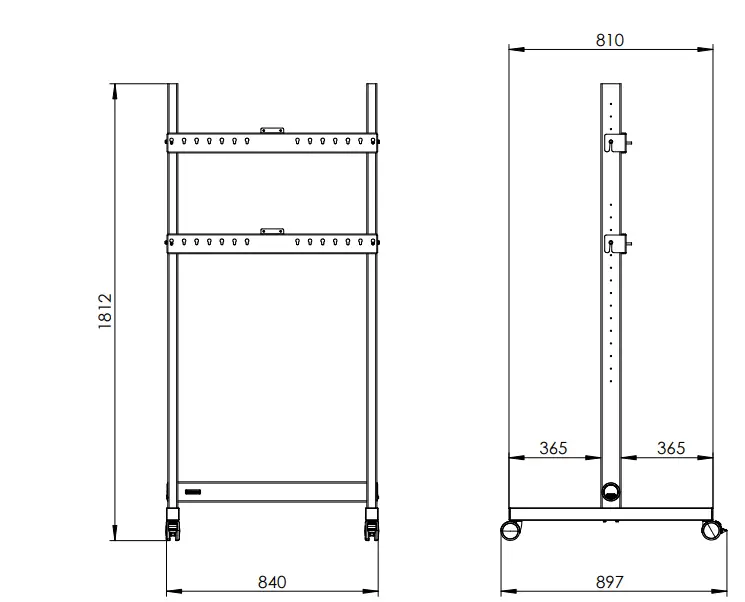

dimensions
suitable accessories
| 4004 000 201 | Technical department |
| 4004 000 202 | Frontshelf |
| 4004 000 203 | Adapter set for DisplayShift 2.0 |
| 4004 000 204 | Equipment rack |
| 4013 000 114 | Camera shelf |
| 8715 000 304 | Soundbar mount |
Accessories

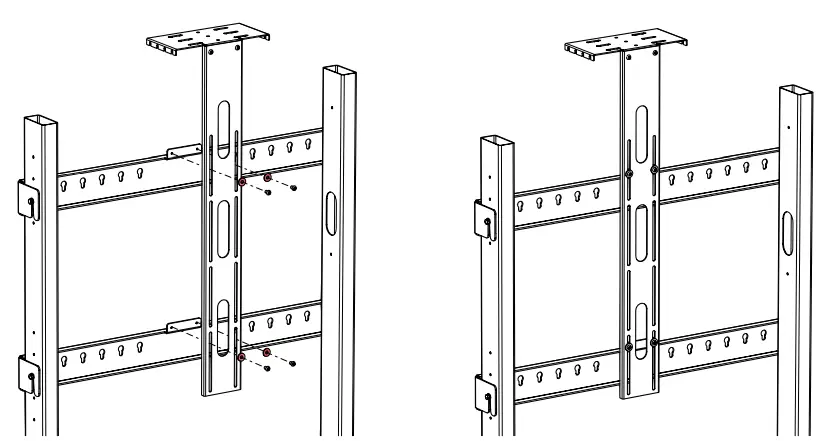

mounting technical department
Screws and washers supplied with 4004 000 201
Assembly example with Klick&Show K-40 (accessories)
mounting Camera shelf

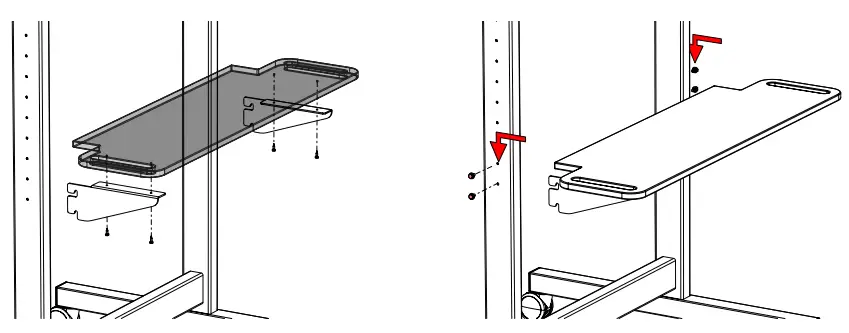

mounting shelf
Screws and washers supplied with 4004 000 20

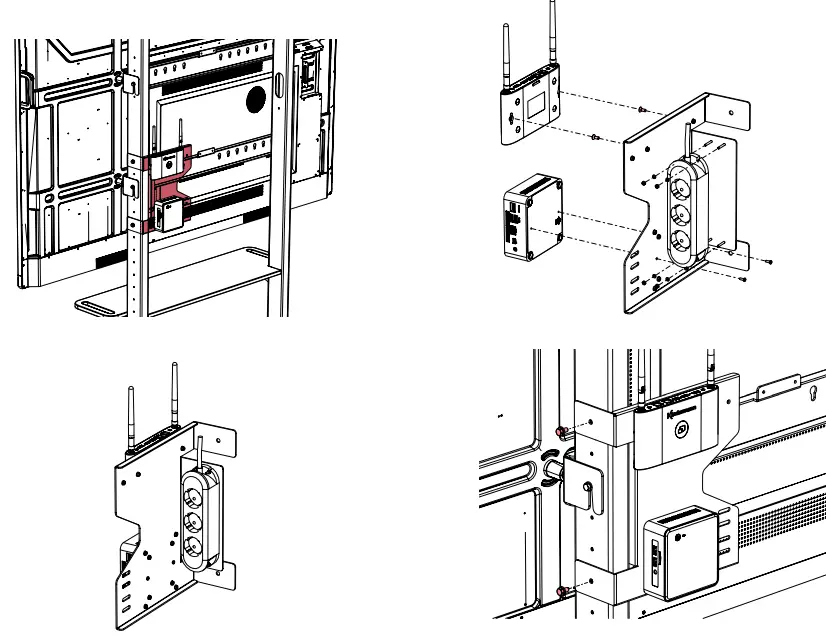

technic holder
Screws supplied with 4004 000 204
