PROFESSIONAL MEDICAL PRODUCTS
SUPPORTO A ROTELLE

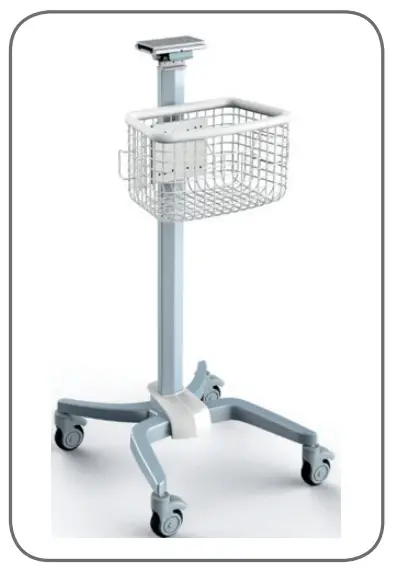

ROLLING STAND
Instructions to User
In order to operate properly and get the best performance, please read these instructions carefully before using this rolling stand. This manual describes the installation, operation, maintenance, transportation, and storage. Please keep this manual for future reference!
Features

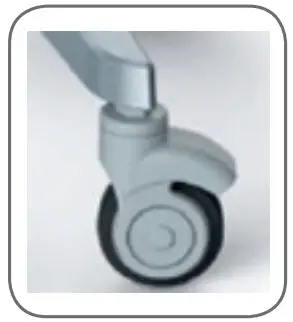

 | Silent casters with brakes |

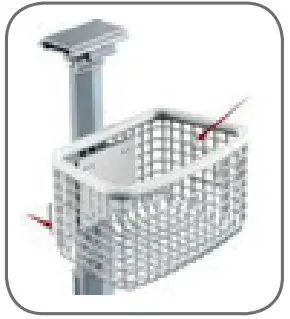

 | Basket with handle and hook |

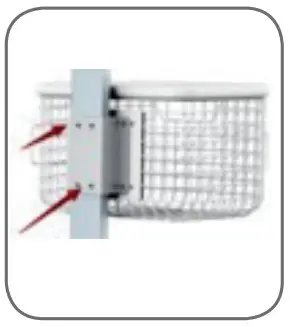

 | Install Basket |

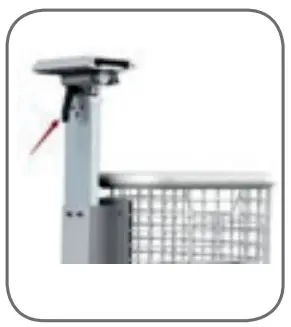

 | Elevation angle adjustable |

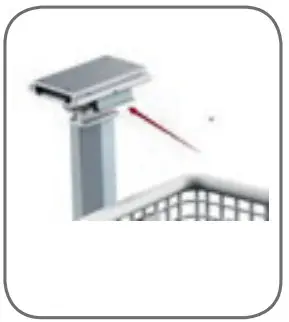

 | Mounting plate lock |
Intended Use
This product is intended for transferring equipment such as Patient Monitor, ECG Monitor, etc. to help doctors work conveniently and effectively.

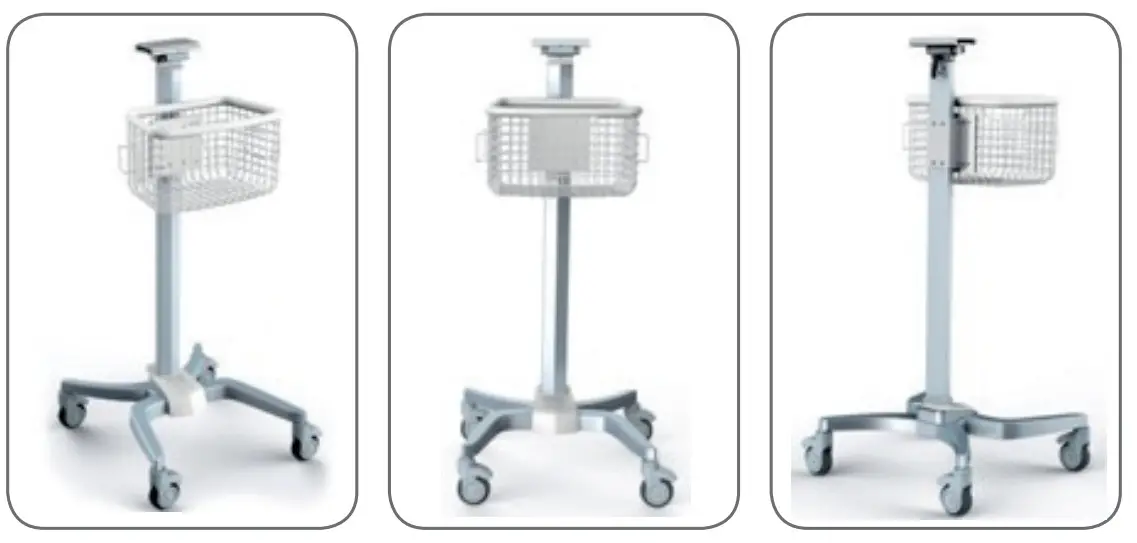

3 Photos
Cleaning and Disinfection
- Remove the monitor before cleaning the rolling stand.
- It is recommended to clean the rolling regularly. Only a non-corrosive cleaner is permitted. Dilute cleaning products as per the manufacturer’s instructions.
- Use a cloth with alcohol or your choice of cleaner to wipe the surface of the rolling stand, and dry it with a clean cloth or leave it to air-dry.
Dimensions and weight
Dimension: 503*461*H1050 mm
Weight (including package): 10KG
Dimension of the package: 780*470*H185mm
Transportation and storage
- Transportation
The rolling stand should be left in original packaging when being transported and kept dry and avoid bumping. - Storage conditions:
The rolling stand should be kept in a dry and well-ventilated room free from dust and corrosive gases. If the stand is being stored in original packaging, stacking height should not exceed four layers, the warehouse should be room temperature.
Packing List
| Base kit *1 | Mounting plate*1 | Support pillar *1 |
| Castor *4 | Installation tool *1 |
Troubleshooting
| Problem | Analysis | Solution |
| Support pillar shakes | Fixing screws on the base may be loose | Check the screws and tighten if required |
| Elevation angle can be adjusted | Adjusting screws on the handle are too loose/tight | Adjust the tightness according to the requirements |
Installation

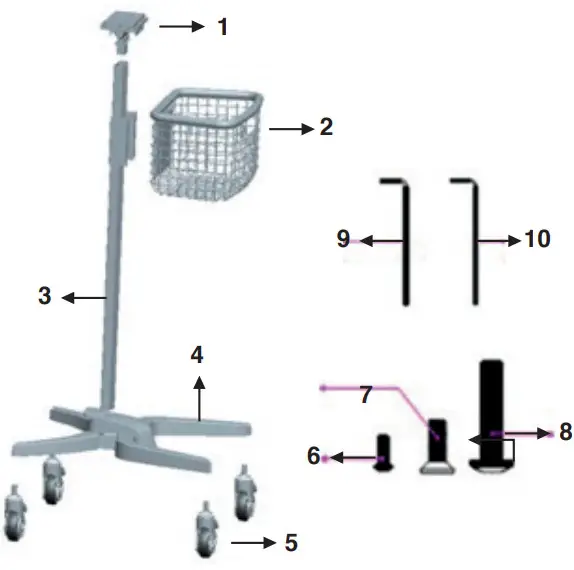

Part List
| No | Part Name | Qty |
| 1 | Mounting plate | 1 |
| 2 | Storage Basket | 1 |
| 3 | Support Pillar | 1 |
| 4 | Base | 1 |
| 5 | Castor | 4 |
| 6 | Screw M4-10/12 | 8 |
| 7 | Screw M5-16 | 5 |
| 8 | Screw M6-25 | 4 |
| 9 | 3mm spanner | 1 |
| 10 | 4mm spanner | 1 |

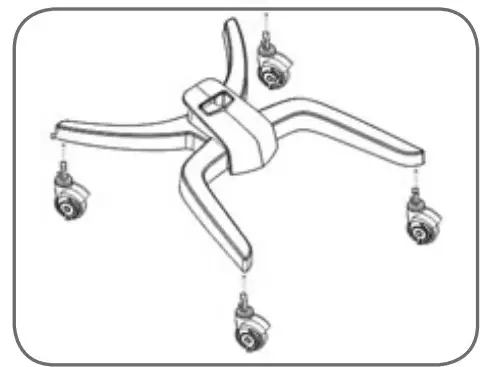

Step 1:
Fix four castors into the related holes on the base.
Step 2:
Insert the support pillar into the base and secure it with M6-25 screws.

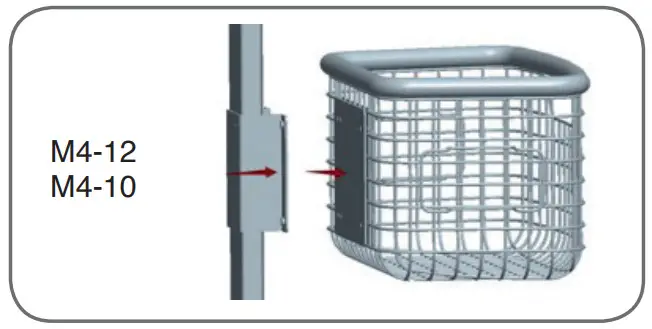

Step 3
Assemble the storage basket, and secure with M4-10 and M4-12 screws according to the following pictures

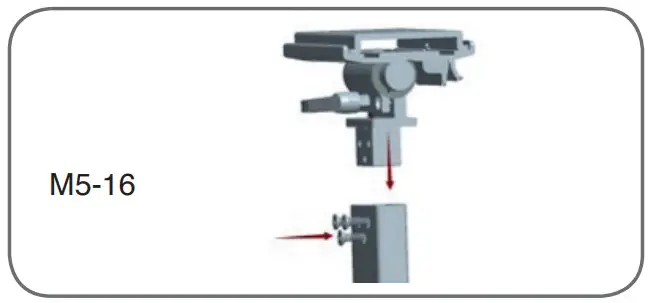

Step 4
Fix the bracket into the support pillar and secure it with M5-16 screws.
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
35148 / 8030421049
Importato da / Imported by:
Gima S.p.A.
Via Marconi, 1 – 20060 Gessate (MI) Italy
[email protected] – [email protected]
www.gimaitaly.com
Made in China
M35148-M-Rev.1-09.20
