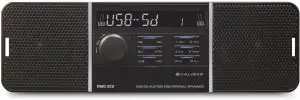

CALIBER RMD 213 USB SD Aux Car Radio User Guide

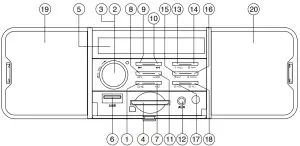

Product Overview
| Key | System | Tuner | MP3/WMA | |||
| Short press | long press | Short press | long press | Short press | long press | |
| 1 | Power / ACC logic | Power OFF | Mute | Mute | ||
| 2 | Rotary Volume | |||||
| 3 | Menu (audio) | Menu (system) | ||||
| 4 | SD slot | |||||
| 5 | LCD display | |||||
| 6 | USB port | |||||
| 7 | Mode | Mode | Mode | |||
| 8 | Band | Display | ||||
| 9 | Manual down | Seek down | Track down | fast backward | ||
| 10 | Manual up | Seek up | Track up | fast forward | ||
| 11 | Scan | |||||
| 12 | 3,5mm AUX In Jack | |||||
| 13 | M1 | Store M1 | Play/Pause | |||
| 14 | M2 | Store M2 | Repeat | |||
| 15 | M3 | Store M3 | Intro | |||
| 16 | M4 | Store M4 | Shuffle | |||
| 17 | M5 | Store M5 | Folder down | |||
| 18 | M6 | Store M6 | Folder up | |||
| 19 | Internal speaker left | |||||
| 20 | Internal speaker right | |||||
| Description of the functions | |
| Power | Power function to activate or deactivate the unit. |
| ACC Logic | After shutdown by turning OFF the ignition, push the power button once and to start the ‘1 hour play mode’ (auto. OFF after 1 hour). |
| Band | Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3 |
| TA | TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (SD,USB, etc.) it will automatically interrupt the SD/USB and give the information, after that it automatically switches back to the selected mode |
| Manual up/down | Press to move the radio frequency number up/down step by step. Long press for automatic search. |
| Menu (system) | Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions: TA ON/OFF > AF ON/OFF > EQ OFF/FLAT/CLASSIC/ROCK/POP > AV VOL > STEREO/MONO > LOUD ON/OFF > SPK (internal speakers) ON/OFF > DX/LOCAL > CT (clock adjustment) |
| Menu (audio) | The Audio menu button gives you the possibility to adjust your sound system with the following options: Balance and Fader. |
| Mode | The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed. |
| Rotary volume | This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears. |
| M1-M6 | These are the preset stations where you can store your favorite radio stations if in tuner mode. |
| Pause/Play | This button allows you in USB or SD mode to play or to pause the music. |
| Repeat | Repeat will play a selected song or album continuously. Available in USB and SD mode. |
| Shuffle | Shuffle will play all the songs random. Available in USB and SD mode. |
| File down/up | In MP3 mode press this button to go up or down one folder. |
| Track down/up | In MP3 mode press this button to go up or down one track |
| fast forward/backward | Long press to fast forward/backward. |
| 3,5mm AUX jack in | To connect an external audio system. |
| USB poort | When inserting a USB stick the unit will switch to USB mode. |
| SD card input | When inserting a SD card the unit will switch to SD mode. (Max 16GB card) |
| Reset | Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default. |
WARNING
Points to observe for safe usage
- Read this manual carefully before using this disc and the system components. They contain instructions on how to use this product in a safe and effective manner. Caliber Europe BV cannot be responsible for problems resulting from failure to observe the instructions in this manual.
WARNING
This symbol means important instructions. Failure to heed them can result in injury or material property damage.
Safety Instructions
- Do not operate any function that takes your attention away from safely driving your vehicle. Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result In an accident.
- Keep the volume at a level where you can still hear outside noises while driving. Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals Wen crossings, etc.) can be dangerous and may result In an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.
- Do not disassemble or after.
Doing so may result in an accident, fire or electric shock. - Use only in cars with a 12V volt negative ground. (Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.
- Keep small objects such as screws out of the reach of children. Swallowing them may result in serious injury. If swallowed. consult a physician immediately.
- Use the correct ampere rating when replacing fuses. Failure to do so may result in fire or electric shock.
- Do not block vents or radiator panels. Doing so may cause heat to build up inside and may result in fife.
- Use this product for mobilo 12V applications. Use for other than its designed application may result in fire. electric shock or other injury.
- Halt use Immediately if a problem appears. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Caliber Europe BV dealer or the nearest Caliber Europe BV Service Centre for repairing.
- Product cleaning.
Use a soft dry cloth for periodic cleaning of the product. For more severe stains. please dampen the cloth with water only. Anything else has the Chance of dcsolving the paint or damaging the plastic. - Temperature.
Be sure the temperature inside the vehicle is between +45°C (+113°F) and O’C (+32’F) before turn-ing your unit on. - Maintenance.
If you have problems, do not attempt to repair the unit yourself. Return it to your Caliber Europe BV dealer or the nearest Caliber Europe BV Service Station for servicing.
