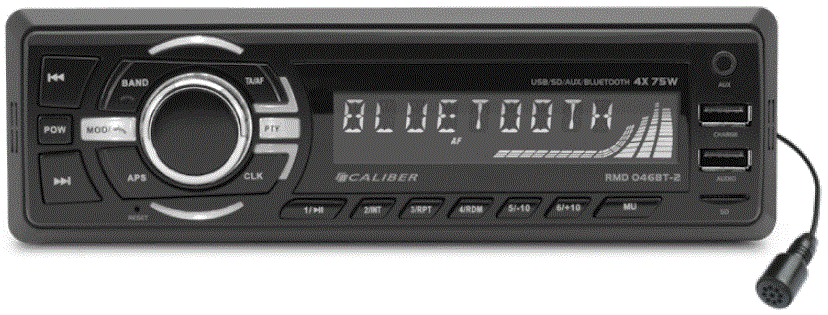

caliber rmd046bt-2 Car radio Bluetooth 1 DIN

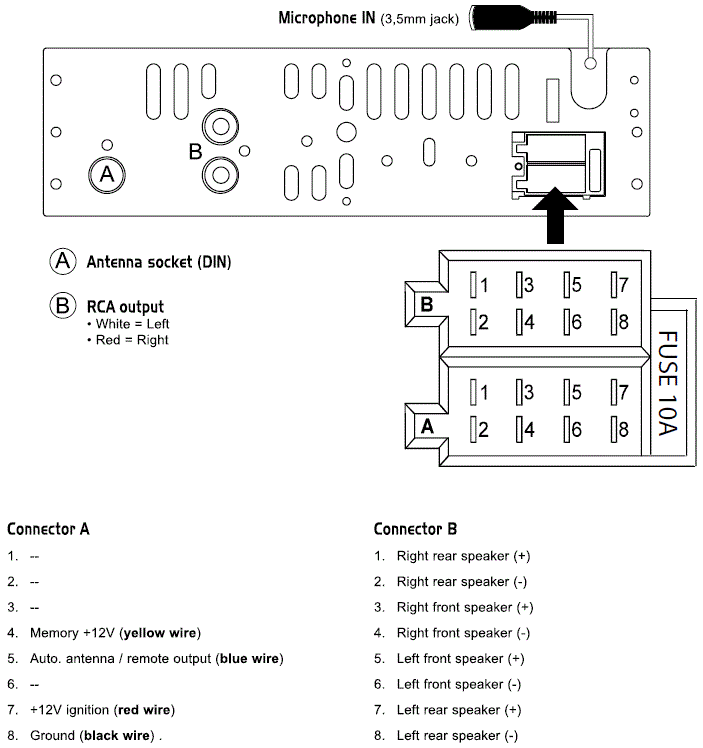

WIRING DIAGRAM

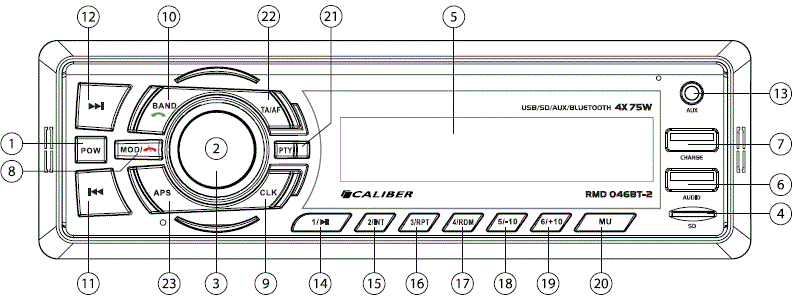

| Key | System | Tuner | MP3/WMA | Bluetooth | |||
| Short press | long press | Short press | long press | Short press | long press | Short press | |
| 1 | Power | Power off | |||||
| 2 | Rotary volume | ||||||
| 3 | Menu (audio) | OK | |||||
| 4 | Micro SD card input | ||||||
| 5 | LCD display | ||||||
| 6 | USB port (audio input • MP3/WMA) | ||||||
| 7 | USB port (5V charge output) | ||||||
| 8 | Mode | Mode | Mode | End call / reject | |||
| 9 | Clock | Adjust clock | |||||
| 10 | Band | Answering call | |||||
| 11 | Manual down | Seek down | Track down | fast backward | Track down | ||
| 12 | Manual up | Seek up | Track up | fast forward | Track up | ||
| 13 | 3,5mm AUX In Jack | ||||||
| 14 | M1 | Store M1 | Play/Pause | Play/Pause | |||
| 15 | M2 | Store M2 | Intro | ||||
| 16 | M3 | Store M3 | Repeat | ||||
| 17 | M4 | Store M4 | Shuffle | ||||
| 18 | M5 | Store M5 | -10 tracks | ||||
| 19 | M6 | Store M6 | +10 tracks | ||||
| 20 | Mute | Mute | |||||
| 21 | PTY | ||||||
| 22 | TA | AF | |||||
| 23 | APS | ||||||
| Description of the functions | |
| Power | Power function to activate or deactivate the unit. |
| Band | Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3 |
| Manual up/down | Short press to move the radio frequency number up/down step by step. |
| Seek up/down: | Long press to search automatically to the next radio station. |
| Audio Menu | The Audio menu button gives you the possibility to adjust your sound system with the following options: Bass, Treble, Balance, Fader, Loud, EQ, DX/LOCAL and Stereo/mono. These options can be used to fine tune your sound. |
| Mode | The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed. |
| AF | In tuner mode it will automatically store the strongest stations. Note: all previous stored stations are lost. |
| Rotary volume | This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears. |
| M1-M6 | These are the preset stations where you can store your favorite radio stations if in tuner mode. |
| Pause/Play | This button allows you in USB or Micro SD mode to play or to pause the music. |
| Intro (INT) | Intro will play 10 seconds of each song on the USB or Micro SD. If the preferred song is playing, push again and it will play that song. |
| Repeat (RPT) | Repeat will play a selected song or album continuously. Available in USB and Micro SD mode. |
| Shuffle (RMD) | Shuffle will play all the songs random. Available in USB and Micro SD mode. |
| Track down/up | In MP3 mode press this button to go up or down one track |
| fast forward/backward | Long press to fast forward to the USB or Micro SD. |
| 3,5mm AUX jack in | To connect an external audio system. |
| USB poort | When inserting a USB stick the unit will switch to USB mode. (Max 32GB) |
| Micro SD card input | When inserting a Micro SD card the unit will switch to Micro SD mode. (Max 32GB card) |
| Reset | Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default. |
| Bluetooth | Open Bluetooth by pressing the “MODE” button |
| Pairing | Activate Bluetooth on your mobile phone, and search for available devices. Select “RMD046BT-2 CALIBER”, password “0000” (if necessary). If succesfull “BT ON” is displayed, if not “NO CON”. The unit will go back to the previous mode. |
| Reconnect | The unit will normally auto-reconnect. |
| Reject incomming call | Press (7) button if you not wish to answer the call, and return to normal playing mode. |
WARNING
Points to observe for safe usage
- Read this manual carefully before using this system. They contain instructions on how to use this product in a safe and effective manner. Caliber Europe B.V. cannot be responsible for problems resulting from failure to observe the instructions in this manual.
- This symbol means important instructions. Failure to heed them can result in injury or material property damage.
- Do not operate any function that takes your attention away from safely driving your vehicle.
- Keep the volume at a level where you can still hear outside noises while driving .
- Listening at loud volume levels in a car may also cause hearing damage.
- Do not disassemble or alter.
- This device Is designed for mobile 12V applications and should also be used as such.
- Use only in cars with a 12V volt negative ground.
- Use the correct ampere rating when replacing fuses.
- Use for other than its designed application may result in fire, electric shock or other injury .
- Keep small objects such as screws out of the reach of children.
- Do not block vents or radiator panels.
Maintenance
When there is a problem, turn the unit immediately off and contact your authorized Caliber dealer .
Product cleaning
Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic .
Temperature
Be sure the temperature inside the vehicle is between O”C (+32″F) and +45″C (+113″F) before turning your unit on.
