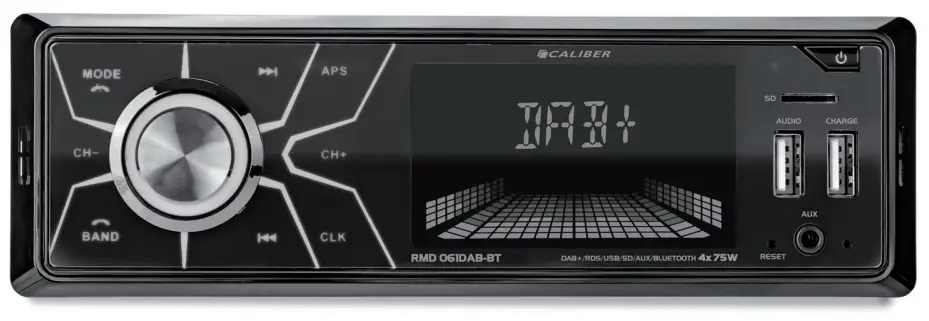

CALIBER RMD 061DAB-BT DAB+ Bluetooth Car Radio

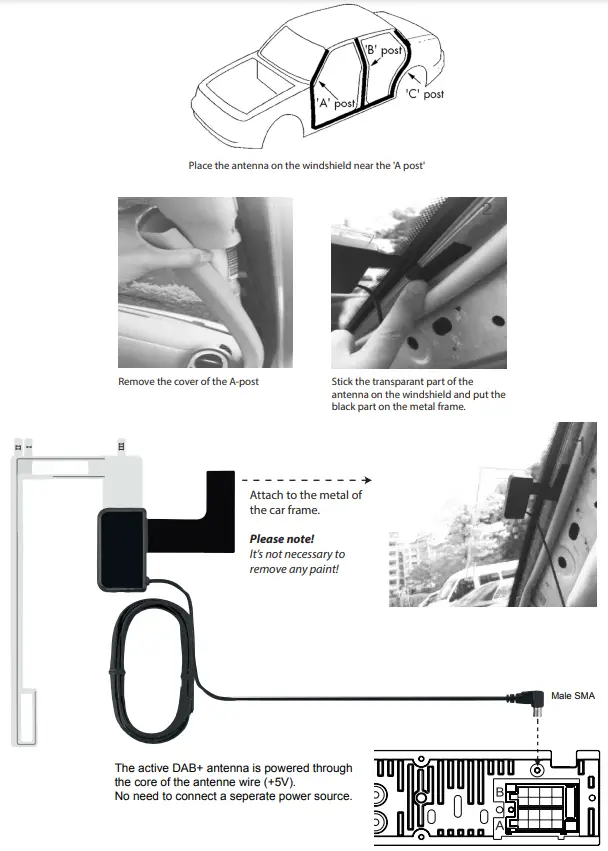

DAB ANTENNA INSTALLATION

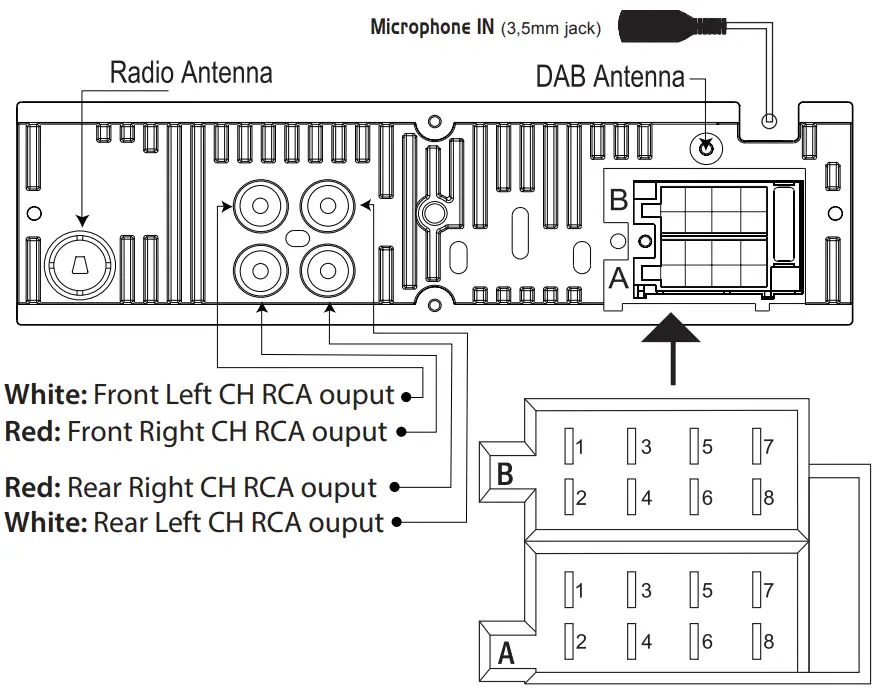

RMD WIRING DIAGRAM
Connector A
- —
- —
- —
- Memory +12V (yellow wire)
- Remote +12V output (blue wire)
- —
- +12V ignition (red wire)
- Ground (black wire)
Connector B
- Right rear speaker (+)
- Right rear speaker (-)
- Right front speaker (+)
- Right front speaker (-)
- Left front speaker (+)
- Left front speaker (-)
- Left rear speaker (+)
- Left rear speaker (-)
RMD SPECIFICATIONS
General:
Power supply: 12V DC neg. ground
Max power output: 75Wx4 channels
RMS power output: 20Wx4 channels (4Ω 10% T.H.D.)
Suitable speaker impedance: 4-8 ohm
Fuse: 10A
Dimensions (WxDxH): 190x133x59mm (outer sizes) 178x108x50mm (built-in part)
Radio:
FM Stereo Radio
Frequency range: 87.5-108.0 MHz (Europe)
Signal/noise ratio: 50dB
Radio sensitivity: 10dB
DAB Stereo Radio
Frequency range: 174 ~ 240MHz
Antenna type: Screen mount / male SMA connector / active (with +5V phantom power source)
USB / SD:
Frequency response: 20Hz-20KHz
Signal/noise ratio: >50dB
T.H.D: <3% (1KHz)
USB charge output: 5V, max. 1.1A
Transmission
Bluetooth Freq range: 2402-2480 Mhz
Max e.r.p: <100mW/20dBm
Note:
Specifications and the design are subject to change without notice due to improvements in technology. We are continuously improving/updating our products and product information. It’s therefore possible that there is a slight difference between the description in this manual to the operation of the product. If something is different or not clear; always check our website for the most current version.

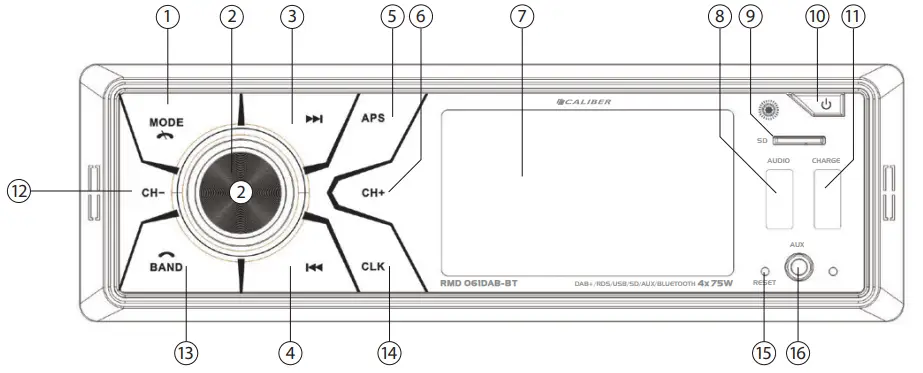

RMD 061DAB-BT
| Key | System | Tuner | MP3/WMA | Bluetooth | |||
| Short press | long press | Short press | long press | Short press | long press | Short press | |
| 1 | Mode | Mode | Mode | End call / reject | |||
| 2 | Rotary volume / Light mode (press) | ||||||
| 3 | Manual up | Seek up | Track up | fast forward | Track up | ||
| 4 | Manual down | Seek down | Track down | fast backward | Track down | ||
| 5 | APS | ||||||
| 6 | Preset Channel up | ||||||
| 7 | LCD display | ||||||
| 8 | USB port for MP3 playback (32GB max.) | ||||||
| 9 | Micro SD card reader (32GB max.) | ||||||
| 10 | Power ON | Power OFF | Mute | Power OFF | Mute | Power OFF | Mute |
| 11 | USB charge port (5V charge output) | ||||||
| 12 | Preset Channel Down | ||||||
| 13 | Band | Answering call | |||||
| 14 | Clock | Set Clock Time | Clock | Set Clock Time | Clock | Set Clock Time | Clock |
| 15 | Reset | ||||||
| 16 | AUX-in for optional wired connection | ||||||
Description
| Description of the functions | |
| Power | Power function to activate or deactivate the unit. |
| Band | Band selection allows you to select different reception bands, f.i. FM0~FM9, DAB1, DAB2, DAB3 |
| Manual up/down | Short press to move the radio frequency number up/down step by step. |
| Seek up/down: | Long press to search automatically to the next radio station. |
| Audio Menu | The Audio menu button gives you the possibility to adjust your sound system with the following options: Bass, Treble, Balance, Fader, Loud, EQ, DX/LOCAL and Stereo/mono. These options can be used to fine tune your sound. |
| Mode | The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed. |
| AF | In tuner mode it will automatically store the strongest stations. Note: all previous stored stations are lost. |
| Rotary volume | This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears. |
| M1-M6 | These are the preset stations where you can store your favourite radio stations if in tuner mode. |
| Pause/Play | This button allows you in USB or Micro SD mode to play or to pause the music. |
| Intro (INT) | Intro will play 10 seconds of each song on the USB or Micro SD. If the preferred song is playing, push again and it will play that song. |
| Repeat (RPT) | Repeat will play a selected song or album continuously. Available in USB and Micro SD mode. |
| Shuffle (RMD) | Shuffle will play all the songs random. Available in USB and Micro Micro SD mode. |
| Track down/up | In MP3 mode press this button to go up or down one track |
| fast forward/backward | Long press to fast forward to the USB or Micro SD. |
| 3,5mm AUX jack in | To connect an external audio system. |
| USB poort | When inserting a USB stick the unit will switch to USB mode. (Max 32GB) |
| SD card input | When inserting a Micro SD card the unit will switch to Micro SD mode. (Max 32GB card) |
| Reset | Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default. |
| Bluetooth | Open Bluetooth by pressing the “MODE” button |
| Pairing | Activate Bluetooth on your mobile phone, and search for available devices. Select “RMD061DAB-BT_CALIBER”, password “0000” (if necessary). If succesfull “BT ON” is displayed, if not “NO CON”. The unit will go back to the previous mode. |
| Reconnect | The unit will normally auto-reconnect. |
| Reject incoming call | Press (1) button if you not wish to answer the call, and return to normal playing mode. |
RMD PRECAUTIONS
WARNING
Points to observe for safe usage
- Read this manual carefully before using this system. They contain instructions on how to use this product in a safe and effective manner. Caliber Europe B.V. cannot be responsible for problems resulting from failure to observe the instructions in this manual.
WARNING
This symbol means important instructions. Failure to heed them can result in injury or material property damage.
- Do not operate any function that takes your attention away from safely driving your vehicle.
- Keep the volume at a level where you can still hear outside noises while driving.
- Listening at loud volume levels in a car may also cause hearing damage.
- Do not disassemble or alter.
- This device is designed for mobile 12V applications and should also be used as such.
- Use only in cars with a 12V volt negative ground.
- Use the correct ampere rating when replacing fuses.
- Use for other than its designed application may result in fire, electric shock or other injury.
- Keep small objects such as screws out of the reach of children.
- Do not block vents or radiator panels.
- Maintenance.
- When there is a problem, turn the unit immediately off and contact your authorized
- Caliber dealer.
- Product cleaning.
- Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.
- Temperature.
- Be sure the temperature inside the vehicle is between 0°C (+32°F) and +45°C (+113°F) before turning your unit on.
Disposal
Old appliances and/or batteries must not be disposed of with garbage! If the device/battery can not be used anymore, every user is legally obliged to dispose of old appliances and/or batteries separated from the garbage, e.g. at a collection point of his municipality/district. Caliber hereby declares that the item RMD061DAB-BT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU (RED) and 2011/65/EU (ROHS).
